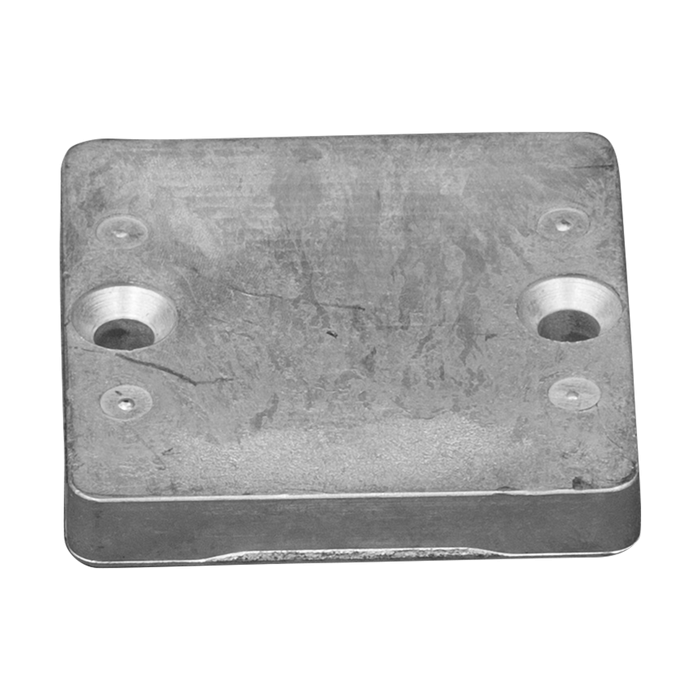

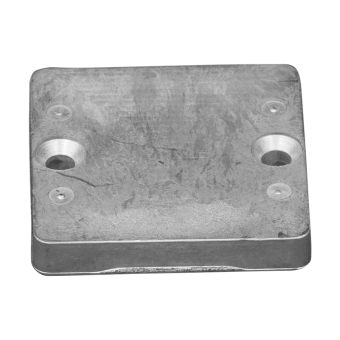

Tecnoseal Square Trim Tab Anode 64x64x10 mm

Name: Tecnoseal Square Trim Tab Anode 64x64x10 mm
SKU: Tecnoseal 00210

ID 1406172

$ 21.07

1-2 weeks delivery time

Item:

Zinc
Magnesium

Tecnoseal 00210 square sacrificial plate anodes are designed for marine trim tab (flap) corrosion protection and are available in zinc and magnesium. Both versions measure 64 × 64 × 10 mm (2.52 × 2.52 × 0.39 in), with two 7 mm (0.28 in) mounting holes spaced 50 mm (1.97 in) centre to centre. The zinc 00210 weighs 0.27 kg (270 g), while the magnesium 00210MG weighs 0.07 kg (70 g). Both share the same mounting dimensions, allowing selection of the appropriate sacrificial anode material for the intended marine installation.

Description
Ask a Question

Tecnoseal 00210 Square Trim Tab Anode 64x64x10 mm – Zinc & Magnesium

The Tecnoseal 00210 series consists of square sacrificial plate anodes available in zinc and magnesium. These anodes are designed for marine trim tabs (flaps), providing a replaceable sacrificial element to help protect compatible metallic components against galvanic corrosion.

Both variants share identical dimensions of 64 × 64 × 10 mm (2.52 × 2.52 × 0.39 in). Each plate features two mounting holes arranged along its centreline, with a centre-to-centre spacing of 50 mm (1.97 in) and a hole diameter of 7 mm (0.28 in).

The TEC-00210 zinc version weighs 0.27 kg (0.60 lbs), while the 00210MG magnesium version weighs 0.07 kg (0.15 lbs). Both use the same mounting geometry.

Key Features

Manufacturer: Tecnoseal
Product Series: 00210
Product Type: Square sacrificial plate anode
Available Materials: Zinc and Magnesium
Application: Marine trim tabs / flaps
Shape: Square plate
Length (l): 64 mm
Width (a): 64 mm
Height (h): 10 mm
Mounting Holes: 2
Hole Spacing (i): 50 mm
Hole Diameter (Ø): 7 mm
Weight: 0.27 kg (Zinc) / 0.07 kg (Magnesium)

Technical Specifications

Parameter	00210	00210MG
Material	Zinc	Magnesium
Length (l)	64 mm	64 mm
Width (a)	64 mm	64 mm
Height (h)	10 mm	10 mm
Hole Spacing (i)	50 mm	50 mm
Hole Diameter (Ø)	7 mm	7 mm
Weight	0.27 kg	0.07 kg
EAN	8033837060338	8052744982953

Available Models

Tecnoseal 00210 – Zinc: Square plate anode, 64 × 64 × 10 mm, weight 0.27 kg (0.60 lbs).
Tecnoseal 00210MG – Magnesium: Square plate anode, 64 × 64 × 10 mm, weight 0.07 kg (0.15 lbs).

Square Plate Design and Mounting

The Tecnoseal 00210 series features a square profile with two mounting holes positioned symmetrically along the central axis. The mounting holes measure 7 mm in diameter and are spaced 50 mm apart, measured between their centres.

Both variants use identical dimensions and mounting arrangements, allowing the sacrificial anode material to be selected without changing the plate geometry.

Choosing the Correct Anode Material

The series is available in two sacrificial anode materials:

Zinc: Zinc anode version for compatible marine cathodic protection systems.
Magnesium: Magnesium anode version for installations requiring magnesium sacrificial anodes.

Material selection should follow the vessel's operating water conditions, existing cathodic protection system and equipment manufacturer's recommendations.

Inspection and Replacement

Sacrificial anodes gradually lose material during service. Inspect the plate periodically and replace it when sufficiently consumed.

Before ordering, verify the 64 × 64 × 10 mm dimensions, 50 mm mounting hole spacing and 7 mm hole diameter against the original component.

Supply: One Tecnoseal 00210 series square sacrificial plate anode in the selected material.
