The Tecnoseal 00212 is a rectangular zinc sacrificial plate anode designed for marine trim tab (flap) applications. It measures 110 mm (4.33 in) in length, 67 mm (2.64 in) in width and 20 mm (0.79 in) in height. The plate features two mounting holes with a diameter of 7.2 mm (0.28 in), spaced 57 mm (2.24 in) centre to centre. Weighing 0.98 kg (2.16 lbs), this zinc anode provides a replaceable sacrificial element for galvanic corrosion protection of compatible marine metallic components.
- Description
- Ask a Question
-

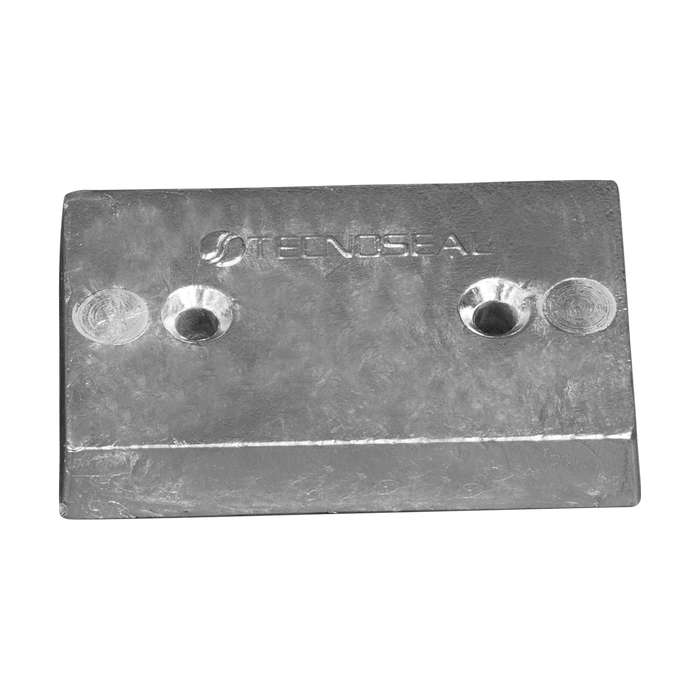

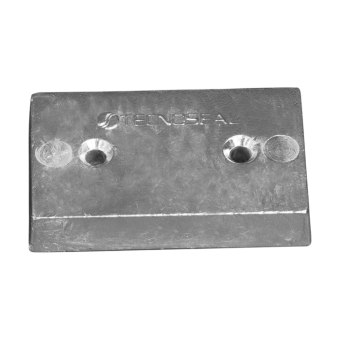

Tecnoseal 00212 Rectangular Trim Tab Zinc Anode 110x67x20 mm
The Tecnoseal 00212 is a rectangular zinc sacrificial plate anode designed for marine trim tabs (flaps). It provides a replaceable zinc component to help protect compatible metallic parts against galvanic corrosion in marine environments.
The anode measures 110 mm (4.33 in) in length, 67 mm (2.64 in) in width and 20 mm (0.79 in) in height. Its rectangular body incorporates two mounting holes arranged along the longitudinal axis, with a centre-to-centre spacing of 57 mm (2.24 in).
Each mounting hole has a specified diameter of 7.2 mm (0.28 in). The Tecnoseal 00212 weighs 0.98 kg (2.16 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00212
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Marine trim tabs / flaps
- Shape: Rectangular plate
- Length (l): 110 mm
- Width (a): 67 mm
- Height (h): 20 mm
- Mounting Holes: 2
- Hole Spacing (i): 57 mm
- Hole Diameter (Ø): 7.2 mm
- Weight: 0.98 kg / 980 g
- EAN: 8033837060352
Technical Specifications
Parameter Metric Imperial Length (l) 110 mm 4.33 in Width (a) 67 mm 2.64 in Height (h) 20 mm 0.79 in Mounting Hole Spacing (i) 57 mm 2.24 in Mounting Hole Diameter (Ø) 7.2 mm 0.28 in Weight 0.98 kg 2.16 lbs Material Zinc – EAN 8033837060352 –
Rectangular Plate Design
The Tecnoseal 00212 features a rectangular plate profile with two mounting holes positioned symmetrically along its longitudinal axis. The holes are spaced 57 mm apart, measured between their centres, and have a diameter of 7.2 mm.
The 110 × 67 × 20 mm dimensions and mounting arrangement should be compared with the existing anode before ordering a replacement.
Marine Corrosion Protection
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.
Suitability depends on the vessel's operating water conditions, existing corrosion protection arrangement and equipment manufacturer's recommendations.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.
Before replacement, verify the 110 × 67 × 20 mm body dimensions, 57 mm mounting hole spacing and 7.2 mm hole diameter against the original component.
Supply: One Tecnoseal 00212 zinc sacrificial plate anode.
-
