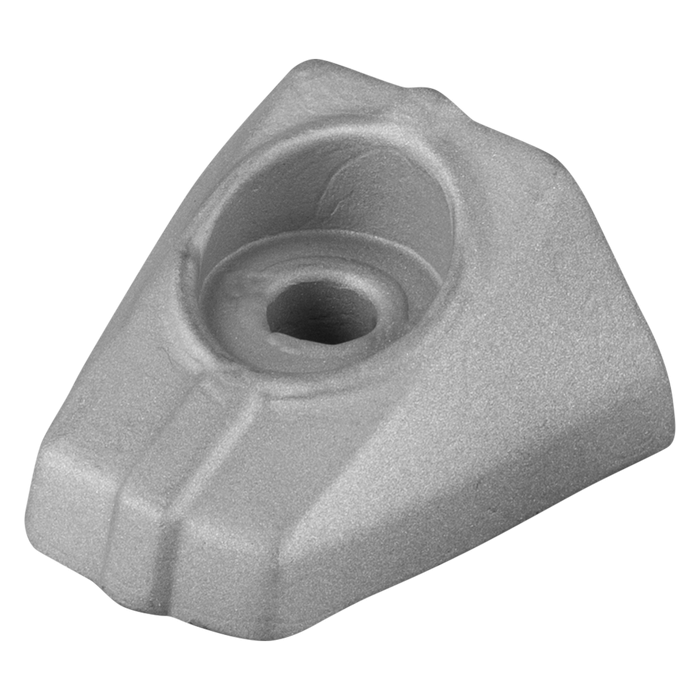

The Tecnoseal 01202 series includes sacrificial block anodes designed for Suzuki DT 4-5HP outboard engines manufactured from 1988 to 2002, replacing OEM part number 55320-98600. Each anode features a tapered body with a recessed mounting hole, measuring 41 mm in length (l), 38 mm in width (a) and 23 mm in height (h). Additional dimensions include l1 = 21 mm, h1 = 8 mm, a mounting recess diameter (Ø) of 18 mm and a through-hole diameter (Ø1) of 7.5 mm. Available in zinc (01202, 0.10 kg), aluminium (01202AL, 0.04 kg) and magnesium (01202MG, 0.03 kg), the series is also listed under Tecnoseal reference 00932.
- Description
- Ask a Question
-

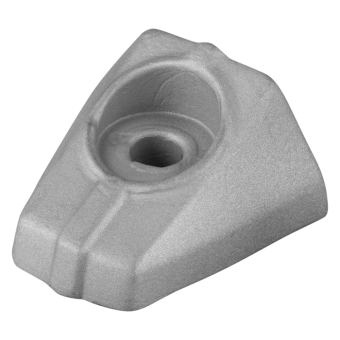

Tecnoseal 55320-98600 Suzuki DT 4-5HP Block Anode 41x38x23 mm
The Tecnoseal 01202 series includes sacrificial block anodes designed for Suzuki DT 4-5HP outboard engines manufactured from 1988 to 2002. These anodes correspond to Suzuki OEM part number 55320-98600 and help protect compatible metallic outboard engine components against galvanic corrosion.
Each anode features a compact tapered block with a recessed central mounting hole. The body measures 41 mm in length, 38 mm in width and 23 mm in maximum height. Additional dimensions include l1 = 21 mm and h1 = 8 mm. The mounting recess has a diameter of 18 mm, while the through-hole measures 7.5 mm in diameter. Three material versions are available with identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Type Outboard Engine Block Anode Engine Manufacturer Suzuki Compatible Engines DT 4-5HP (1988-2002) Suzuki OEM Part Number 55320-98600 Available Materials Zinc, Aluminium, Magnesium Length (l) 41 mm (1.61 in) Dimension l1 21 mm (0.83 in) Width (a) 38 mm (1.50 in) Height (h) 23 mm (0.91 in) Dimension h1 8 mm (0.31 in) Mounting Recess Diameter (Ø) 18 mm (0.71 in) Mounting Hole Diameter (Ø1) 7.50 mm (0.30 in)
Available Variants
Tecnoseal Code Material Weight 01202 Zinc 0.10 kg (0.22 lbs) 01202AL Aluminium 0.04 kg (0.09 lbs) 01202MG Magnesium 0.03 kg (0.07 lbs)
Compatibility and References
- Engine Manufacturer: Suzuki
- Compatible Models: DT 4HP, DT 5HP
- Production Years: 1988-2002
- Application: Outboard Engine Corrosion Protection
- Suzuki OEM Reference: 55320-98600
- Zinc Version: Tecnoseal 01202
- Aluminium Version: Tecnoseal 01202AL
- Magnesium Version: Tecnoseal 01202MG
- Additional Tecnoseal Reference: 00932
Key Features
- Block-shaped sacrificial anode for Suzuki DT 4-5HP outboard engines (1988-2002).
- Available in zinc, aluminium and magnesium.
- Helps protect compatible metallic engine components against galvanic corrosion.
- Compact tapered body with recessed central mounting hole.
- Overall dimensions: 41 x 38 x 23 mm.
- Additional dimensions: l1 = 21 mm and h1 = 8 mm.
- Mounting recess diameter: 18 mm.
- Mounting through-hole diameter: 7.5 mm.
- Same dimensions across all three material versions.
- Replaces Suzuki OEM part number 55320-98600.
-
