ID
1405104
$ 58.05
1-2 weeks delivery time
-
+
The Tecnoseal 01209 is a zinc sacrificial trim tab anode designed for Suzuki DT 115-140HP outboard engines manufactured from 1981 to 2001, corresponding to Suzuki OEM part number 55125-94502. It features a circular mounting base with an integrated vertical steering fin, measuring 98 mm in base diameter (Ø), 59 mm in overall height (h) and 8 mm in base thickness (h1). The central mounting hole measures 11 mm in diameter (Ø1), with a 21 mm mounting recess diameter (Ø2). Weighing 0.33 kg (0.73 lbs), the anode helps protect compatible submerged outboard components against galvanic corrosion.
- Description
- Ask a Question
-

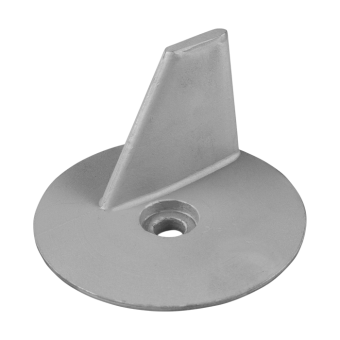

Tecnoseal 55125-94502 Suzuki DT 115-140HP Zinc Trim Tab Anode Ø98 mm
The Tecnoseal 01209 is a zinc sacrificial trim tab anode designed for Suzuki DT 115-140HP outboard engines manufactured between 1981 and 2001. It corresponds to Suzuki OEM part number 55125-94502 and helps protect compatible submerged metallic outboard components against galvanic corrosion.

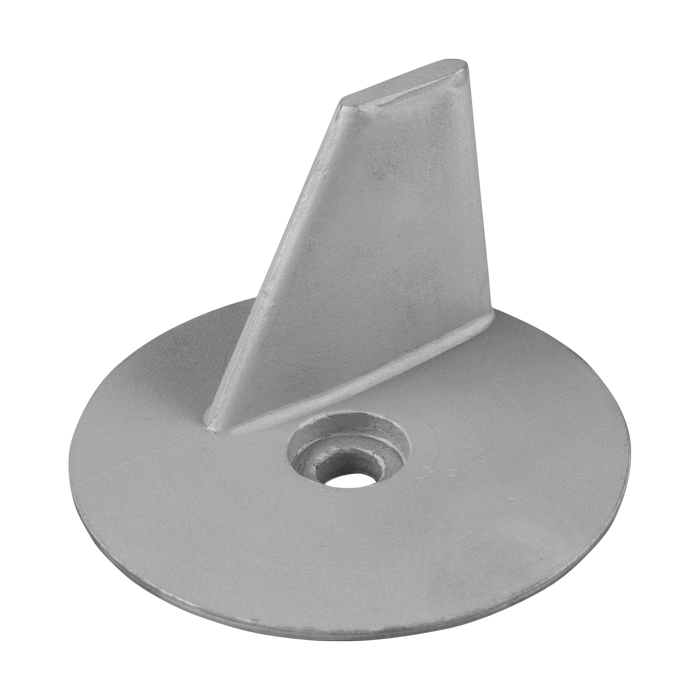

The anode features a circular mounting base with an integrated vertical steering fin. The base measures 98 mm in diameter and 8 mm in thickness, with an overall height of 59 mm including the fin. The central mounting hole has a diameter of 11 mm and a mounting recess diameter of 21 mm. The anode weighs 0.33 kg (0.73 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 01209 Product Type Trim Tab Anode Material Zinc Engine Manufacturer Suzuki Compatible Engines DT 115-140HP Production Years 1981-2001 Suzuki OEM Part Number 55125-94502 Weight 0.33 kg (0.73 lbs) Overall Height (h) 59 mm (2.32 in) Base Thickness (h1) 8 mm (0.31 in) Base Diameter (Ø) 98 mm (3.86 in) Mounting Hole Diameter (Ø1) 11 mm (0.43 in) Mounting Recess Diameter (Ø2) 21 mm (0.83 in)
Compatibility and References
- Engine Manufacturer: Suzuki
- Compatible Engine Range: DT 115-140HP
- Production Years: 1981-2001
- Application: Outboard Engine Trim Tab
- Suzuki OEM Reference: 55125-94502
- Tecnoseal Part Number: 01209
Key Features
- Zinc sacrificial trim tab anode for Suzuki DT 115-140HP outboard engines (1981-2001).
- Helps protect compatible submerged metallic outboard components against galvanic corrosion.
- Circular mounting base with integrated vertical steering fin.
- Base diameter: 98 mm.
- Overall height: 59 mm.
- Base thickness: 8 mm.
- Central mounting hole diameter: 11 mm.
- Mounting recess diameter: 21 mm.
- Weight: 0.33 kg (0.73 lbs).
- Corresponds to Suzuki OEM part number 55125-94502.
-
