Tecnoseal 55320-95310 Suzuki DF/DT Small Block Engine Anode 40x30x12 mm

ID 1405088

$ 12.94

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
30 g
20 g

The Tecnoseal 01204 series includes sacrificial small block anodes for Suzuki DF 9.9-300HP (1997-2008) and DT 9.9-200HP (1988-2000) outboard engines. These anodes correspond to Suzuki OEM references 55320-95310 (95311) and 55321-93J00. Each rectangular anode measures 40 mm in length, 30 mm in width and 12 mm in height, with a 17 mm mounting recess diameter and a 6.50 mm through-hole diameter. Available in zinc (01204, 80 g), aluminium (01204AL, 30 g) and magnesium (01204MG, 20 g), the anodes help protect compatible engine components against galvanic corrosion. Additional Tecnoseal reference: 00930.

Description
Ask a Question

Tecnoseal 55320-95310 Suzuki DF/DT Small Block Engine Anode 40x30x12 mm

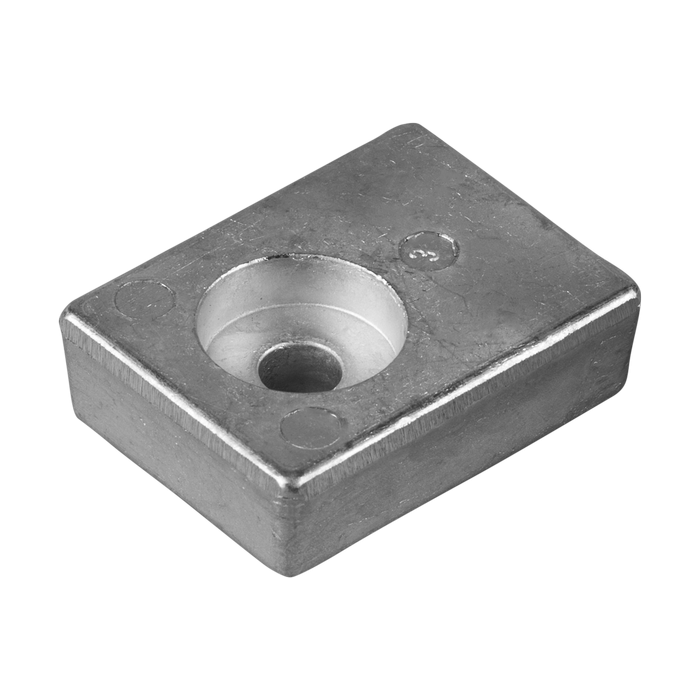

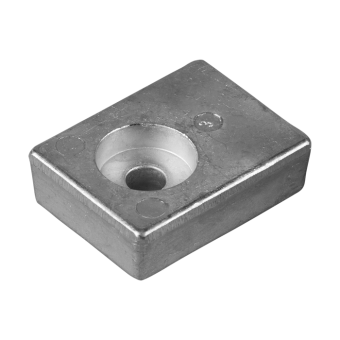

The Tecnoseal 01204 series includes sacrificial small block anodes designed for Suzuki DF and DT outboard engines. These compact rectangular anodes help protect compatible metallic engine components against galvanic corrosion. They correspond to Suzuki OEM part numbers 55320-95310, 55320-95311 and 55321-93J00.

Each anode measures 40 mm in length, 30 mm in width and 12 mm in height. Its recessed central mounting hole has a 17 mm counterbore diameter and a 6.50 mm through-hole diameter. The series is available in zinc, aluminium and magnesium, with identical dimensions across all three versions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Small Block Engine Anode
Engine Manufacturer	Suzuki
Compatible DF Engines	9.9-300HP (1997-2008)
Compatible DT Engines	9.9-200HP (1988-2000)
Material Options	Zinc, Aluminium, Magnesium
Length (l)	40 mm (1.57 in)
Width (a)	30 mm (1.18 in)
Height (h)	12 mm (0.47 in)
Mounting Recess Diameter (Ø)	17 mm (0.67 in)
Mounting Hole Diameter (Ø1)	6.50 mm (0.26 in)

Available Variants

Tecnoseal Code	Material	Weight	Osculati Reference
01204	Zinc	0.08 kg (0.18 lbs)	43.903.20
01204AL	Aluminium	0.03 kg (0.07 lbs)	43.903.21
01204MG	Magnesium	0.02 kg (0.04 lbs)	43.903.22

Compatibility and References

Engine Manufacturer: Suzuki
DF Engine Range: 9.9-300HP (1997-2008)
DT Engine Range: 9.9-200HP (1988-2000)
Suzuki OEM References: 55320-95310, 55320-95311, 55321-93J00
Zinc Version: Tecnoseal 01204 / Osculati 43.903.20
Aluminium Version: Tecnoseal 01204AL / Osculati 43.903.21
Magnesium Version: Tecnoseal 01204MG / Osculati 43.903.22
Additional Tecnoseal Reference: 00930

Key Features

Sacrificial small block anode for Suzuki DF and DT outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible metallic engine components against galvanic corrosion.
Compact rectangular design with recessed central mounting hole.
Overall dimensions: 40 x 30 x 12 mm.
Mounting recess diameter: 17 mm.
Mounting through-hole diameter: 6.50 mm.
Identical dimensions across all three material versions.
Corresponds to Suzuki OEM references 55320-95310, 55320-95311 and 55321-93J00.
Cross-referenced with Osculati 43.903.20, 43.903.21 and 43.903.22 according to anode material.
