$ 9.58
1-2 weeks delivery time
-
+

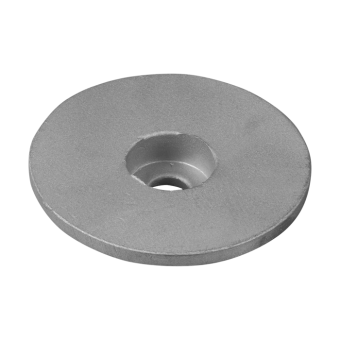

The Tecnoseal 01206 is a zinc sacrificial gearcase anode designed for Suzuki 9.9HP and 15HP outboard engines, replacing OEM part number 55321-93900. It features a circular plate with a recessed central mounting hole, measuring 49 mm in outer diameter (Ø) and 8.50 mm in height (h). The mounting recess diameter (Ø1) is 15 mm, and the through-hole diameter (Ø2) is 7 mm. Weighing 0.05 kg (0.11 lbs), the anode helps protect compatible gearcase components against galvanic corrosion. Additional Tecnoseal reference: 00934.
- Description
- Ask a Question
-
Tecnoseal 55321-93900 Suzuki 9.9-15HP Zinc Gearcase Anode Ø49 mm
The Tecnoseal 01206 is a zinc sacrificial gearcase anode designed for Suzuki 9.9HP and 15HP outboard engines. It corresponds to Suzuki OEM part number 55321-93900 and helps protect compatible metallic gearcase components against galvanic corrosion.

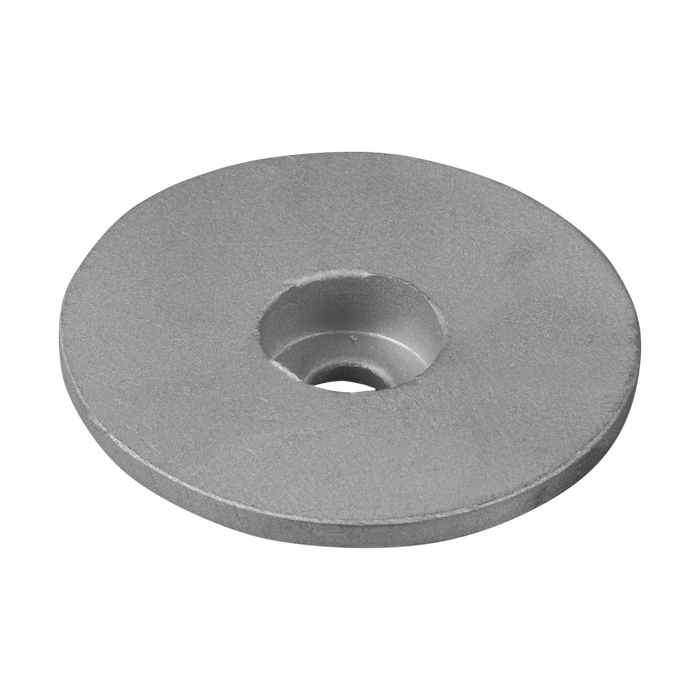

The anode features a circular plate-shaped body with a recessed central mounting hole. It measures 49 mm in outer diameter and 8.50 mm in height. The mounting recess has a diameter of 15 mm, while the through-hole measures 7 mm in diameter. The anode weighs 0.05 kg (0.11 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 01206 Product Type Gearcase Anode Material Zinc Engine Manufacturer Suzuki Compatible Engines 9.9HP, 15HP Suzuki OEM Part Number 55321-93900 Weight 0.05 kg (0.11 lbs) Height (h) 8.50 mm (0.33 in) Outer Diameter (Ø) 49 mm (1.93 in) Mounting Recess Diameter (Ø1) 15 mm (0.59 in) Mounting Hole Diameter (Ø2) 7 mm (0.28 in)
Compatibility and References
- Engine Manufacturer: Suzuki
- Compatible Engines: 9.9HP and 15HP
- Application: Outboard Engine Gearcase
- Suzuki OEM Reference: 55321-93900
- Tecnoseal Part Number: 01206
- Additional Tecnoseal Reference: 00934
Key Features
- Zinc sacrificial gearcase anode for Suzuki 9.9HP and 15HP outboard engines.
- Helps protect compatible metallic gearcase components against galvanic corrosion.
- Compact circular plate design with a recessed central mounting hole.
- Outer diameter: 49 mm.
- Height: 8.50 mm.
- Mounting recess diameter: 15 mm.
- Mounting through-hole diameter: 7 mm.
- Weight: 0.05 kg (0.11 lbs).
- Corresponds to Suzuki OEM part number 55321-93900.
-
