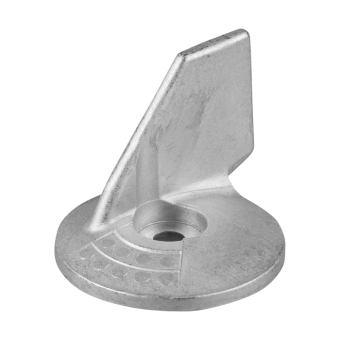

Tecnoseal 55125-96301 Suzuki DT 25-50HP Trim Tab Anode Ø61 mm

ID 1405077

$ 36.51

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

160 g
40 g

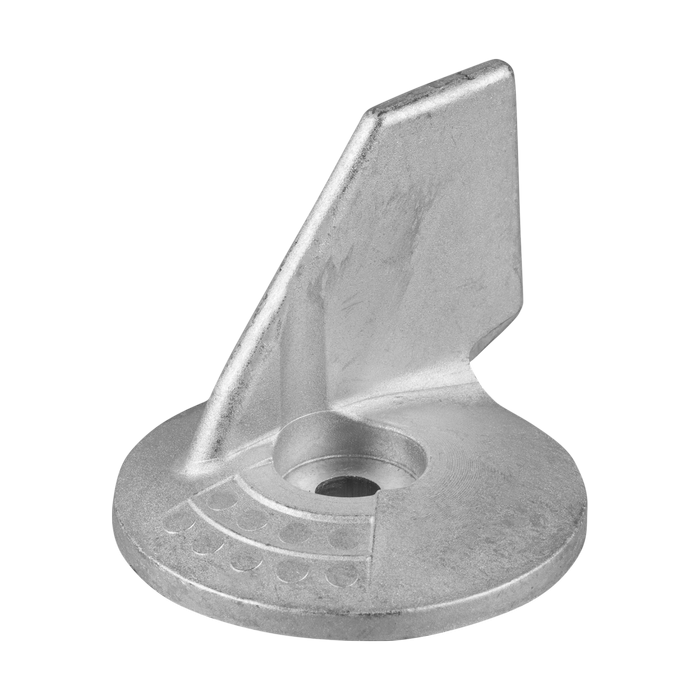

The Tecnoseal 01201 series includes sacrificial trim tab anodes for Suzuki DT 25-50HP outboard engines manufactured from 1983 to 1988, corresponding to Suzuki OEM part number 55125-96301. Each anode features a circular base with an integrated steering fin, measuring 70 mm in overall dimension (a), 50 mm in height (h) and 61 mm in base diameter (Ø). The mounting hole diameter (Ø1) is 8.5 mm, with a 19 mm mounting recess diameter (Ø2). Available in zinc (01201, 0.16 kg) and magnesium (01201MG, 0.04 kg), these anodes help protect compatible outboard components against galvanic corrosion.

Description
Ask a Question

Tecnoseal 55125-96301 Suzuki DT 25-50HP Trim Tab Anode Ø61 mm

The Tecnoseal 01201 series includes sacrificial trim tab anodes designed for Suzuki DT 25-50HP outboard engines manufactured between 1983 and 1988. These anodes correspond to Suzuki OEM part number 55125-96301 and help protect compatible submerged metallic engine components against galvanic corrosion.

Each anode features a circular mounting base with an integrated vertical steering fin. It measures 70 mm along dimension a, 50 mm in overall height and 61 mm in base diameter. The central mounting hole has a diameter of 8.5 mm, with a 19 mm mounting recess. Two material options are available: zinc and magnesium, both sharing identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Engine Manufacturer	Suzuki
Compatible Engines	DT 25-50HP (1983-1988)
Suzuki OEM Part Number	55125-96301
Available Materials	Zinc, Magnesium
Overall Dimension (a)	70 mm (2.76 in)
Height (h)	50 mm (1.97 in)
Base Diameter (Ø)	61 mm (2.40 in)
Mounting Hole Diameter (Ø1)	8.5 mm (0.33 in)
Mounting Recess Diameter (Ø2)	19 mm (0.75 in)

Available Variants

Tecnoseal Code	Material	Weight
01201	Zinc	0.16 kg (0.35 lbs)
01201MG	Magnesium	0.04 kg (0.09 lbs)

Compatibility and References

Engine Manufacturer: Suzuki
Compatible Models: DT 25-50HP
Production Years: 1983-1988
Application: Outboard Engine Trim Tab
Suzuki OEM Reference: 55125-96301
Zinc Version: Tecnoseal 01201
Magnesium Version: Tecnoseal 01201MG

Key Features

Sacrificial trim tab anode for Suzuki DT 25-50HP outboard engines (1983-1988).
Available in zinc and magnesium.
Helps protect compatible submerged engine components against galvanic corrosion.
Circular mounting base with integrated steering fin.
Overall dimension a: 70 mm.
Height: 50 mm.
Base diameter: 61 mm.
Mounting hole diameter: 8.5 mm.
Mounting recess diameter: 19 mm.
Corresponds to Suzuki OEM part number 55125-96301.
