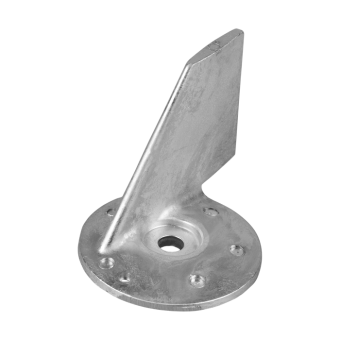

Tecnoseal 55125-87E01 Suzuki DF 60-70HP Trim Tab Anode Ø61 mm

ID 1405097

$ 30.58

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
190 g
50 g

The Tecnoseal 01207 series includes sacrificial trim tab anodes designed for Suzuki DF 60-70HP outboard engines, corresponding to Suzuki OEM part number 55125-87E01. Each anode features a circular mounting base with an integrated vertical steering fin, measuring 70 mm in overall length (l), 50 mm in height (h) and 61 mm in base diameter (Ø). The central mounting hole measures 9 mm in diameter (Ø1), with a 20 mm mounting recess diameter (Ø2). Available in zinc (01207, 0.19 kg), aluminium (01207AL, 0.08 kg) and magnesium (01207MG, 0.05 kg), these anodes help protect compatible submerged outboard components against galvanic corrosion. Additional Tecnoseal reference: 00931.

Description
Ask a Question

Tecnoseal 55125-87E01 Suzuki DF 60-70HP Trim Tab Anode Ø61 mm

The Tecnoseal 01207 series includes sacrificial trim tab anodes designed for Suzuki DF 60-70HP outboard engines. These anodes correspond to Suzuki OEM part number 55125-87E01 and help protect compatible submerged metallic outboard components against galvanic corrosion. Three material versions are available: zinc, aluminium and magnesium.

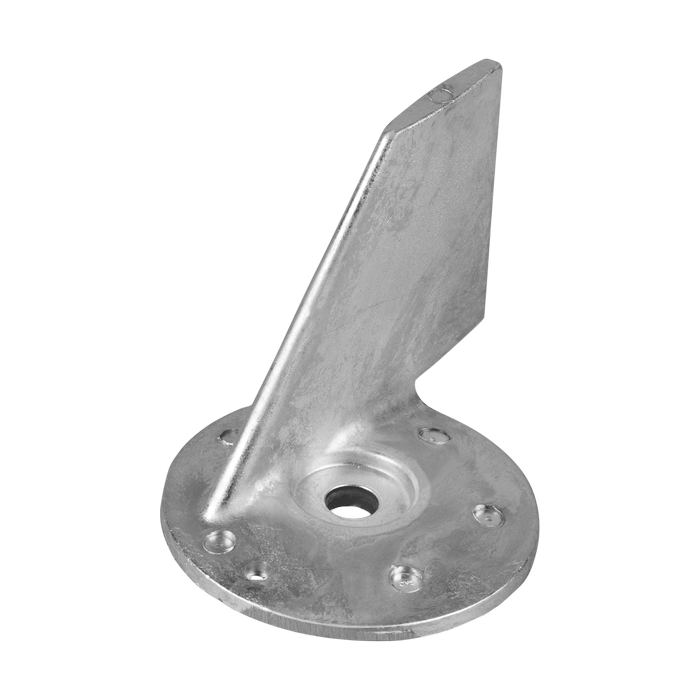

Each anode features a circular mounting base with an integrated vertical steering fin. It measures 70 mm in overall length and 50 mm in height, with a base diameter of 61 mm. The central mounting hole has a diameter of 9 mm and a recessed mounting section measuring 20 mm in diameter. All three versions share identical dimensions but differ in material and weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Engine Manufacturer	Suzuki
Compatible Engines	DF 60-70HP
Suzuki OEM Part Number	55125-87E01
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	70 mm (2.76 in)
Overall Height (h)	50 mm (1.97 in)
Base Diameter (Ø)	61 mm (2.40 in)
Mounting Hole Diameter (Ø1)	9 mm (0.35 in)
Mounting Recess Diameter (Ø2)	20 mm (0.79 in)

Available Variants

Tecnoseal Code	Material	Weight
01207	Zinc	0.19 kg (0.42 lbs)
01207AL (Osculati 43.272.82)	Aluminium	0.08 kg (0.18 lbs)
01207MG	Magnesium	0.05 kg (0.11 lbs)

Compatibility and References

Engine Manufacturer: Suzuki
Compatible Engines: DF 60HP, DF 70HP
Application: Outboard Engine Trim Tab
Suzuki OEM Reference: 55125-87E01
Zinc Version: Tecnoseal 01207
Aluminium Version: Tecnoseal 01207AL
Magnesium Version: Tecnoseal 01207MG
Additional Tecnoseal Reference: 00931

Key Features

Sacrificial trim tab anode for Suzuki DF 60-70HP outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible submerged metallic engine components against galvanic corrosion.
Circular mounting base with integrated vertical steering fin.
Overall length: 70 mm.
Overall height: 50 mm.
Base diameter: 61 mm.
Mounting hole diameter: 9 mm.
Mounting recess diameter: 20 mm.
Identical dimensions across all three material versions.
Corresponds to Suzuki OEM part number 55125-87E01.
