ID
1405092
$ 14.59
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 10 g
- 4 g
- 3 g
The Tecnoseal 01205 series includes sacrificial button anodes designed for Suzuki outboard engines, corresponding to Suzuki OEM part number 11130-94600. Each anode features a compact circular body with a countersunk central mounting hole, measuring 20 mm in outer diameter (Ø), 7 mm in height (h) and 6.50 mm in mounting hole diameter (Ø1). Available in zinc (01205, 10 g), aluminium (01205AL, 4 g) and magnesium (01205MG, 3 g), these anodes help protect compatible metallic engine components against galvanic corrosion. Additional Tecnoseal cross-references include 00813, 00823, 00933, 01127, 01250, 01904, 01910 and 08403.
- Description
- Ask a Question
-

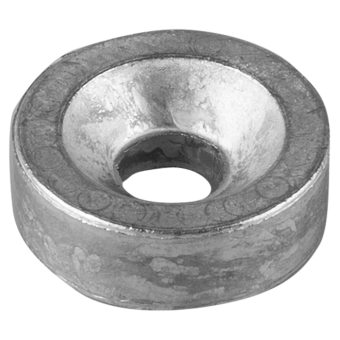

Tecnoseal 11130-94600 Suzuki Button Anode Ø20x7 mm
The Tecnoseal 01205 series includes sacrificial button anodes designed for Suzuki outboard engines. These compact, washer-shaped anodes correspond to Suzuki OEM part number 11130-94600 and help protect compatible metallic engine components against galvanic corrosion.

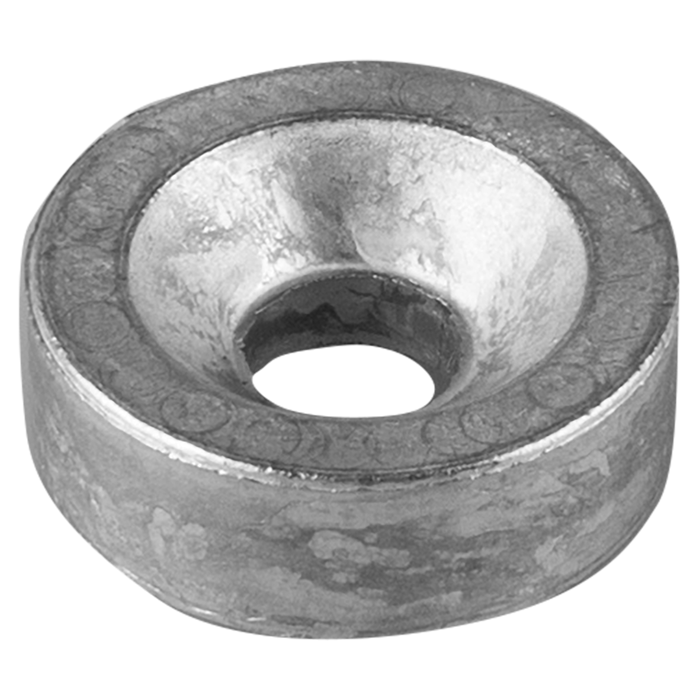

Each anode features a circular body with a countersunk central mounting hole. It measures 20 mm in outer diameter and 7 mm in height, with a 6.50 mm mounting hole diameter. Three material versions are available: zinc, aluminium and magnesium. All versions share the same dimensions but have different weights.
Technical Specifications
Manufacturer Tecnoseal Product Type Button Anode Engine Manufacturer Suzuki Suzuki OEM Part Number 11130-94600 Available Materials Zinc, Aluminium, Magnesium Height (h) 7 mm (0.28 in) Outer Diameter (Ø) 20 mm (0.79 in) Mounting Hole Diameter (Ø1) 6.50 mm (0.26 in)
Available Variants
Tecnoseal Code Material Weight 01205 Zinc 0.01 kg (0.02 lbs) 01205AL Aluminium 0.004 kg (0.01 lbs) 01205MG Magnesium 0.003 kg (0.01 lbs)
Compatibility and References
- Engine Manufacturer: Suzuki
- Application: Outboard Engine Corrosion Protection
- Suzuki OEM Reference: 11130-94600
- Zinc Version: Tecnoseal 01205
- Aluminium Version: Tecnoseal 01205AL
- Magnesium Version: Tecnoseal 01205MG
- Additional Tecnoseal References: 00813, 00823, 00933, 01127, 01250, 01904, 01910, 08403
Key Features
- Sacrificial button anode for Suzuki outboard engines.
- Available in zinc, aluminium and magnesium.
- Helps protect compatible metallic engine components against galvanic corrosion.
- Compact circular body with countersunk central mounting hole.
- Outer diameter: 20 mm.
- Height: 7 mm.
- Mounting hole diameter: 6.50 mm.
- Identical dimensions across all three material versions.
- Corresponds to Suzuki OEM part number 11130-94600.
-
