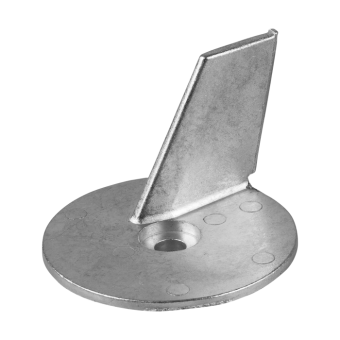

Tecnoseal 55125-96310 Suzuki DT/DF 20-35HP Trim Tab Anode Ø70 mm

ID 1405074

$ 27.04

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

140 g
40 g

The Tecnoseal 01200 series includes sacrificial trim tab anodes for Suzuki DT/DF 20-35HP outboard engines, replacing OEM part number 55125-96310. Each anode features a circular mounting base with an integrated steering fin, measuring 70 mm in base diameter (Ø), 82 mm in overall length (l) and 48 mm in height (h). Additional dimensions include a 4 mm base thickness (h1), an 8.5 mm mounting hole diameter (Ø1) and a 17 mm mounting recess diameter (Ø2). Available in zinc (01200, 0.14 kg) and magnesium (01200MG, 0.04 kg), these anodes help protect compatible outboard components against galvanic corrosion.

Description
Ask a Question

Tecnoseal 55125-96310 Suzuki DT/DF 20-35HP Trim Tab Anode Ø70 mm

The Tecnoseal 01200 series includes sacrificial trim tab anodes designed for Suzuki DT/DF 20-35HP outboard engines. These anodes correspond to Suzuki OEM part number 55125-96310 and help protect compatible submerged engine components against galvanic corrosion.

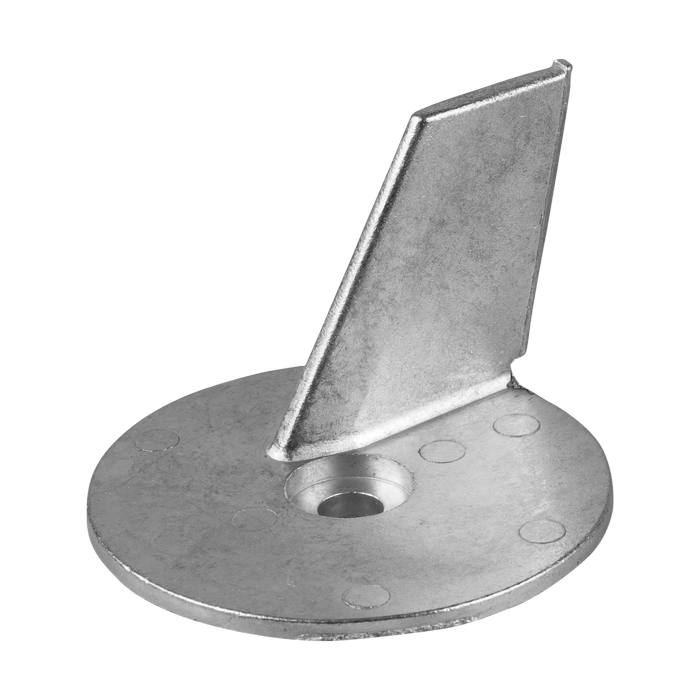

Each anode features a circular mounting base with an integrated vertical steering fin. The base measures 70 mm in diameter, with an overall length of 82 mm and a height of 48 mm. The base thickness is 4 mm, while the mounting hole measures 8.5 mm in diameter with a 17 mm mounting recess. Two material versions are available: zinc and magnesium.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Engine Manufacturer	Suzuki
Compatible Engines	DT/DF 20-35HP
Suzuki OEM Part Number	55125-96310
Available Materials	Zinc, Magnesium
Overall Length (l)	82 mm (3.23 in)
Overall Height (h)	48 mm (1.89 in)
Base Thickness (h1)	4 mm (0.16 in)
Base Diameter (Ø)	70 mm (2.76 in)
Mounting Hole Diameter (Ø1)	8.5 mm (0.33 in)
Mounting Recess Diameter (Ø2)	17 mm (0.67 in)

Available Variants

Tecnoseal Code	Material	Weight
01200 (Osculati 43.272.00)	Zinc	0.14 kg (0.31 lbs)
01200MG	Magnesium	0.04 kg (0.09 lbs)

Compatibility and References

Engine Manufacturer: Suzuki
Compatible Engines: DT/DF 20-35HP
Application: Outboard Engine Trim Tab
Suzuki OEM Reference: 55125-96310
Zinc Version: Tecnoseal 01200
Magnesium Version: Tecnoseal 01200MG

Key Features

Sacrificial trim tab anode for Suzuki DT/DF 20-35HP outboard engines.
Available in zinc and magnesium.
Helps protect compatible submerged engine components against galvanic corrosion.
Circular mounting base with integrated steering fin.
Base diameter: 70 mm.
Overall length: 82 mm.
Overall height: 48 mm.
Base thickness: 4 mm.
Mounting hole diameter: 8.5 mm.
Mounting recess diameter: 17 mm.
Replaces Suzuki OEM part number 55125-96310.
