Tecnoseal 55300-95500 Suzuki 3.5-50HP Gearcase Anode 76x20x10 mm

ID 1405101

$ 24.23

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

80 g
30 g

The Tecnoseal 01208 series includes sacrificial gearcase anodes designed for Suzuki 3.5-50HP outboard engines, corresponding to Suzuki OEM part number 55300-95500. Each anode features an elongated plate with rounded ends and two countersunk mounting holes. It measures 76 mm in length (l), 20 mm in width (a) and 10 mm in height (h), with 38 mm mounting hole centre spacing (i) and 6.50 mm hole diameter (Ø). Available in zinc (01208, 0.08 kg) and aluminium (01208AL, 0.03 kg), these anodes help protect compatible gearcase components against galvanic corrosion. Additional Tecnoseal reference: 00935.

Description
Ask a Question

Tecnoseal 55300-95500 Suzuki 3.5-50HP Gearcase Anode 76x20x10 mm

The Tecnoseal 01208 series includes sacrificial gearcase anodes designed for Suzuki outboard engines rated from 3.5 to 50 HP. These anodes correspond to Suzuki OEM part number 55300-95500 and help protect compatible metallic gearcase components against galvanic corrosion. Two material versions are available: zinc and aluminium.

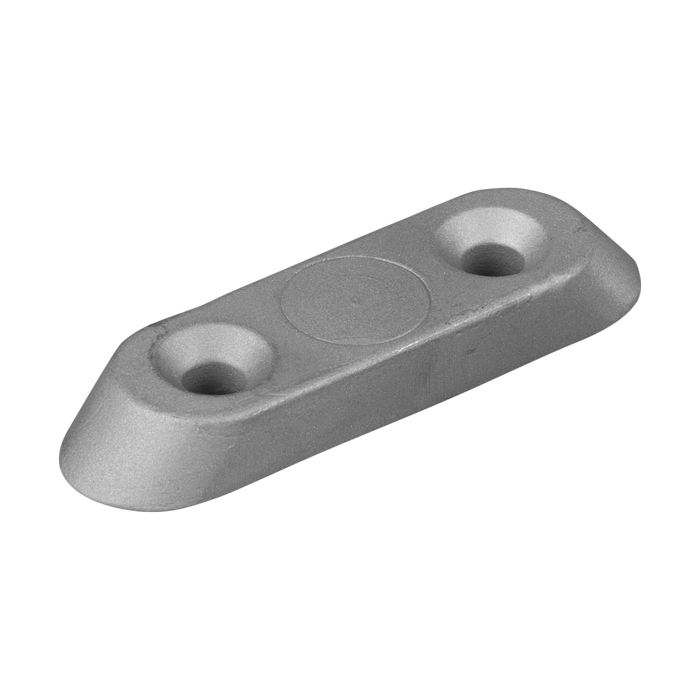

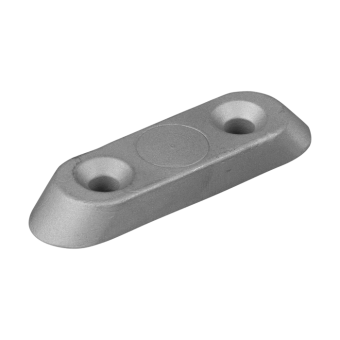

Each anode features an elongated plate-shaped body with rounded ends and two countersunk mounting holes. It measures 76 mm in overall length, 20 mm in width and 10 mm in height. The mounting holes have a centre-to-centre spacing of 38 mm and a diameter of 6.50 mm. Both material versions share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gearcase Anode
Engine Manufacturer	Suzuki
Compatible Engine Range	3.5-50 HP
Suzuki OEM Part Number	55300-95500
Available Materials	Zinc, Aluminium
Length (l)	76 mm (2.99 in)
Width (a)	20 mm (0.79 in)
Height (h)	10 mm (0.39 in)
Mounting Hole Spacing (i)	38 mm (1.50 in)
Mounting Hole Diameter (Ø)	6.50 mm (0.26 in)

Available Variants

Tecnoseal Code	Material	Weight
01208 (Osculati 43.274.00)	Zinc	0.08 kg (0.18 lbs)
01208AL	Aluminium	0.03 kg (0.07 lbs)

Compatibility and References

Engine Manufacturer: Suzuki
Compatible Engine Range: 3.5-50 HP
Application: Outboard Engine Gearcase
Suzuki OEM Reference: 55300-95500
Zinc Version: Tecnoseal 01208
Aluminium Version: Tecnoseal 01208AL
Additional Tecnoseal Reference: 00935

Key Features

Sacrificial gearcase anode for Suzuki 3.5-50HP outboard engines.
Available in zinc and aluminium.
Helps protect compatible metallic gearcase components against galvanic corrosion.
Elongated plate design with rounded ends.
Two countersunk mounting holes.
Overall dimensions: 76 x 20 x 10 mm.
Mounting hole centre spacing: 38 mm.
Mounting hole diameter: 6.50 mm.
Identical dimensions across both material versions.
Corresponds to Suzuki OEM part number 55300-95500.
