ID
1405084
$ 27.04
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 150 g
- 60 g
- 40 g
The Tecnoseal 01203 series includes sacrificial cube anodes designed for Suzuki DT 90-225HP outboard engines manufactured from 1987 to 2003, corresponding to OEM part number 41810-87D00. Each anode features a rectangular block body with two recessed mounting holes, measuring 48 mm in length (l) and 24 mm in height (h). Additional dimensions include a mounting hole centre spacing (i) of 23 mm, body width (a) of 6.50 mm, mounting hole diameter (b) of 10 mm and recess diameter (c) of 16 mm. Available in zinc (01203, 0.15 kg), aluminium (01203AL, 0.06 kg) and magnesium (01203MG, 0.04 kg), the series is also listed under Tecnoseal reference 01105.
- Description
- Ask a Question
-

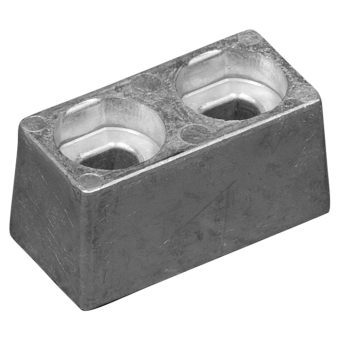

Tecnoseal 41810-87D00 Suzuki DT 90-225HP Cube Anode 48x24 mm
The Tecnoseal 01203 series includes sacrificial cube anodes designed for Suzuki DT 90-225HP outboard engines manufactured between 1987 and 2003. These anodes correspond to Suzuki OEM part number 41810-87D00 and help protect compatible metallic engine components against galvanic corrosion.

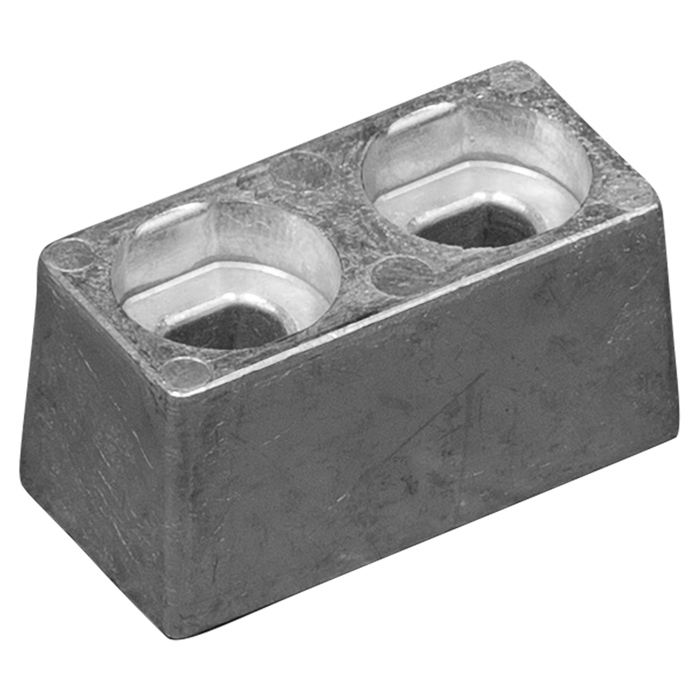

Each anode features a rectangular block-shaped body with two recessed mounting holes. It measures 48 mm in overall length and 24 mm in height. The mounting hole centre spacing is 23 mm, with additional dimensions a = 6.50 mm, b = 10 mm and c = 16 mm. All three material versions share the same dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Type Cube / Block Anode Engine Manufacturer Suzuki Compatible Engines DT 90-225HP (1987-2003) Suzuki OEM Part Number 41810-87D00 Available Materials Zinc, Aluminium, Magnesium Length (l) 48 mm (1.89 in) Height (h) 24 mm (0.94 in) Mounting Hole Spacing (i) 23 mm (0.91 in) Dimension a 6.50 mm (0.26 in) Dimension b 10 mm (0.39 in) Dimension c 16 mm (0.63 in)
Available Variants
Tecnoseal Code Material Weight 01203 Zinc 0.15 kg (0.33 lbs) 01203AL Aluminium 0.06 kg (0.13 lbs) 01203MG Magnesium 0.04 kg (0.09 lbs)
Compatibility and References
- Engine Manufacturer: Suzuki
- Compatible Models: DT 90-225HP
- Production Years: 1987-2003
- Application: Outboard Engine Corrosion Protection
- Suzuki OEM Reference: 41810-87D00
- Zinc Version: Tecnoseal 01203
- Aluminium Version: Tecnoseal 01203AL
- Magnesium Version: Tecnoseal 01203MG
- Additional Tecnoseal Reference: 01105
Key Features
- Sacrificial cube anode for Suzuki DT 90-225HP outboard engines (1987-2003).
- Available in zinc, aluminium and magnesium.
- Helps protect compatible metallic engine components against galvanic corrosion.
- Rectangular block body with two recessed mounting holes.
- Overall length: 48 mm.
- Height: 24 mm.
- Mounting hole centre spacing: 23 mm.
- Additional dimensions: a = 6.50 mm, b = 10 mm and c = 16 mm.
- Identical dimensions across all three material versions.
- Corresponds to Suzuki OEM part number 41810-87D00.
-
