The Tecnoseal 01916 series includes sacrificial cube anodes designed for Selva marine engines, helping protect compatible metallic engine components against galvanic corrosion. Each anode features a compact rectangular body with slightly tapered sides and an M8 threaded mounting hole. It measures 35 mm along dimension a, 26 mm along dimension l and 23 mm in height (h), with a narrower section (l1) measuring 21 mm. Available in zinc (01916, 0.12 kg), aluminium (01916AL, 0.05 kg) and magnesium (01916MG, 0.03 kg), the series is also listed under Tecnoseal references 01132 and 01757.
- Description
- Ask a Question
-

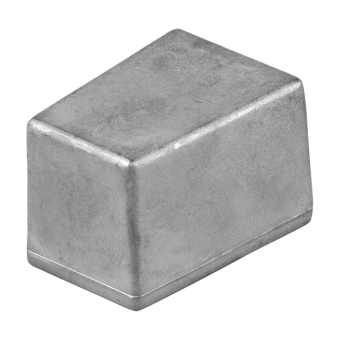

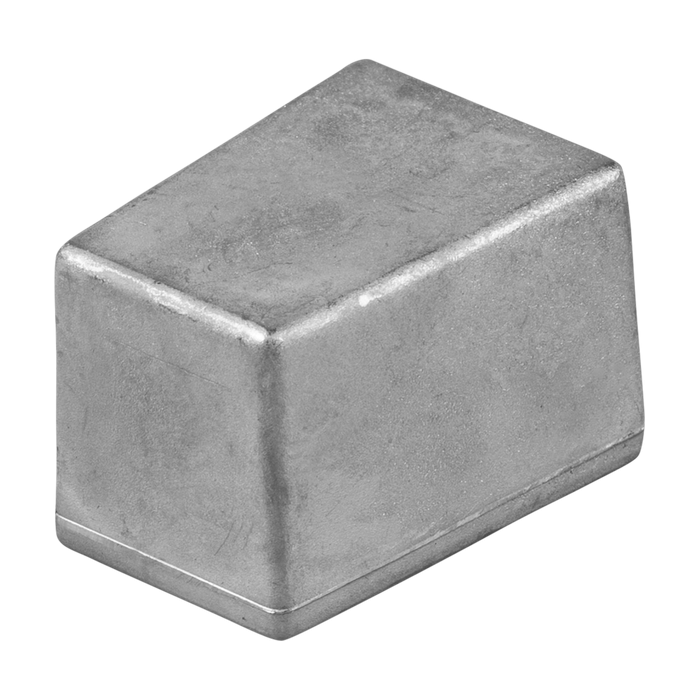

Tecnoseal Selva Cube Anode with M8 Thread 35x26x23 mm
The Tecnoseal 01916 series includes sacrificial cube anodes designed for Selva marine engines. These compact zinc, aluminium and magnesium anodes help protect compatible metallic engine components against galvanic corrosion.
Each anode features a rectangular block-shaped body with slightly tapered sides and an M8 threaded mounting hole. It measures 35 mm along dimension a, 26 mm along dimension l and 23 mm in height. The narrower section (l1) measures 21 mm. All three material versions share the same dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Series 01916 Product Type Cube Engine Anode with Threaded Hole Engine Brand Selva Available Materials Zinc, Aluminium, Magnesium Dimension l 26 mm (1.02 in) Dimension l1 21 mm (0.83 in) Dimension a 35 mm (1.38 in) Height (h) 23 mm (0.91 in) Internal Thread (m) M8
Available Variants
Tecnoseal Code Material Weight 01916 Zinc 0.12 kg (0.26 lbs) 01916AL Aluminium 0.05 kg (0.11 lbs) 01916MG Magnesium 0.03 kg (0.07 lbs)
Compatibility and References
- Engine Manufacturer: Selva
- Application: Marine Engine Corrosion Protection
- Zinc Version: Tecnoseal 01916
- Aluminium Version: Tecnoseal 01916AL
- Magnesium Version: Tecnoseal 01916MG
- Same As: Tecnoseal 01132, 01757
Key Features
- Sacrificial cube anode designed for Selva marine engines.
- Available in zinc, aluminium and magnesium.
- Helps protect compatible metallic engine components against galvanic corrosion.
- Compact rectangular block with slightly tapered sides.
- M8 internal threaded mounting hole.
- Dimensions: a = 35 mm, l = 26 mm, h = 23 mm.
- Narrower section (l1): 21 mm.
- Identical dimensions across all three material versions.
- Equivalent Tecnoseal references: 01132 and 01757.
-
