Tecnoseal 55320-98400 Suzuki 2-5HP Gearcase Anode Plate 48x18x12 mm

ID 1405105

$ 18.65

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

50 g
10 g

The Tecnoseal 01210 series includes sacrificial gearcase anode plates designed for Suzuki 2-5HP outboard engines manufactured from 1986 to 2002, replacing Suzuki OEM part number 55320-98400. Each anode features an elongated body with rounded ends and a central mounting hole, measuring 48 mm in length (l), 18 mm in width (a) and 12 mm in height (h), with a 7 mm mounting hole diameter (Ø). Available in zinc (01210, 0.05 kg) and magnesium (01210MG, 0.01 kg), these anodes help protect compatible metallic gearcase components against galvanic corrosion. Additional Tecnoseal reference: 00936.

Description
Ask a Question

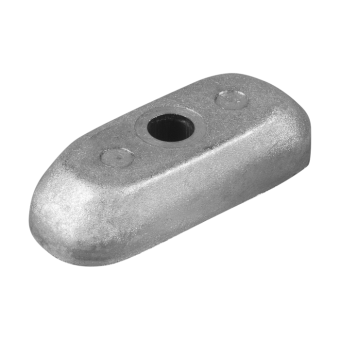

Tecnoseal 55320-98400 Suzuki 2-5HP Gearcase Anode Plate 48x18x12 mm

The Tecnoseal 01210 series includes sacrificial gearcase anode plates designed for Suzuki 2-5HP outboard engines manufactured between 1986 and 2002. These anodes correspond to Suzuki OEM part number 55320-98400 and help protect compatible metallic gearcase components against galvanic corrosion.

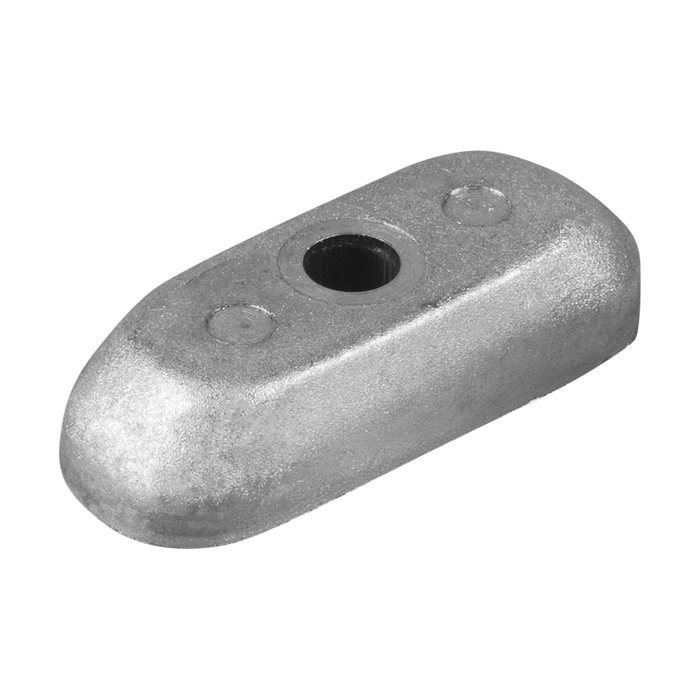

Each anode features a compact, elongated plate-shaped body with rounded ends and a central mounting hole. It measures 48 mm in length, 18 mm in width and 12 mm in height, with a 7 mm mounting hole diameter. Two material versions are available: zinc and magnesium. Both share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gearcase Anode Plate
Engine Manufacturer	Suzuki
Compatible Engines	2-5HP (1986-2002)
Suzuki OEM Part Number	55320-98400
Available Materials	Zinc, Magnesium
Length (l)	48 mm (1.89 in)
Width (a)	18 mm (0.71 in)
Height (h)	12 mm (0.47 in)
Mounting Hole Diameter (Ø)	7 mm (0.28 in)

Available Variants

Tecnoseal Code	Material	Weight
01210 (Osculati 43.903.30)	Zinc	0.05 kg (0.11 lbs)
01210MG	Magnesium	0.01 kg (0.02 lbs)

Compatibility and References

Engine Manufacturer: Suzuki
Compatible Engines: 2-5HP
Production Years: 1986-2002
Application: Outboard Engine Gearcase
Suzuki OEM Reference: 55320-98400
Zinc Version: Tecnoseal 01210
Magnesium Version: Tecnoseal 01210MG
Additional Tecnoseal Reference: 00936

Key Features

Sacrificial gearcase anode plate for Suzuki 2-5HP outboard engines (1986-2002).
Available in zinc and magnesium.
Helps protect compatible metallic gearcase components against galvanic corrosion.
Compact elongated body with rounded ends.
Central mounting hole for attachment.
Overall dimensions: 48 x 18 x 12 mm.
Mounting hole diameter: 7 mm.
Identical dimensions across both material versions.
Corresponds to Suzuki OEM part number 55320-98400.
