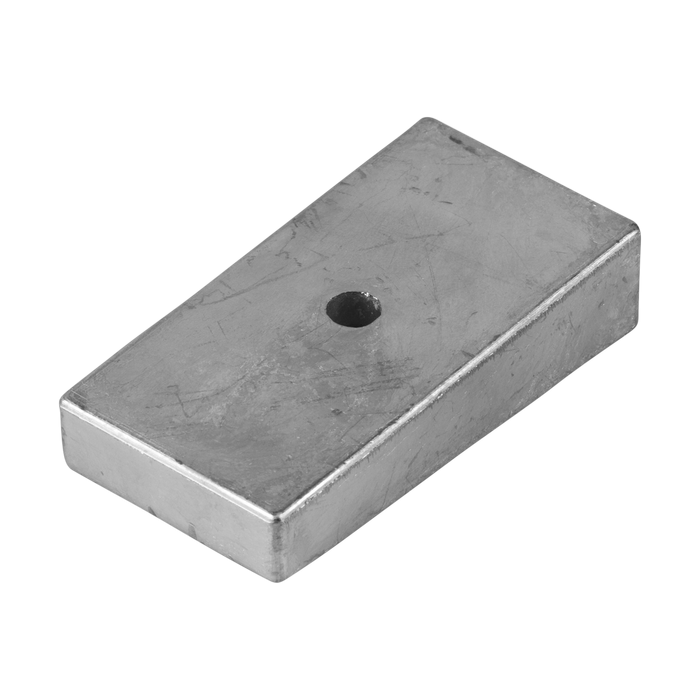

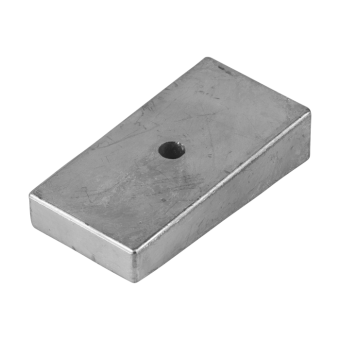

Tecnoseal 41109-ZW1-B00 Honda Wedge Anode for BF 75–350 HP Outboards (1997 Onwards)

ID 1404372

$ 25.80

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
60 g
230 g

The Tecnoseal Honda Wedge Anode is a sacrificial anode designed for Honda BF 75–350 HP outboard motors manufactured from 1997 onwards, corresponding to Honda OEM part numbers 41109-ZW1-B00 and 41109-ZW1-B03. Available in zinc (01407), aluminium (01407AL) and magnesium (01407MG), it features a rectangular wedge-shaped body with a central countersunk mounting hole. The anode measures 70 mm in length, 35 mm in width and 11–17 mm in height, with a 20 mm countersink diameter and a 7 mm through-hole diameter. The zinc version weighs 0.23 kg (230 g), the aluminium version 0.08 kg (80 g) and the magnesium version 0.06 kg (60 g). All versions have identical dimensions and are sold individually, with two anodes required per engine installation.

Description
Ask a Question

Tecnoseal 41109-ZW1-B00 Honda Wedge Anode for BF 75–350 HP Outboards (1997 Onwards)

The Tecnoseal Honda Wedge Anode is a sacrificial anode designed to protect compatible Honda BF outboard engine components against galvanic corrosion. According to the Tecnoseal catalogue, it is suitable for Honda BF 75–350 HP outboard motors from 1997 onwards and corresponds to original Honda OEM part numbers 41109-ZW1-B00 and 41109-ZW1-B03.

The anode features a rectangular wedge-shaped body with a central countersunk mounting hole. It measures 70 mm in length and 35 mm in width, with a maximum height of 17 mm and a minimum height of 11 mm. The countersunk section has a diameter of 20 mm, while the through-hole diameter is 7 mm. Three material versions are available: zinc (Tecnoseal 01407, Osculati 43.293.00), aluminium (Tecnoseal 01407AL, Osculati 43.293.01) and magnesium (Tecnoseal 01407MG, Osculati 43.293.02). All versions share the same dimensions but differ in weight.

Important: Each anode is sold individually. Two pieces are required per engine installation.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Wedge Anode
Honda OEM References	41109-ZW1-B00, 41109-ZW1-B03
Engine Compatibility	Honda BF 75–350 HP
Model Years	1997 Onwards
Available Materials	Zinc, Aluminium, Magnesium
Design	Rectangular Wedge with Countersunk Mounting Hole
Sales Unit	1 Piece
Required Quantity	2 Pieces per Engine

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight per Piece
01407	Zinc	43.293.00	0.23 kg (0.51 lbs)
01407AL	Aluminium	43.293.01	0.08 kg (0.18 lbs)
01407MG	Magnesium	43.293.02	0.06 kg (0.13 lbs)

Dimensions

Dimension	Measurement
Length (l)	70 mm (2.76")
Width (a)	35 mm (1.38")
Maximum Height (h)	17 mm (0.67")
Minimum Height (h1)	11 mm (0.43")
Countersink Diameter (Ø)	20 mm (0.79")
Mounting Hole Diameter (Ø1)	7 mm (0.28")

OEM and Cross-References

Honda OEM: 41109-ZW1-B00
Honda OEM: 41109-ZW1-B03
Tecnoseal 01407 (Zinc): Osculati 43.293.00
Tecnoseal 01407AL (Aluminium): Osculati 43.293.01
Tecnoseal 01407MG (Magnesium): Osculati 43.293.02

Installation and Quantity

Application: Honda BF 75–350 HP outboard motors from 1997 onwards.
Supply: Sold individually, one anode per unit.
Required Quantity: Two anodes per engine installation.
Mounting: Central countersunk mounting hole with Ø20 mm recess and Ø7 mm through-hole.

Key Features

Sacrificial wedge anode for Honda BF 75–350 HP outboards.
Honda OEM references: 41109-ZW1-B00 and 41109-ZW1-B03.
Available in zinc, aluminium and magnesium versions.
Rectangular wedge-shaped body with a countersunk mounting hole.
Length: 70 mm; width: 35 mm.
Height: 11–17 mm.
Countersink diameter: 20 mm; through-hole diameter: 7 mm.
Identical dimensions for all three material versions.
Zinc version: Tecnoseal 01407, Osculati 43.293.00, weight 230 g.
Aluminium version: Tecnoseal 01407AL, Osculati 43.293.01, weight 80 g.
Magnesium version: Tecnoseal 01407MG, Osculati 43.293.02, weight 60 g.
Sold individually; two pieces required per engine.
