Tecnoseal 12155-ZV5-000 & 12155-ZV5-010 Honda Water Inlet Button Anode Ø24 × 14 mm for BF Outboards

ID 1404380

$ 20.02

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

30 g
10 g
8 g

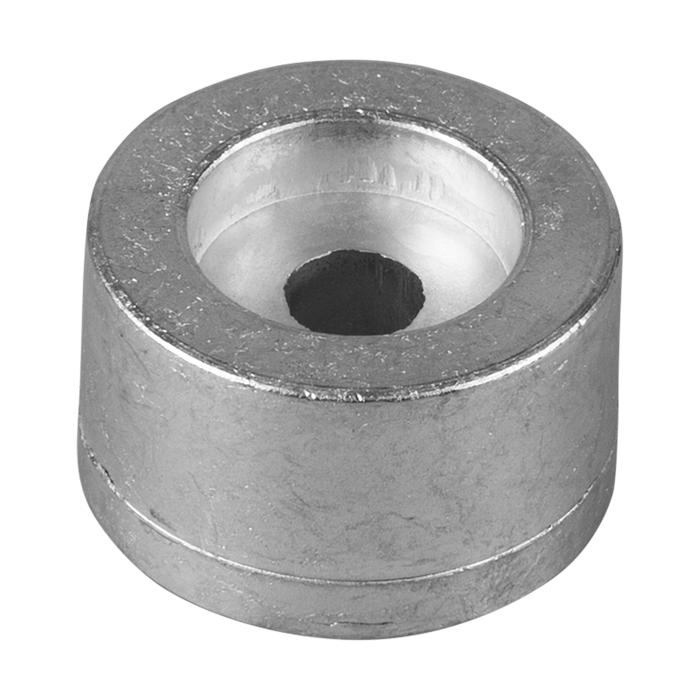

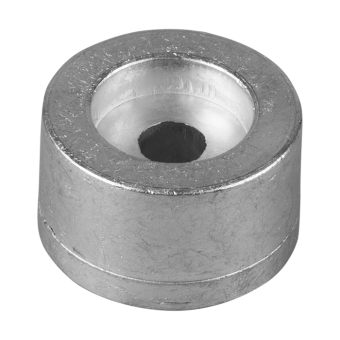

The Tecnoseal Honda Water Inlet Button Anode is a cylindrical sacrificial anode designed for Honda BF 25–90 HP, BF 75–130 HP and BF 350 HP outboard motors, corresponding to Honda OEM part numbers 12155-ZV5-000 and 12155-ZV5-010. Available in zinc (01408-1), aluminium (01408-1AL) and magnesium (01408-1MG), it provides corrosion protection for compatible water inlet components. The anode measures 24 mm in outer diameter and 14 mm in height, with a 6.5 mm central mounting hole and a 14 mm recessed opening. The zinc version weighs 0.03 kg (30 g), the aluminium version 0.01 kg (10 g) and the magnesium version 0.008 kg (8 g). All three versions have identical dimensions and mounting configurations.

Description
Ask a Question

Tecnoseal 12155-ZV5-000 12155-ZV5-010 Honda Water Inlet Button Anode Ø24 × 14 mm for BF Outboards – Zinc, Aluminium or Magnesium

The Tecnoseal Honda Water Inlet Button Anode is a cylindrical sacrificial anode designed for compatible Honda BF outboard motors. It protects metal components associated with the engine water inlet against galvanic corrosion. According to the Tecnoseal catalogue, the anode is suitable for Honda BF 25–90 HP, BF 75–130 HP and BF 350 HP applications and corresponds to Honda OEM part numbers 12155-ZV5-000 and 12155-ZV5-010.

The anode features a cylindrical body with a central mounting hole and a recessed opening. It measures 24 mm in outer diameter and 14 mm in height, with a central through-hole diameter of 6.5 mm and a larger recess diameter of 14 mm. Three material versions are available: zinc (Tecnoseal 01408-1, Osculati 43.292.21), aluminium (Tecnoseal 01408-1AL, Osculati 43.292.31) and magnesium (Tecnoseal 01408-1MG). All versions share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Water Inlet Button Anode
Application	Honda Outboard Water Inlet
Engine Compatibility	Honda BF 25–90 HP, BF 75–130 HP, BF 350 HP
Honda OEM References	12155-ZV5-000, 12155-ZV5-010
Available Materials	Zinc, Aluminium, Magnesium
Design	Cylindrical Button with Recessed Mounting Hole

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
01408-1	Zinc	43.292.21	0.03 kg (0.07 lbs)
01408-1AL	Aluminium	43.292.31	0.01 kg (0.02 lbs)
01408-1MG	Magnesium	Not specified	0.008 kg (0.02 lbs)

Dimensions

Dimension	Measurement
Height (h)	14 mm (0.55")
Outer Diameter (Ø)	24 mm (0.94")
Through-Hole Diameter (Ø1)	6.5 mm (0.26")
Recess Diameter (Ø2)	14 mm (0.55")

OEM and Cross-References

Honda OEM: 12155-ZV5-000
Honda OEM: 12155-ZV5-010
Tecnoseal 01408-1 (Zinc): Osculati 43.292.21
Tecnoseal 01408-1AL (Aluminium): Osculati 43.292.31
Tecnoseal 01408-1MG (Magnesium): No Osculati reference specified

Key Features

Sacrificial button anode for Honda outboard water inlet applications.
Compatible with the specified Honda BF 25–90 HP, BF 75–130 HP and BF 350 HP applications.
Honda OEM references: 12155-ZV5-000 and 12155-ZV5-010.
Available in zinc, aluminium and magnesium versions.
Cylindrical body with a central recessed mounting hole.
Outer diameter: 24 mm.
Height: 14 mm.
Through-hole diameter: 6.5 mm.
Recess diameter: 14 mm.
Identical dimensions across all three material versions.
Zinc version: Tecnoseal 01408-1, Osculati 43.292.21, weight 30 g.
Aluminium version: Tecnoseal 01408-1AL, Osculati 43.292.31, weight 10 g.
Magnesium version: Tecnoseal 01408-1MG, weight 8 g.
