The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for Honda BF 20–50 HP outboard motors, corresponding to OEM part number 6644537101. Available in zinc (01412), aluminium (01412AL) and magnesium (01412MG), it features a circular base with an integrated vertical trim fin and a central mounting hole. The anode measures 91.5 mm in base diameter and 55 mm in overall height, with a 17 mm mounting recess diameter and an 8.5 mm through-hole diameter. The zinc version weighs 0.21 kg (210 g), the aluminium version 0.08 kg (80 g) and the magnesium version 0.05 kg (50 g). All three versions have identical dimensions. Additional Tecnoseal catalogue references: 00712 and 01100.
- Description
- Ask a Question
-

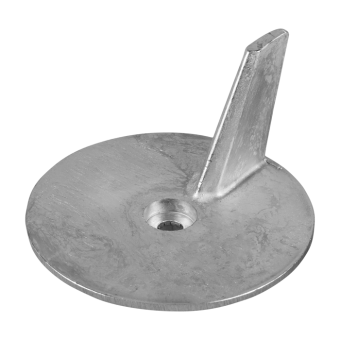

Tecnoseal 6644537101 Honda Trim Tab Anode for BF 20–50 HP Outboards – Zinc, Aluminium or Magnesium
The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for Honda BF 20–50 HP outboard motors. It helps protect compatible outboard components against galvanic corrosion. According to the Tecnoseal catalogue, it corresponds to original part number 6644537101 and is also listed with catalogue references 00712 and 01100.

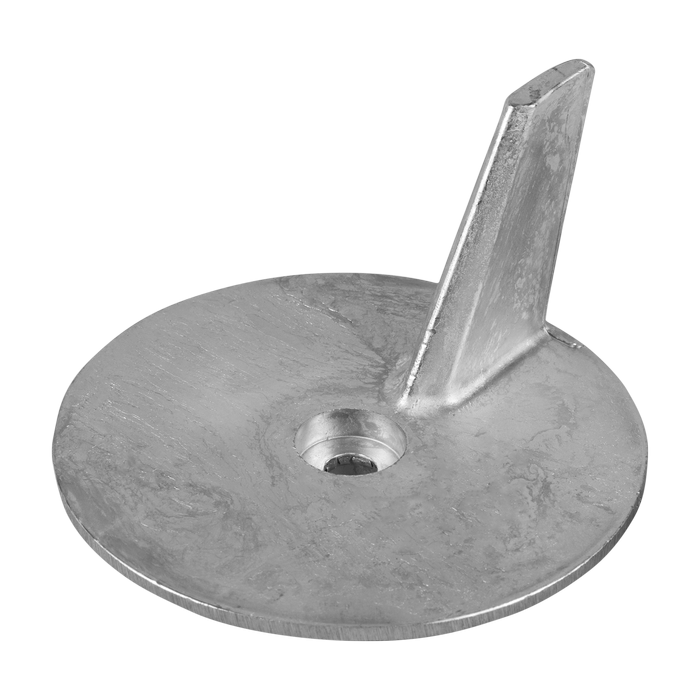

The anode features a circular base with an integrated vertical trim fin and a central mounting hole. It measures 91.5 mm in base diameter and 55 mm in overall height. The central mounting recess has a diameter of 17 mm, while the through-hole diameter is 8.5 mm. Three material versions are available: zinc (01412), aluminium (01412AL) and magnesium (01412MG). All versions share identical dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Type Trim Tab Anode Application Honda Outboard Motors Engine Compatibility Honda BF 20–50 HP Original Part Number 6644537101 Available Materials Zinc, Aluminium, Magnesium Design Circular Base with Integrated Trim Fin Additional Catalogue References 00712, 01100
Available Versions
Tecnoseal Part Number Material Weight 01412 Zinc 0.21 kg (0.46 lbs) 01412AL Aluminium 0.08 kg (0.18 lbs) 01412MG Magnesium 0.05 kg (0.11 lbs)
Dimensions
Dimension Measurement Base Diameter (Ø) 91.5 mm (3.60") Overall Height (h) 55 mm (2.17") Mounting Recess Diameter (Ø1) 17 mm (0.67") Mounting Hole Diameter (Ø2) 8.5 mm (0.33")
OEM and Catalogue Cross-References
- Original Part Number: 6644537101
- Additional Tecnoseal References: 00712, 01100
- Tecnoseal 01412: Zinc version
- Tecnoseal 01412AL: Aluminium version
- Tecnoseal 01412MG: Magnesium version
Key Features
- Sacrificial trim tab anode for Honda BF 20–50 HP outboard motors.
- Original part number: 6644537101.
- Available in zinc, aluminium and magnesium versions.
- Circular base with integrated vertical trim fin.
- Base diameter: 91.5 mm.
- Overall height: 55 mm.
- Mounting recess diameter: 17 mm.
- Through-hole diameter: 8.5 mm.
- Identical dimensions across all three material versions.
- Zinc version: Tecnoseal 01412, weight 210 g.
- Aluminium version: Tecnoseal 01412AL, weight 80 g.
- Magnesium version: Tecnoseal 01412MG, weight 50 g.
- Additional catalogue references: 00712 and 01100.
-
