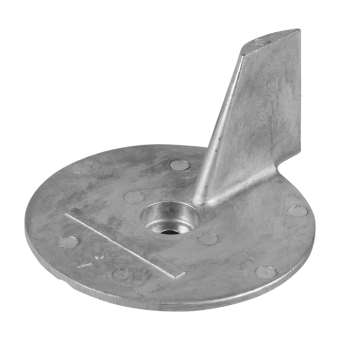

Tecnoseal 41107-ZW1-B01ZA Honda Trim Tab Anode for BF 75–130 HP Outboards

ID 1404392

$ 46.29

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

500 g
140 g
220 g

The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for Honda BF 75–130 HP outboard motors, corresponding to Honda OEM part numbers 41107-ZW1-B01ZA and 06412-ZV5-000. Available in zinc (01410), aluminium (01410AL) and magnesium (01410MG), it features a circular base with an integrated vertical trim fin and a central mounting hole. The anode measures 130 mm in overall length and 72 mm in height, with a fin height dimension (h1) of 56 mm, a base diameter of 112 mm, a 22 mm mounting recess and an 8 mm through-hole. The zinc version weighs 0.50 kg (500 g), the aluminium version 0.22 kg (220 g) and the magnesium version 0.14 kg (140 g). All three versions share identical dimensions and mounting configurations.

Description
Ask a Question

Tecnoseal 41107-ZW1-B01ZA Honda Trim Tab Anode for BF 75–130 HP Outboards – Zinc, Aluminium or Magnesium

The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for Honda BF 75–130 HP outboard motors. It helps protect compatible outboard components against galvanic corrosion and features an integrated trim fin. According to the Tecnoseal catalogue, it corresponds to Honda OEM part numbers 41107-ZW1-B01ZA and 06412-ZV5-000.

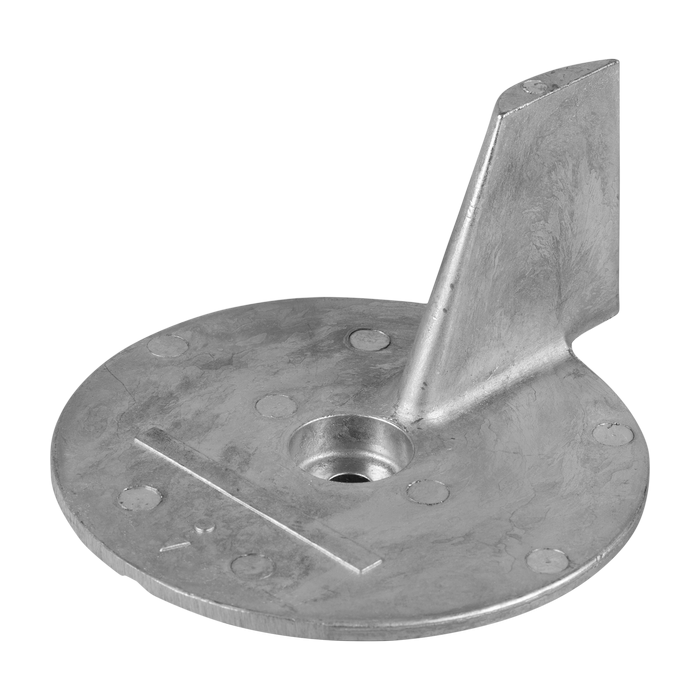

The anode features a circular base with an integrated vertical trim fin and a central mounting hole. It measures 130 mm in overall length and 72 mm in height, with an additional height dimension (h1) of 56 mm. The circular base has a diameter of 112 mm, while the central mounting recess measures 22 mm in diameter and the through-hole measures 8 mm. Three material versions are available: zinc (Tecnoseal 01410, Osculati 43.291.50), aluminium (Tecnoseal 01410AL, Osculati 43.291.51) and magnesium (Tecnoseal 01410MG). All three versions share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Application	Honda Outboard Motors
Engine Compatibility	Honda BF 75–130 HP
Honda OEM References	41107-ZW1-B01ZA, 06412-ZV5-000
Available Materials	Zinc, Aluminium, Magnesium
Design	Circular Base with Integrated Trim Fin

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
01410	Zinc	43.291.50	0.50 kg (1.10 lbs)
01410AL	Aluminium	43.291.51	0.22 kg (0.49 lbs)
01410MG	Magnesium	Not specified	0.14 kg (0.31 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	130 mm (5.12")
Overall Height (h)	72 mm (2.83")
Additional Height (h1)	56 mm (2.20")
Base Diameter (Ø)	112 mm (4.41")
Mounting Recess Diameter (Ø1)	22 mm (0.87")
Mounting Hole Diameter (Ø2)	8 mm (0.31")

OEM and Cross-References

Honda OEM: 41107-ZW1-B01ZA
Honda OEM: 06412-ZV5-000
Tecnoseal 01410 (Zinc): Osculati 43.291.50
Tecnoseal 01410AL (Aluminium): Osculati 43.291.51
Tecnoseal 01410MG (Magnesium): No Osculati reference specified

Key Features

Sacrificial trim tab anode for Honda BF 75–130 HP outboard motors.
Honda OEM references: 41107-ZW1-B01ZA and 06412-ZV5-000.
Available in zinc, aluminium and magnesium versions.
Circular base with integrated vertical trim fin.
Overall length: 130 mm.
Overall height: 72 mm.
Additional height dimension (h1): 56 mm.
Base diameter: 112 mm.
Mounting recess diameter: 22 mm.
Through-hole diameter: 8 mm.
Identical dimensions across all three material versions.
Zinc version: Tecnoseal 01410, Osculati 43.291.50, weight 500 g.
Aluminium version: Tecnoseal 01410AL, Osculati 43.291.51, weight 220 g.
Magnesium version: Tecnoseal 01410MG, weight 140 g.
