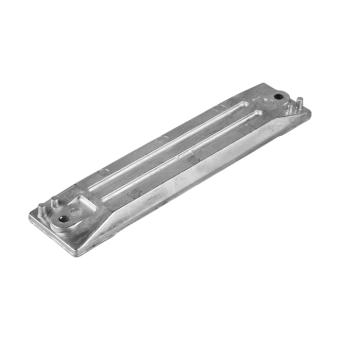

Tecnoseal 06411-ZW1-000 Honda Large Stern Bracket Bar Anode for BF 75–250 HP Outboards (1997–2007)

ID 1404368

$ 54.26

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

220 g
890 g
325 g

The Tecnoseal Honda Large Bar Anode is a sacrificial anode designed for the stern bracket of Honda BF 75–250 HP outboard motors manufactured between 1997 and 2007, corresponding to Honda OEM part numbers 06411-ZW1-000 and 06411-ZW1-020. Available in zinc (01406), aluminium (01406AL) and magnesium (01406MG), the anode features an elongated bar-shaped body with mounting holes at both ends. It measures 225 mm in overall length, 50 mm in width and 15 mm in height, with 202 mm centre-to-centre mounting hole spacing and 6 mm mounting hole diameter. The zinc version weighs 0.89 kg (1.96 lbs), the aluminium version 0.325 kg (0.72 lbs) and the magnesium version 0.22 kg (0.49 lbs). All three versions share the same dimensions and mounting configuration.

Description
Ask a Question

Tecnoseal 06411-ZW1-000 Honda Large Stern Bracket Bar Anode for BF 75–250 HP Outboards (1997–2007)

The Tecnoseal Honda Large Bar Anode is a sacrificial anode designed for the stern bracket of Honda BF 75–250 HP outboard motors manufactured between 1997 and 2007. It provides corrosion protection for compatible stern bracket components and corresponds to original Honda OEM part numbers 06411-ZW1-000 and 06411-ZW1-020.

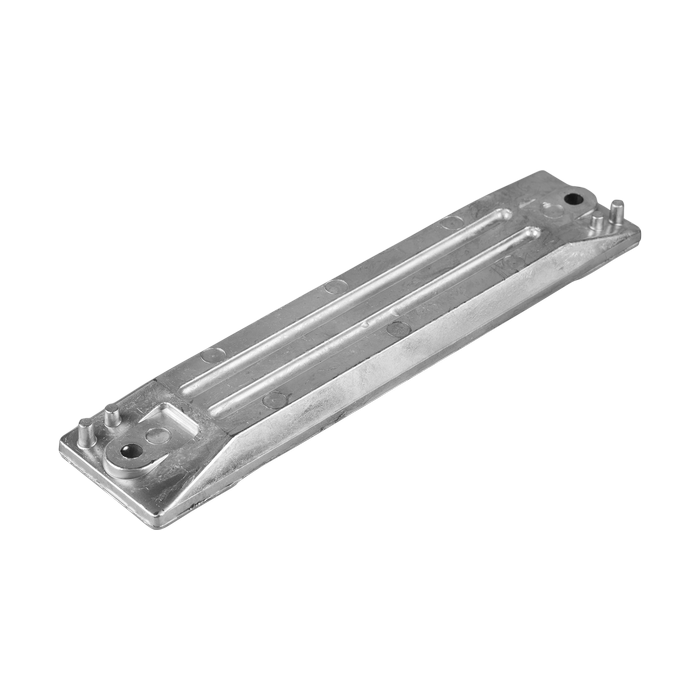

The anode features an elongated bar-shaped body with mounting holes at both ends and longitudinal recesses on one side. Its overall dimensions are 225 mm in length, 50 mm in width and 15 mm in height. The mounting holes have a centre-to-centre spacing of 202 mm and a diameter of 6 mm. Three material versions are available: zinc (01406), aluminium (01406AL) and magnesium (01406MG), all sharing identical dimensions but differing in weight. The corresponding Osculati references are 43.424.07, 43.424.04 and 43.423.98, respectively.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Large Stern Bracket Bar Anode
Application	Honda Outboard Stern Bracket
Engine Compatibility	Honda BF 75–250 HP
Model Years	1997–2007
Honda OEM References	06411-ZW1-000, 06411-ZW1-020
Available Materials	Zinc, Aluminium, Magnesium
Mounting Configuration	Two mounting holes

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
01406	Zinc	43.424.07	0.89 kg (1.96 lbs)
01406AL	Aluminium	43.424.04	0.325 kg (0.72 lbs)
01406MG	Magnesium	43.423.98	0.22 kg (0.49 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	225 mm (8.86")
Width (a)	50 mm (1.97")
Height (h)	15 mm (0.59")
Mounting Hole Spacing (i)	202 mm (7.95")
Mounting Hole Diameter (Ø)	6 mm (0.24")

OEM and Cross-References

Honda OEM: 06411-ZW1-000
Honda OEM: 06411-ZW1-020
Tecnoseal 01406 (Zinc): Osculati 43.424.07
Tecnoseal 01406AL (Aluminium): Osculati 43.424.04
Tecnoseal 01406MG (Magnesium): Osculati 43.423.98

Key Features

Sacrificial large bar anode for Honda outboard stern bracket applications.
Designed for Honda BF 75–250 HP outboard motors from 1997 to 2007.
Corresponds to Honda OEM references 06411-ZW1-000 and 06411-ZW1-020.
Available in zinc, aluminium and magnesium versions.
Elongated bar-shaped body with mounting points at both ends.
Overall dimensions: 225 × 50 × 15 mm.
Mounting hole centre-to-centre spacing: 202 mm.
Mounting hole diameter: 6 mm.
Identical dimensions across all three material versions.
Zinc version: Tecnoseal 01406, Osculati 43.424.07, weight 890 g.
Aluminium version: Tecnoseal 01406AL, Osculati 43.424.04, weight 325 g.
Magnesium version: Tecnoseal 01406MG, Osculati 43.423.98, weight 220 g.
