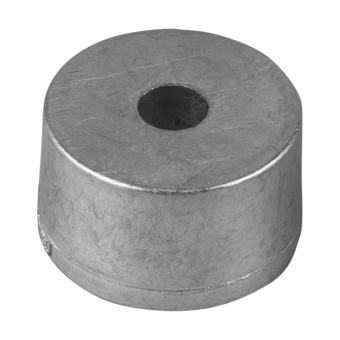

Tecnoseal Honda Button Anode Ø24 × 15 mm for BF 8–40 HP Outboards

ID 1404376

$ 18.89

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

20 g
40 g
10 g

The Tecnoseal Honda Button Anode is a cylindrical sacrificial anode designed for Honda BF 8–40 HP outboard motors, providing corrosion protection for compatible engine components. Available in zinc (01408), aluminium (01408AL) and magnesium (01408MG), it measures 24 mm in outer diameter and 15 mm in height, with a 6.5 mm central through-hole and a 12 mm countersunk recess. The zinc version weighs 0.04 kg (40 g), the aluminium version 0.02 kg (20 g) and the magnesium version 0.01 kg (10 g). All three versions share the same dimensions and mounting configuration. Additional Tecnoseal catalogue references: 01110 and 01650.

Description
Ask a Question

Tecnoseal Honda Button Anode Ø24 × 15 mm for BF 8–40 HP Outboards – Zinc, Aluminium or Magnesium

The Tecnoseal Honda Button Anode is a cylindrical sacrificial anode designed for Honda BF 8–40 HP outboard motors. It provides corrosion protection for compatible engine components and is available in zinc, aluminium and magnesium versions. The Tecnoseal catalogue also lists part numbers 01110 and 01650 as equivalent references.

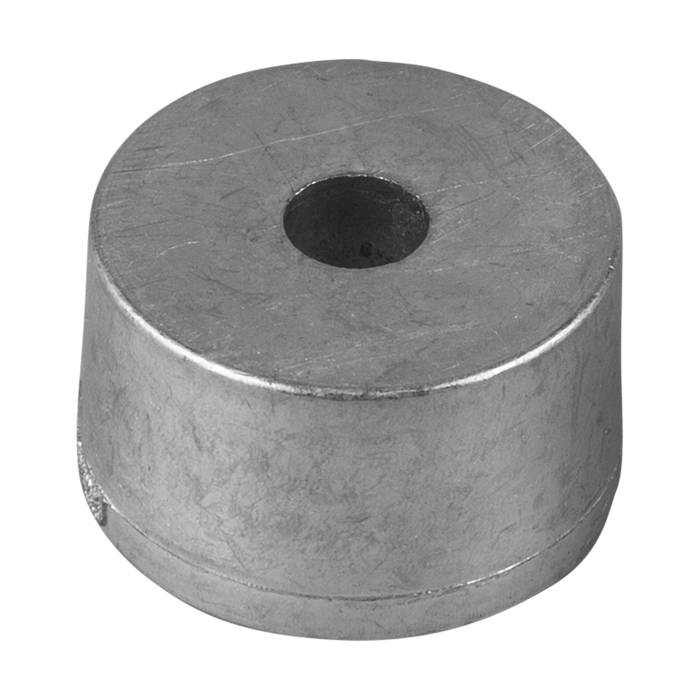

The anode features a cylindrical body with a central mounting hole and a recessed countersunk opening. It measures 24 mm in outer diameter and 15 mm in height, with a central through-hole diameter of 6.5 mm and a countersink diameter of 12 mm. All three versions share identical dimensions, while their weights vary according to material. The zinc version (Tecnoseal 01408) corresponds to Osculati 43.292.20, and the aluminium version (Tecnoseal 01408AL) corresponds to Osculati 43.292.22.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Button Anode
Application	Honda Outboard Motors
Engine Compatibility	Honda BF 8–40 HP
Available Materials	Zinc, Aluminium, Magnesium
Design	Cylindrical Button with Countersunk Mounting Hole
Additional Tecnoseal References	01110, 01650
