ID
1404388
$ 23.81
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 50 g
- 20 g
- 10 g
The Tecnoseal Honda Small Plate Anode is a rectangular sacrificial anode designed for the case and bracket of Honda BF 8–50 HP outboard motors, corresponding to Honda OEM part number 41106-ZW9-000. Available in zinc (01409), aluminium (01409AL) and magnesium (01409MG), it helps protect compatible outboard engine components against galvanic corrosion. The anode measures 32 mm in length, 28 mm in width and 8 mm in height, with a central countersunk mounting hole featuring an 18 mm recess diameter and a 6 mm through-hole diameter. The zinc version weighs 0.05 kg (50 g), the aluminium version 0.02 kg (20 g) and the magnesium version 0.01 kg (10 g). All three versions have identical dimensions and mounting configurations.
- Description
- Ask a Question
-

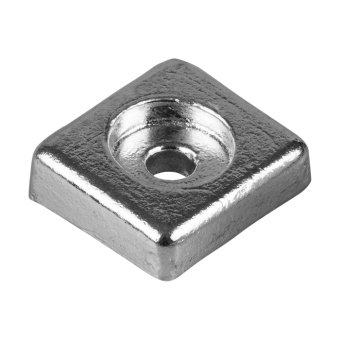

Tecnoseal 41106-ZW9-000 Honda Small Plate Anode for Case and Bracket BF 8–50 HP – Zinc, Aluminium or Magnesium
The Tecnoseal Honda Small Plate Anode is a rectangular sacrificial anode designed for the case and bracket of Honda BF 8–50 HP outboard motors. It helps protect compatible metal components against galvanic corrosion and corresponds to Honda OEM part number 41106-ZW9-000.

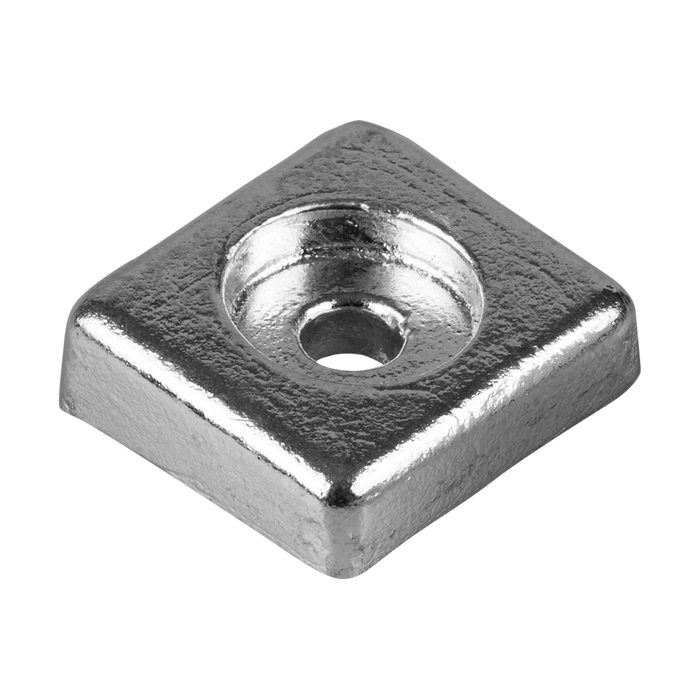

The anode features a compact rectangular plate with rounded corners and a central countersunk mounting hole. It measures 32 mm in length, 28 mm in width and 8 mm in height. The countersunk recess has a diameter of 18 mm, while the central through-hole measures 6 mm in diameter. Three material versions are available: zinc (Tecnoseal 01409, Osculati 43.292.00), aluminium (Tecnoseal 01409AL, Osculati 43.292.01) and magnesium (Tecnoseal 01409MG, Osculati 43.292.03). All versions share identical dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Type Small Plate Anode for Case and Bracket Application Honda Outboard Case and Bracket Engine Compatibility Honda BF 8–50 HP Honda OEM Reference 41106-ZW9-000 Available Materials Zinc, Aluminium, Magnesium Design Rectangular Plate with Central Countersunk Mounting Hole
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 01409 Zinc 43.292.00 0.05 kg (0.11 lbs) 01409AL Aluminium 43.292.01 0.02 kg (0.04 lbs) 01409MG Magnesium 43.292.03 0.01 kg (0.02 lbs)
Dimensions
Dimension Measurement Length (l) 32 mm (1.26") Width (a) 28 mm (1.10") Height (h) 8 mm (0.31") Countersink Diameter (Ø) 18 mm (0.71") Mounting Hole Diameter (Ø1) 6 mm (0.24")
OEM and Cross-References
- Honda OEM: 41106-ZW9-000
- Tecnoseal 01409 (Zinc): Osculati 43.292.00
- Tecnoseal 01409AL (Aluminium): Osculati 43.292.01
- Tecnoseal 01409MG (Magnesium): Osculati 43.292.03
Key Features
- Sacrificial plate anode for Honda BF 8–50 HP outboard motors.
- Designed for compatible case and bracket applications.
- Honda OEM reference: 41106-ZW9-000.
- Available in zinc, aluminium and magnesium versions.
- Compact rectangular body with rounded corners.
- Central countersunk mounting hole.
- Overall dimensions: 32 × 28 × 8 mm.
- Countersink diameter: 18 mm.
- Through-hole diameter: 6 mm.
- Identical dimensions across all three material versions.
- Zinc version: Tecnoseal 01409, Osculati 43.292.00, weight 50 g.
- Aluminium version: Tecnoseal 01409AL, Osculati 43.292.01, weight 20 g.
- Magnesium version: Tecnoseal 01409MG, Osculati 43.292.03, weight 10 g.
-
