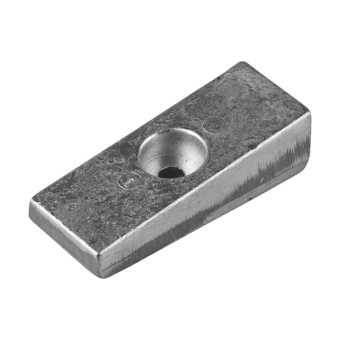

Tecnoseal 41109-ZW1-003 Honda Wedge Anode for BF 75–90 HP Outboards

ID 1404364

$ 19.41

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

250 g
60 g
90 g

The Tecnoseal Honda Wedge Anode is a sacrificial anode designed for Honda BF 75–90 HP outboard motors, corresponding to original Honda OEM part number 41109-ZW1-003 and additional Tecnoseal catalogue references 00825 and 01129. Available in zinc (01405), aluminium (01405AL) and magnesium (01405MG), the anode features a wedge-shaped rectangular body with a central countersunk mounting hole. It measures 77 mm in length, 30 mm in width and has a height ranging from 12 mm (h1) to 22 mm (h), with a 17 mm countersink diameter and a 7 mm through-hole diameter. The zinc version weighs 0.25 kg (250 g), the aluminium version 0.09 kg (90 g) and the magnesium version 0.06 kg (60 g). The anodes are sold individually, with two pieces required per engine installation.

Description
Ask a Question

Tecnoseal 41109-ZW1-003 Honda Wedge Anode for BF 75–90 HP Outboards – Zinc, Aluminium or Magnesium

The Tecnoseal Honda Wedge Anode is a sacrificial anode designed for Honda BF 75–90 HP outboard motors. It corresponds to original Honda OEM part number 41109-ZW1-003 and is also listed under Tecnoseal catalogue references 00825 and 01129. The product is available in zinc, aluminium and magnesium versions for corrosion protection of compatible outboard engine components.

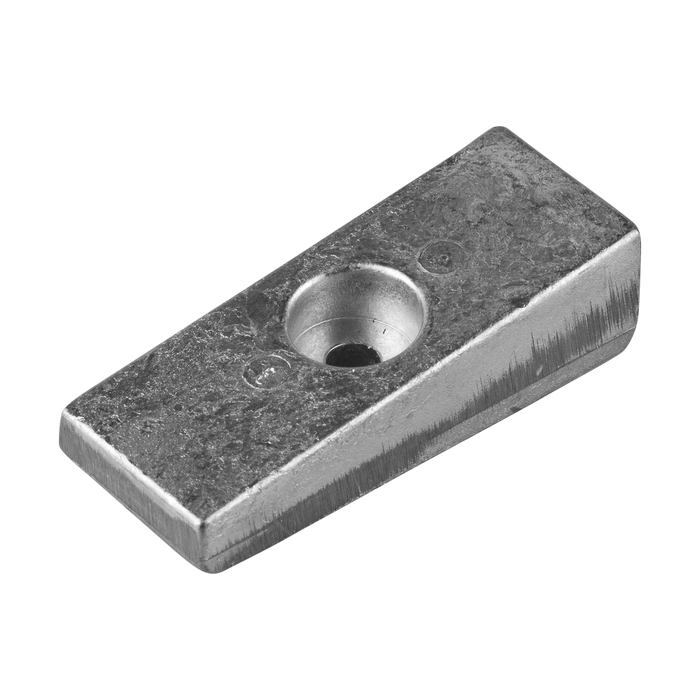

The anode has a rectangular wedge-shaped body with a central countersunk mounting hole. It measures 77 mm in length and 30 mm in width, with a maximum height of 22 mm and a minimum height of 12 mm. The countersunk mounting section has a diameter of 17 mm and a through-hole diameter of 7 mm. According to the Tecnoseal catalogue, each anode is sold individually, and two pieces are required per engine installation.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Wedge Anode
Honda OEM Reference	41109-ZW1-003
Additional Tecnoseal References	00825, 01129
Engine Compatibility	Honda BF 75–90 HP
Available Materials	Zinc, Aluminium, Magnesium
Body Design	Rectangular Wedge with Countersunk Mounting Hole
Sales Unit	1 Piece
Required Quantity	2 Pieces per Engine

Available Versions

Tecnoseal Part Number	Material	Weight per Piece
01405 (Osculati 43.424.05)	Zinc	0.25 kg (0.55 lbs)
01405AL	Aluminium	0.09 kg (0.20 lbs)
01405MG	Magnesium	0.06 kg (0.13 lbs)

Dimensions

Dimension	Measurement
Length (l)	77 mm (3.03")
Width (a)	30 mm (1.18")
Maximum Height (h)	22 mm (0.87")
Minimum Height (h1)	12 mm (0.47")
Countersink Diameter (Ø)	17 mm (0.67")
Mounting Hole Diameter (Ø1)	7 mm (0.28")

OEM and Cross-References

Honda OEM: 41109-ZW1-003
Additional Tecnoseal Catalogue Reference: 00825
Additional Tecnoseal Catalogue Reference: 01129
Tecnoseal 01405: Zinc version
Tecnoseal 01405AL: Aluminium version
Tecnoseal 01405MG: Magnesium version

Installation and Quantity

Compatible Engines: Honda BF 75–90 HP outboard motors.
Supply: Sold individually, one anode per unit.
Required Quantity: Two anodes per engine installation.
Mounting: Central countersunk mounting hole, Ø17 mm countersink and Ø7 mm through-hole.

Key Features

Sacrificial wedge anode for Honda BF 75–90 HP outboard motors.
Honda OEM reference: 41109-ZW1-003.
Additional Tecnoseal references: 00825 and 01129.
Available in zinc, aluminium and magnesium.
Wedge-shaped rectangular body with a central countersunk mounting hole.
Overall length: 77 mm.
Width: 30 mm.
Height: 12–22 mm.
Countersink diameter: 17 mm.
Through-hole diameter: 7 mm.
Identical dimensions across all three material versions.
Zinc version: Tecnoseal 01405, weight 250 g.
Aluminium version: Tecnoseal 01405AL, weight 90 g.
Magnesium version: Tecnoseal 01405MG, weight 60 g.
Sold individually; two pieces required per engine.
