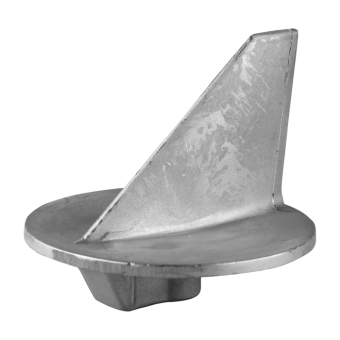

The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for Honda BF 75A–90A outboard motors, corresponding to Honda OEM part number 41107-ZW1-003-ZA. Available in zinc (01411), aluminium (01411AL) and magnesium (01411MG), it features a circular base with an integrated vertical trim fin and a 7/16" UNC threaded mounting connection. The anode measures 91 mm in base diameter, 61 mm in overall height and 19 mm in the additional height dimension (h1). The zinc version weighs 0.46 kg (460 g), the aluminium version 0.17 kg (170 g) and the magnesium version 0.12 kg (120 g). All three versions have identical dimensions. Additional Tecnoseal catalogue references include 00800, 01101-1 and 08405.
- Description
- Ask a Question
-
Tecnoseal 41107-ZW1-003-ZA Honda Trim Tab Anode for BF 75A–90A Outboards – Zinc, Aluminium or Magnesium
The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for Honda BF 75A–90A outboard motors. It helps protect compatible outboard components against galvanic corrosion and features an integrated trim fin. According to the Tecnoseal catalogue, it corresponds to Honda OEM part number 41107-ZW1-003-ZA.

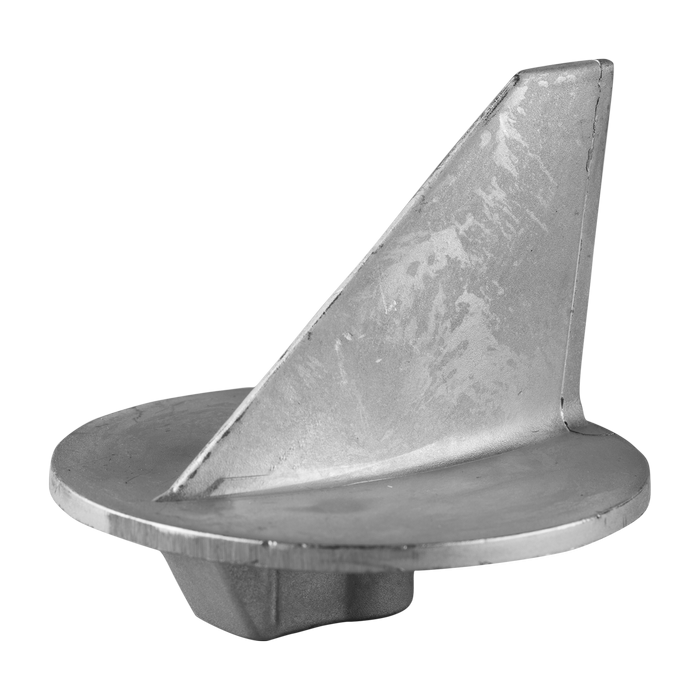

The anode features a circular base with an integrated vertical trim fin and a threaded mounting connection. Its base measures 91 mm in diameter, with an overall height of 61 mm and an additional height dimension (h1) of 19 mm. The mounting connection is specified as 7/16" UNC. Three material versions are available: zinc (01411), aluminium (01411AL) and magnesium (01411MG). All versions share identical dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Type Trim Tab Anode Application Honda Outboard Motors Engine Compatibility Honda BF 75A–90A Honda OEM Reference 41107-ZW1-003-ZA Available Materials Zinc, Aluminium, Magnesium Design Circular Base with Integrated Trim Fin Mounting Thread 7/16" UNC
Available Versions
Tecnoseal Part Number Material Weight 01411 Zinc 0.46 kg (1.01 lbs) 01411AL Aluminium 0.17 kg (0.37 lbs) 01411MG Magnesium 0.12 kg (0.26 lbs)
Dimensions
Dimension Measurement Base Diameter (Ø) 91 mm (3.58") Overall Height (h) 61 mm (2.40") Additional Height (h1) 19 mm (0.75") Mounting Thread (m) 7/16" UNC
OEM and Catalogue Cross-References
- Honda OEM: 41107-ZW1-003-ZA
- Additional Tecnoseal References: 00800, 01101-1, 08405
- Tecnoseal 01411: Zinc version
- Tecnoseal 01411AL: Aluminium version
- Tecnoseal 01411MG: Magnesium version
Key Features
- Sacrificial trim tab anode for Honda BF 75A–90A outboard motors.
- Honda OEM reference: 41107-ZW1-003-ZA.
- Available in zinc, aluminium and magnesium versions.
- Circular base with integrated vertical trim fin.
- Base diameter: 91 mm.
- Overall height: 61 mm.
- Additional height dimension (h1): 19 mm.
- Mounting thread: 7/16" UNC.
- Identical dimensions across all three material versions.
- Zinc version: Tecnoseal 01411, weight 460 g.
- Aluminium version: Tecnoseal 01411AL, weight 170 g.
- Magnesium version: Tecnoseal 01411MG, weight 120 g.
- Additional catalogue references: 00800, 01101-1 and 08405.
-
