The Tecnoseal Honda Button Anode is a compact cylindrical sacrificial anode designed for Honda BF 8–40 HP and BF 350 HP outboard motors, corresponding to Honda OEM part number 412155-ZV4-A00. Available in zinc (01408-2), aluminium (01408-2AL) and magnesium (01408-2MG), it provides corrosion protection for compatible outboard engine components. The anode measures 14 mm in outer diameter and 13 mm in height, with a 13 mm diameter at the narrower end and a 5.5 mm central through-hole. The zinc version weighs 0.01 kg (10 g), the aluminium version 0.004 kg (4 g) and the magnesium version 0.003 kg (3 g). All three versions share identical dimensions and mounting configurations.
- Description
- Ask a Question
-

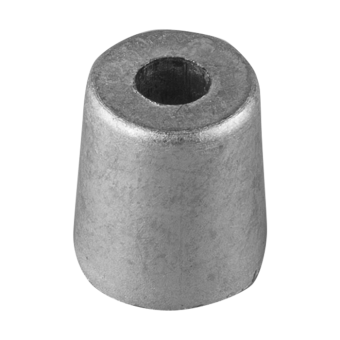

Tecnoseal 412155-ZV4-A00 Honda Button Anode Ø14 × 13 mm for BF 8–40 HP and BF 350 HP Outboards – Zinc, Aluminium or Magnesium
The Tecnoseal Honda Button Anode is a cylindrical sacrificial anode designed for Honda BF 8–40 HP and BF 350 HP outboard motors. It helps protect compatible engine components against galvanic corrosion and corresponds to Honda OEM part number 412155-ZV4-A00. Three material versions are available: zinc, aluminium and magnesium.

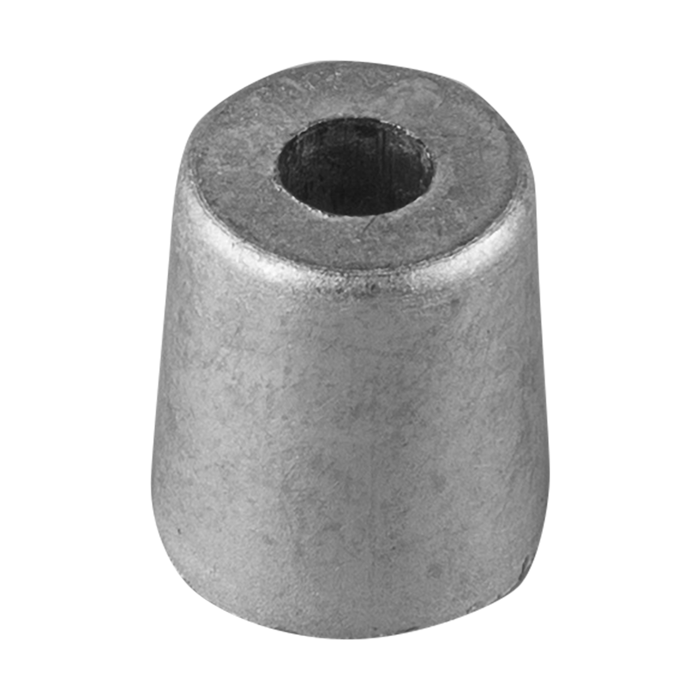

The anode has a compact, slightly tapered cylindrical body with a central through-hole. It measures 13 mm in height, 14 mm at the wider end and 13 mm at the narrower end, with a central hole diameter of 5.5 mm. All three versions share the same dimensions but differ in weight according to material.
Technical Specifications
Manufacturer Tecnoseal Product Type Button Anode Application Honda Outboard Motors Engine Compatibility Honda BF 8–40 HP, BF 350 HP Honda OEM Reference 412155-ZV4-A00 Available Materials Zinc, Aluminium, Magnesium Design Slightly Tapered Cylindrical Button with Central Through-Hole
Available Versions
Tecnoseal Part Number Material Weight 01408-2 Zinc 0.01 kg (0.02 lbs) 01408-2AL Aluminium 0.004 kg (0.01 lbs) 01408-2MG Magnesium 0.003 kg (0.01 lbs)
Dimensions
Dimension Measurement Height (h) 13 mm (0.51") Maximum Diameter (Ø) 14 mm (0.55") Minimum Diameter (Ø1) 13 mm (0.51") Central Hole Diameter (Ø2) 5.5 mm (0.22")
OEM and Product References
- Honda OEM: 412155-ZV4-A00
- Tecnoseal 01408-2: Zinc version
- Tecnoseal 01408-2AL: Aluminium version
- Tecnoseal 01408-2MG: Magnesium version
Key Features
- Sacrificial button anode for compatible Honda BF outboard motors.
- Designed for Honda BF 8–40 HP and BF 350 HP applications.
- Honda OEM reference: 412155-ZV4-A00.
- Available in zinc, aluminium and magnesium versions.
- Compact, slightly tapered cylindrical body.
- Height: 13 mm.
- Maximum diameter: 14 mm.
- Minimum diameter: 13 mm.
- Central through-hole diameter: 5.5 mm.
- Identical dimensions across all three material versions.
- Zinc version: Tecnoseal 01408-2, weight 10 g.
- Aluminium version: Tecnoseal 01408-2AL, weight 4 g.
- Magnesium version: Tecnoseal 01408-2MG, weight 3 g.
-
