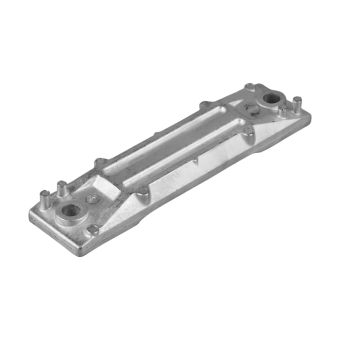

Tecnoseal 06411-ZV5-000 Honda Stern Bracket Bar Anode for BF 35–50 HP Outboards

ID 1404360

$ 39.37

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

150 g
100 g
380 g

The Tecnoseal Honda Small Bar Anode is a sacrificial anode designed for the stern bracket of Honda BF 35–50 HP outboard motors, corresponding to Honda OEM references 06411-ZV5-000 and 06411-ZV5-020. Available in zinc (01404), aluminium (01404AL) and magnesium (01404MG), the anode features an elongated rectangular body with mounting points at both ends. It measures 148 mm in overall length, 36 mm in width and 15 mm in height, with a mounting hole spacing of 127 mm and a hole diameter of 7 mm. The zinc version weighs 0.38 kg (0.84 lbs), the aluminium version 0.15 kg (0.33 lbs) and the magnesium version 0.10 kg (0.22 lbs). Additional Tecnoseal catalogue reference: 08401.

Description
Ask a Question

Tecnoseal 06411-ZV5-000 Honda Stern Bracket Bar Anode for BF 35–50 HP Outboards – Zinc, Aluminium or Magnesium

The Tecnoseal Honda Small Bar Anode is a sacrificial anode designed for the stern bracket of Honda BF 35–50 HP outboard motors. It provides corrosion protection for compatible stern bracket components and corresponds to original Honda OEM references 06411-ZV5-000 and 06411-ZV5-020. The Tecnoseal catalogue also lists 08401 as an additional reference.

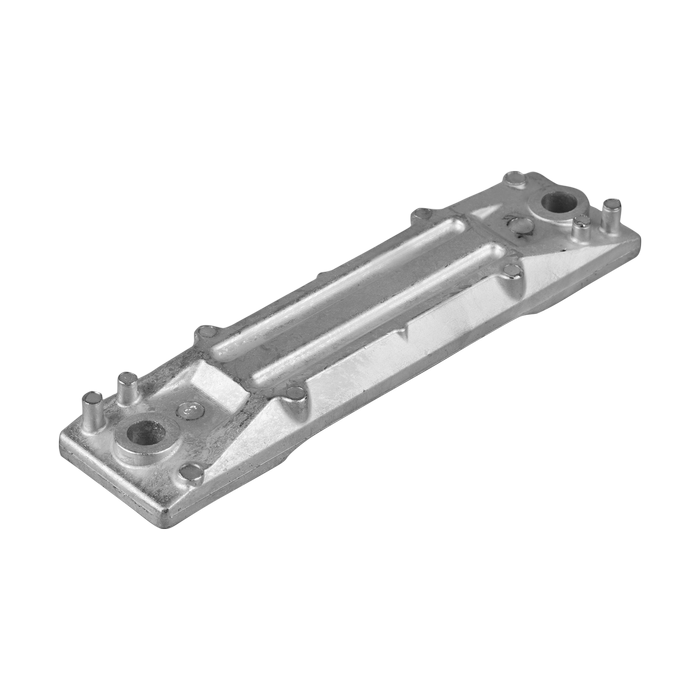

The anode features an elongated rectangular body with mounting points at both ends. Its overall dimensions are 148 mm in length, 36 mm in width and 15 mm in height. The mounting holes have a centre-to-centre spacing of 127 mm and a diameter of 7 mm. Three material versions are available: zinc (01404), aluminium (01404AL) and magnesium (01404MG), all sharing identical dimensions but differing in weight. The corresponding Osculati references are 43.290.00, 43.290.01 and 43.290.02, respectively.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Stern Bracket Bar Anode
Application	Honda Outboard Stern Bracket
Engine Compatibility	Honda BF 35–50 HP
Honda OEM References	06411-ZV5-000, 06411-ZV5-020
Additional Tecnoseal Reference	08401
Available Materials	Zinc, Aluminium, Magnesium
Mounting Configuration	Two mounting holes

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
01404	Zinc	43.290.00	0.38 kg (0.84 lbs)
01404AL	Aluminium	43.290.01	0.15 kg (0.33 lbs)
01404MG	Magnesium	43.290.02	0.10 kg (0.22 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	148 mm (5.83")
Width (a)	36 mm (1.42")
Height (h)	15 mm (0.59")
Mounting Hole Spacing (i)	127 mm (5.00")
Mounting Hole Diameter (Ø)	7 mm (0.28")

OEM and Cross-References

Honda OEM: 06411-ZV5-000
Honda OEM: 06411-ZV5-020
Additional Tecnoseal Reference: 08401
Tecnoseal 01404 (Zinc): Osculati 43.290.00
Tecnoseal 01404AL (Aluminium): Osculati 43.290.01
Tecnoseal 01404MG (Magnesium): Osculati 43.290.02

Key Features

Sacrificial bar anode for Honda outboard stern bracket applications.
Designed for Honda BF 35–50 HP outboard motors.
Corresponds to Honda OEM references 06411-ZV5-000 and 06411-ZV5-020.
Available in zinc, aluminium and magnesium versions.
Elongated rectangular body with mounting points at both ends.
Overall dimensions: 148 × 36 × 15 mm.
Mounting hole spacing: 127 mm.
Mounting hole diameter: 7 mm.
Identical dimensions across all three material versions.
Zinc version: Tecnoseal 01404, Osculati 43.290.00, weight 380 g.
Aluminium version: Tecnoseal 01404AL, Osculati 43.290.01, weight 150 g.
Magnesium version: Tecnoseal 01404MG, Osculati 43.290.02, weight 100 g.
Additional Tecnoseal catalogue reference: 08401.
