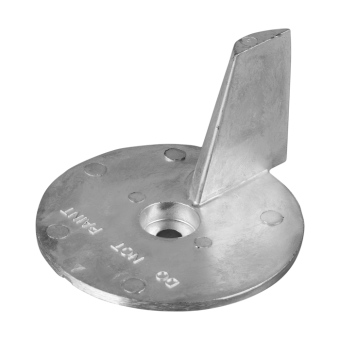

Tecnoseal 41107-ZV5-000 Honda Trim Tab Anode for BF 25–50 HP Outboards

ID 1404356

$ 34.29

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
110 g
320 g

The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for Honda BF 25–50 HP outboard motors, corresponding to original Honda OEM part numbers 41107-ZV5-000 and 06412-ZV5-000. Available in zinc (01403), aluminium (01403AL) and magnesium (01403MG), the anode features a circular base with an integrated vertical trim fin. Its dimensions are 105 mm overall length (l), 60 mm height (h), 9 mm base height (h1) and 94 mm base diameter (Ø), with additional mounting diameters of 21 mm (Ø1) and 8.5 mm (Ø2). The zinc version weighs 0.32 kg (0.71 lbs), the aluminium version 0.11 kg (0.24 lbs) and the magnesium version 0.08 kg (0.18 lbs). All three versions share the same dimensions and mounting configuration.

Description
Ask a Question

Tecnoseal 41107-ZV5-000 Honda Trim Tab Anode for BF 25–50 HP Outboards – Zinc, Aluminium or Magnesium

The Tecnoseal Honda Trim Tab Anode is a sacrificial anode designed for compatible Honda BF 25–50 HP outboard motors. It corresponds to original Honda OEM part numbers 41107-ZV5-000 and 06412-ZV5-000 and is available in three material versions: zinc (01403), aluminium (01403AL) and magnesium (01403MG).

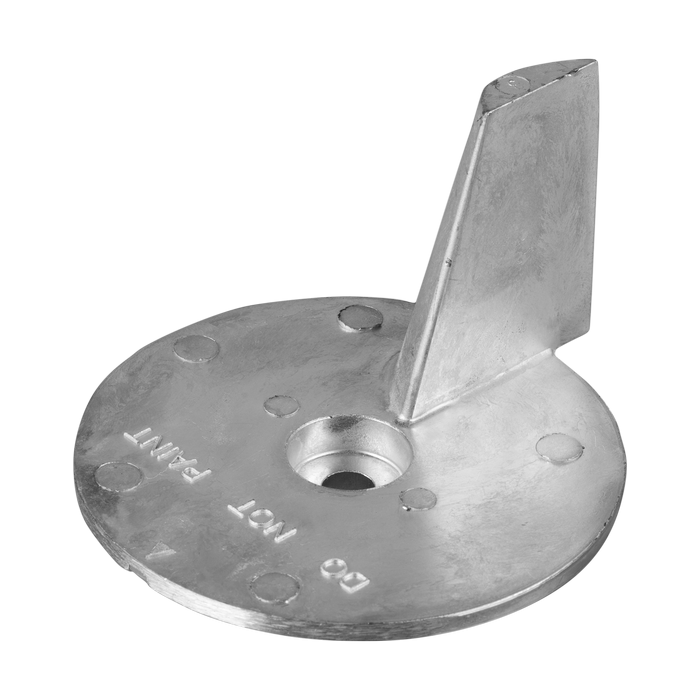

The anode features a circular base with an integrated vertical trim fin and a central mounting opening. The overall length (l) is 105 mm, the height (h) is 60 mm and the base height (h1) is 9 mm. The circular base measures 94 mm in diameter, with additional diameters of 21 mm (Ø1) and 8.5 mm (Ø2). All three versions have identical dimensions, while their catalogue weights differ according to material. Corresponding Osculati references are 43.291.00 for zinc, 43.291.01 for aluminium and 43.291.02 for magnesium.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
OEM References	Honda 41107-ZV5-000 / 06412-ZV5-000
Engine Compatibility	Honda BF 25–50 HP
Available Materials	Zinc, Aluminium, Magnesium
Design	Circular base with integrated vertical trim fin
Base Diameter	94 mm
Overall Height	60 mm

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
01403	Zinc	43.291.00	0.32 kg (0.71 lbs)
01403AL	Aluminium	43.291.01	0.11 kg (0.24 lbs)
01403MG	Magnesium	43.291.02	0.08 kg (0.18 lbs)

OEM and Cross-References

Honda OEM: 41107-ZV5-000
Honda OEM: 06412-ZV5-000
Tecnoseal 01403 (Zinc): Osculati 43.291.00
Tecnoseal 01403AL (Aluminium): Osculati 43.291.01
Tecnoseal 01403MG (Magnesium): Osculati 43.291.02

Dimensions

Dimension	Measurement
Overall Length (l)	105 mm (4.13")
Height (h)	60 mm (2.36")
Base Height (h1)	9 mm (0.35")
Base Diameter (Ø)	94 mm (3.70")
Mounting Diameter (Ø1)	21 mm (0.83")
Mounting Diameter (Ø2)	8.5 mm (0.33")

Key Features

Sacrificial trim tab anode for Honda BF 25–50 HP outboard motors.
Corresponds to Honda OEM references 41107-ZV5-000 and 06412-ZV5-000.
Available in zinc, aluminium and magnesium versions.
Circular base with integrated vertical trim fin.
Overall length: 105 mm.
Overall height: 60 mm.
Base height: 9 mm.
Base diameter: 94 mm.
Additional mounting diameters: 21 mm and 8.5 mm.
Identical dimensions and mounting configuration across all material versions.
Zinc version: Tecnoseal 01403, Osculati 43.291.00, weight 320 g.
Aluminium version: Tecnoseal 01403AL, Osculati 43.291.01, weight 110 g.
Magnesium version: Tecnoseal 01403MG, Osculati 43.291.02, weight 80 g.
