ID
1404348
$ 15.39
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 80 g
- 30 g
- 20 g
The Tecnoseal Honda Small Plate Anode is a sacrificial anode designed for Honda BF 2–100 HP outboard motors manufactured in 1997 and earlier, corresponding to original Honda OEM part number 41106-935-812 and additional Tecnoseal catalogue reference 00912. Available in zinc (01401), aluminium (01401AL) and magnesium (01401MG), all three versions feature an elongated plate with rounded ends, measuring 60 × 23 × 12 mm. The plate has two M5 threaded mounting holes with a centre-to-centre spacing of 25 mm. The zinc version weighs 0.08 kg (0.18 lbs), the aluminium version 0.03 kg (0.07 lbs) and the magnesium version 0.02 kg (0.04 lbs).
- Description
- Ask a Question
-

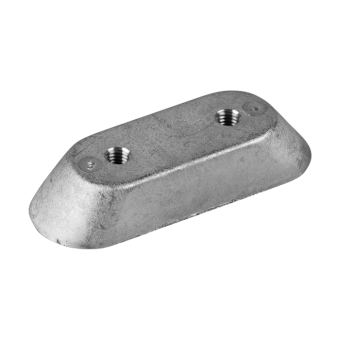

Tecnoseal 41106-935-812 Honda Small Plate Anode for BF 2–100 HP Outboards (1997 & Earlier)
The Tecnoseal Honda Small Plate Anode is a sacrificial anode designed for corrosion protection of compatible Honda BF outboard engine components. According to the Tecnoseal catalogue, it is listed for Honda BF 2–100 HP models manufactured in 1997 and earlier. It corresponds to original Honda OEM part number 41106-935-812 and is also listed under Tecnoseal reference 00912.

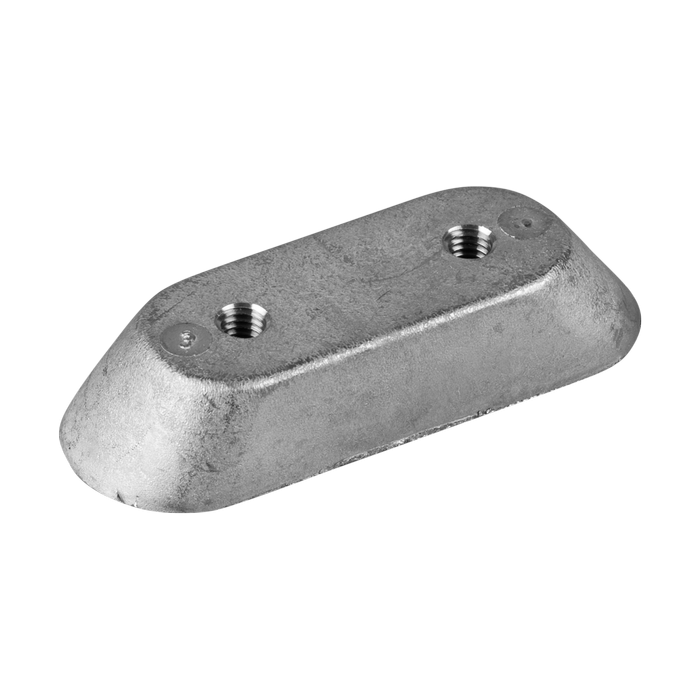

The anode features an elongated plate with rounded ends and two mounting holes. All three material versions measure 60 mm in overall length, 23 mm in width and 12 mm in height. The mounting holes are spaced 25 mm apart, centre to centre, and have an M5 thread. The anode is available in zinc, aluminium and magnesium, with identical dimensions but different weights.
Technical Specifications
Manufacturer Tecnoseal Product Type Small Plate Anode OEM Reference Honda 41106-935-812 Additional Tecnoseal Reference 00912 Engine Compatibility Honda BF 2–100 HP Model Years 1997 and Earlier Available Materials Zinc, Aluminium, Magnesium Mounting Configuration Two M5 Threaded Holes
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 01401 Zinc 43.315.20 0.08 kg (0.18 lbs) 01401AL Aluminium 43.315.24 0.03 kg (0.07 lbs) 01401MG Magnesium Not specified 0.02 kg (0.04 lbs)
OEM and Cross-References
- Honda OEM: 41106-935-812
- Additional Tecnoseal Reference: 00912
- Tecnoseal 01401 (Zinc): Osculati 43.315.20
- Tecnoseal 01401AL (Aluminium): Osculati 43.315.24
Dimensions
Dimension Measurement Overall Length (l) 60 mm (2.36") Width (a) 23 mm (0.91") Height (h) 12 mm (0.47") Mounting Hole Spacing (i) 25 mm (0.98") Mounting Thread (m) M5
Key Features
- Sacrificial small plate anode for Honda BF outboard motors.
- Listed for Honda BF 2–100 HP models manufactured in 1997 and earlier.
- Corresponds to original Honda OEM part number 41106-935-812.
- Additional Tecnoseal catalogue reference: 00912.
- Available in zinc, aluminium and magnesium versions.
- Elongated plate with rounded ends and two mounting holes.
- Identical overall dimensions across all materials: 60 × 23 × 12 mm.
- Mounting hole centre-to-centre spacing: 25 mm.
- Mounting thread: M5.
- Weights: 80 g (zinc), 30 g (aluminium) and 20 g (magnesium).
- Zinc version, Tecnoseal 01401: Osculati 43.315.20.
- Aluminium version, Tecnoseal 01401AL: Osculati 43.315.24.
-
