Tecnoseal 41106-ZV4-650 Honda Small Plate Anode for BF 2–15 HP Outboards (1997–2007)

ID 1404352

$ 12.96

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

30 g
20 g
90 g

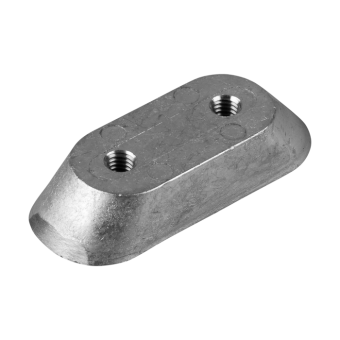

The Tecnoseal Honda Small Plate Anode is a sacrificial anode designed for Honda BF 2–15 HP outboard motors manufactured between 1997 and 2007, corresponding to original Honda OEM part number 41106-ZV4-650. Available in zinc (01402), aluminium (01402AL) and magnesium (01402MG), all three versions feature an elongated plate with rounded ends and a recessed mounting section. The anode measures 62 mm in overall length, 25 mm in width and 14 mm in height, with an additional dimension (b) of 40 mm and two M6 mounting holes spaced 26 mm apart. The zinc version weighs 0.09 kg (90 g), the aluminium version 0.03 kg (30 g) and the magnesium version 0.02 kg (20 g). All three versions share the same dimensions and mounting configuration.

Description
Ask a Question

Tecnoseal 41106-ZV4-650 Honda Small Plate Anode for BF 2–15 HP Outboards (1997–2007)

The Tecnoseal Honda Small Plate Anode is a sacrificial anode designed for corrosion protection of compatible Honda BF outboard engine components. According to the Tecnoseal catalogue, it is suitable for Honda BF 2–15 HP outboard motors manufactured between 1997 and 2007 and corresponds to original Honda OEM part number 41106-ZV4-650.

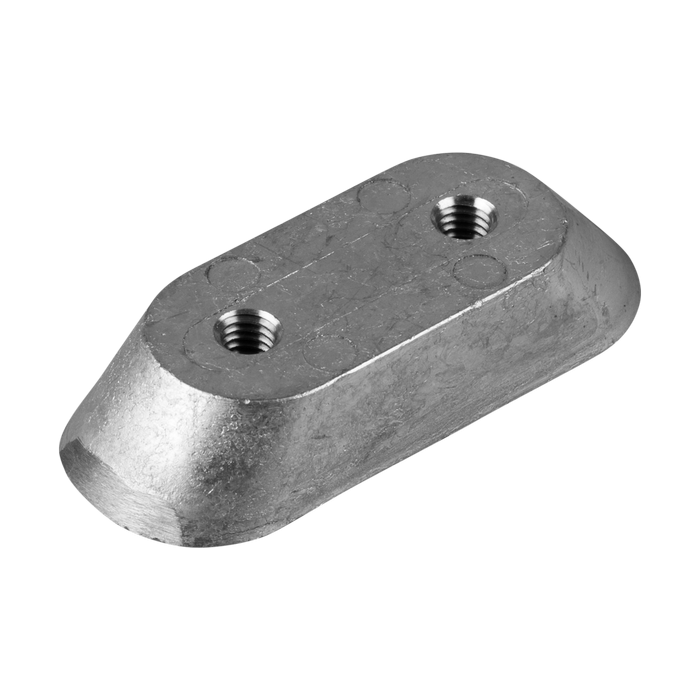

The anode features an elongated plate with rounded ends, a recessed mounting section and two mounting holes. All three versions measure 62 mm in overall length, 25 mm in width and 14 mm in height, with an additional longitudinal dimension (b) of 40 mm. The mounting holes have a centre-to-centre spacing of 26 mm and an M6 thread. The product is available in zinc, aluminium and magnesium versions, with identical dimensions and mounting configurations but different weights.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Small Plate Anode
OEM Reference	Honda 41106-ZV4-650
Engine Compatibility	Honda BF 2–15 HP
Model Years	1997–2007
Available Materials	Zinc, Aluminium, Magnesium
Mounting Configuration	Two M6 Mounting Holes
Mounting Hole Spacing	26 mm

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
01402	Zinc	43.315.21	0.09 kg (0.20 lbs)
01402AL	Aluminium	43.315.22	0.03 kg (0.07 lbs)
01402MG	Magnesium	43.315.23	0.02 kg (0.04 lbs)

OEM and Cross-References

Honda OEM: 41106-ZV4-650
Tecnoseal 01402 (Zinc): Osculati 43.315.21
Tecnoseal 01402AL (Aluminium): Osculati 43.315.22
Tecnoseal 01402MG (Magnesium): Osculati 43.315.23

Dimensions

Dimension	Measurement
Overall Length (l)	62 mm (2.44")
Width (a)	25 mm (0.98")
Longitudinal Dimension (b)	40 mm (1.57")
Height (h)	14 mm (0.55")
Mounting Hole Spacing (i)	26 mm (1.02")
Mounting Thread (m)	M6

Key Features

Sacrificial small plate anode for Honda BF outboard motors.
Listed for Honda BF 2–15 HP models manufactured between 1997 and 2007.
Corresponds to original Honda OEM part number 41106-ZV4-650.
Available in zinc, aluminium and magnesium versions.
Elongated plate with rounded ends and a recessed mounting section.
Overall dimensions: 62 × 25 × 14 mm.
Additional longitudinal dimension: 40 mm.
Two M6 mounting holes with 26 mm centre-to-centre spacing.
Zinc version: Tecnoseal 01402, Osculati 43.315.21, weight 90 g.
Aluminium version: Tecnoseal 01402AL, Osculati 43.315.22, weight 30 g.
Magnesium version: Tecnoseal 01402MG, Osculati 43.315.23, weight 20 g.
