ID
1404344
$ 15.96
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 20 g
- 5 g
- 8 g
The Tecnoseal Honda Washer Anode is a sacrificial anode designed for Honda 8–20 HP outboard engines, corresponding to original OEM part number 41106-ZW-000. Available in zinc (01400), aluminium (01400AL) and magnesium (01400MG), all three versions feature a circular washer-shaped body with a countersunk central mounting hole, measuring 24 mm in outer diameter, 7 mm in height and 7 mm in through-hole diameter. The zinc version weighs 0.020 kg (20 g), the aluminium version 0.008 kg (8 g) and the magnesium version 0.005 kg (5 g). Additional Tecnoseal catalogue references include 00824, 01109, 01128, 01251, 01258 and 01756.
- Description
- Ask a Question
-

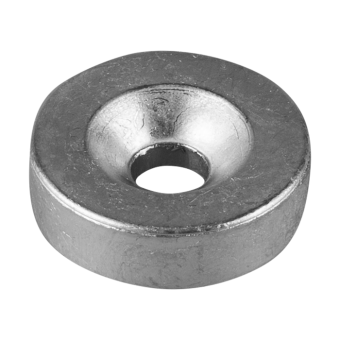

Tecnoseal 41106-ZW-000 Honda Washer Anode Ø24 x 7 mm for 8–20 HP Outboards
The Tecnoseal Honda Washer Anode is a sacrificial anode designed for corrosion protection of compatible Honda 8–20 HP outboard engine components. It corresponds to original Honda OEM part number 41106-ZW-000 and is available in three material versions: zinc (01400), aluminium (01400AL) and magnesium (01400MG).

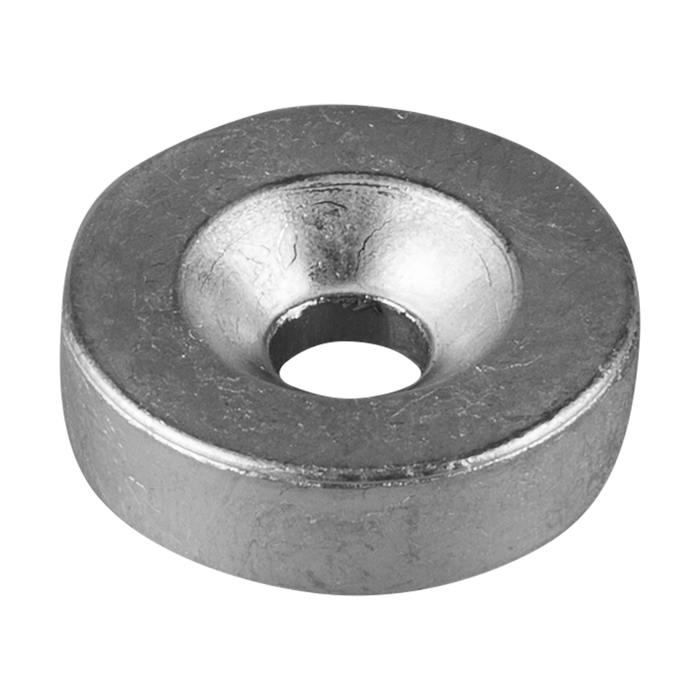

The anode features a circular washer-shaped body with a countersunk central mounting hole. All three versions share the same dimensions: 24 mm outer diameter, 7 mm height and 7 mm through-hole diameter. The catalogue weights are 0.020 kg for zinc, 0.008 kg for aluminium and 0.005 kg for magnesium.
Technical Specifications
Manufacturer Tecnoseal Product Type Washer Anode OEM Reference Honda 41106-ZW-000 Compatibility Honda 8–20 HP Outboard Engines Available Materials Zinc, Aluminium, Magnesium Body Shape Circular Washer with Countersunk Mounting Hole Outer Diameter 24 mm Height 7 mm Mounting Hole Diameter 7 mm
Additional Tecnoseal Catalogue References
The Tecnoseal catalogue also lists the following references under "same as":
- 00824
- 01109
- 01128
- 01251
- 01258
- 01756
Available Versions
Tecnoseal Part Number Material Weight 01400 Zinc 0.020 kg (0.04 lbs) 01400AL Aluminium 0.008 kg (0.02 lbs) 01400MG Magnesium 0.005 kg (0.01 lbs)
Dimensions
Dimension Measurement Height (h) 7 mm (0.28") Outer Diameter (Ø) 24 mm (0.94") Through-Hole Diameter (Ø1) 7 mm (0.28")
Key Features
- Sacrificial washer anode for Honda 8–20 HP outboard engines.
- Corresponds to original Honda OEM part number 41106-ZW-000.
- Available in zinc, aluminium and magnesium versions.
- Circular washer-shaped body with a countersunk mounting hole.
- Identical external dimensions across all materials: Ø24 x 7 mm.
- Central mounting hole diameter: 7 mm.
- Weights: 20 g (zinc), 8 g (aluminium) and 5 g (magnesium).
- Additional Tecnoseal references: 00824, 01109, 01128, 01251, 01258 and 01756.
-
