The Marco VP45-S self-priming electric vane pump is a 24V unit rated for 45 L/min (free discharge/without back pressure) with a 1.2 bar cut-off pressure and integrated bypass protection. It features 3/4 inch connections (19 mm) including 3/4 inch BSPP, draws 4 A, and includes an on/off switch plus a motor cover with EMI filter and a dual connection option for a hose holder. Construction details include an aluminum body, resin rotor and blades, a stainless steel spindle, FKM seals, and an NBR O-ring; dimensions are 202 x 154 x 131 mm (H x W x L) and shipping weight is 2.80 kg.
- Description
- Ask a Question
-

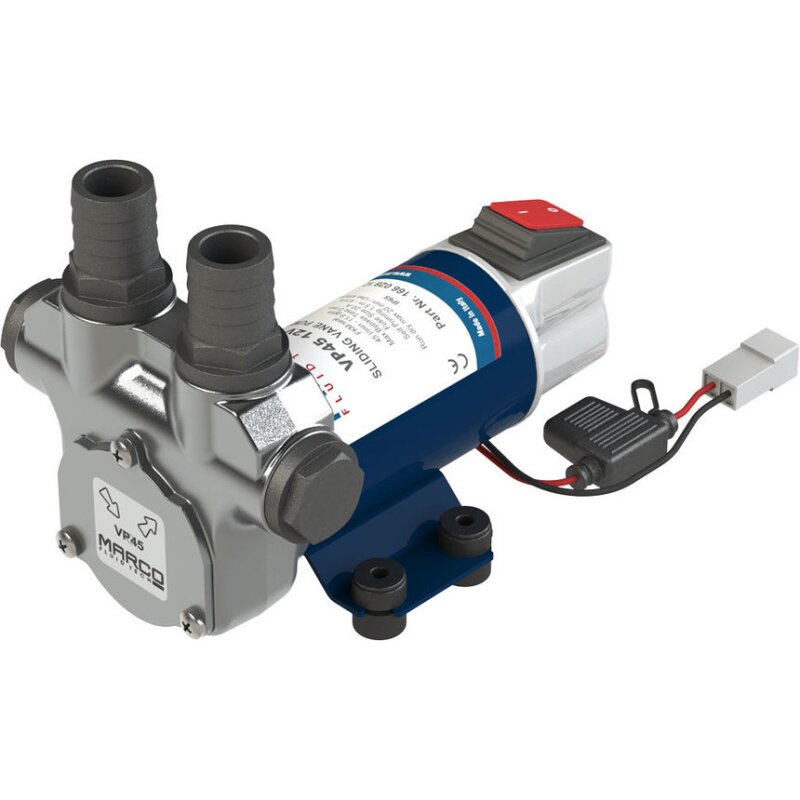

Marco VP45-S 24V Self-Priming Vane Pump
The Marco VP45-S is a self-priming, electric vane pump designed for diesel transfer. It provides steady flow for transfer applications and uses an integrated bypass to help protect the system against excessive pressure build-up.
Technical Specifications
Brand MARCO Model VP45-S Product Portfolio Diesel transfer pumps Voltage 24V Current Consumption 4 A Output 45 L/min Flow Rating Condition Free discharge / without back pressure Cut-Off Pressure 1.2 bar Self-Priming Up to 2 m Connection 3/4 inch BSPP Connections (Scope of Delivery) 3/4 inch (19 mm) Dimensions (H x W x L) 202 x 154 x 131 mm Shipping Weight 2.80 kg Materials Aluminum body; resin rotor and blades; stainless steel spindle; FKM seals; NBR O-ring
Features
- Self-priming electric vane pump with integrated bypass valve
- Integrated bypass helps protect against excessive pressure build-up
- On/off switch
- Dual connection option for hose holder
- Motor cover with EMI filter
Product Details
If you are unsure about material compatibility with the pumped liquid, confirm compatibility of the pump materials in contact with the liquid before putting the pump into operation.
-
