ID
1353934
$ 246.11
1-2 weeks delivery time
-
+
The Marco VP45-N electric vane pump is a 24V unit rated for 45 L/min (free discharge/without back pressure) with a 1.2 bar cut-off pressure and 4A current draw. It is self-priming up to 2 m and includes an integrated bypass valve to protect against excessive pressure build-up. The pump features a 3/4 inch (19 mm) connection (listed as 3/4 inch BSPP), an aluminum body, resin rotor and blades, a stainless steel spindle, FKM seals, and an NBR O-ring; dimensions are 160 x 153 x 131 mm with a shipping weight of 2.50 kg.
- Description
- Ask a Question
-

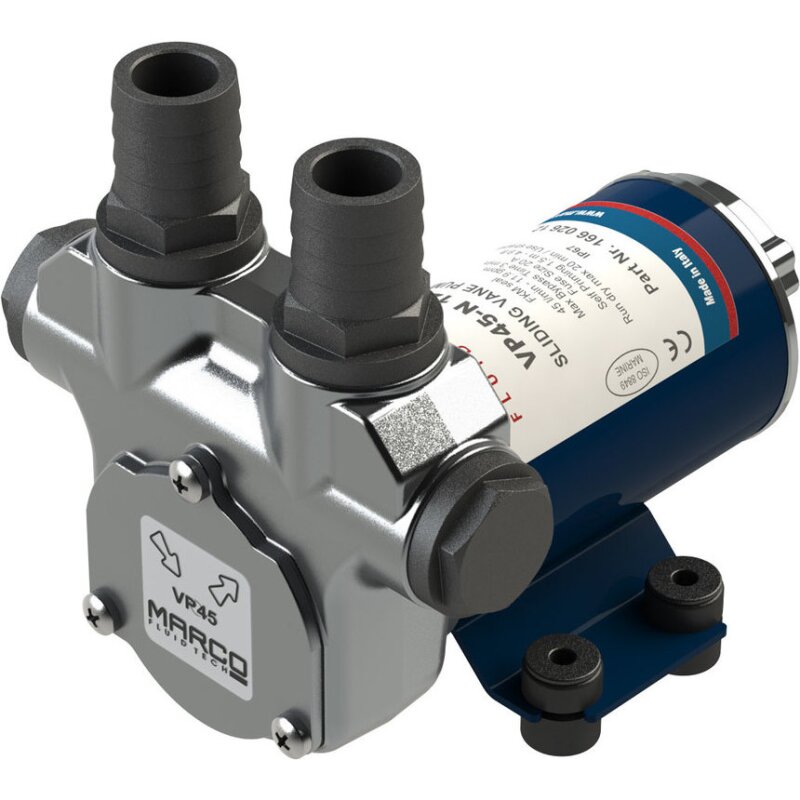

Marco VP45-N Self-Priming Vane Pump, 24V
The Marco 16602613 VP45-N is a self-priming electric vane pump intended for diesel transfer pump applications. It features an integrated bypass valve to help protect the system from excessive pressure build-up and is supplied with 3/4 inch connection sizing.
Technical Specifications
Flow Rate (Free Discharge) 45 L/min Cut-Off Pressure 1.2 bar Voltage 24V Current Consumption 4 A Self-Priming Up to 2 m Connection (Listed) 3/4 inch (19 mm) Connection 3/4 inch BSPP Dimensions (H x W x L) 160 x 153 x 131 mm Materials Aluminum body; resin rotor and blades; stainless steel spindle; FKM seals; NBR O-ring Motor Cover EMI filter Shipping Weight 2.50 kg Product Portfolio Diesel transfer pumps Brand MARCO
Features
- Flow rate of 45 liters per minute with free discharge (without back pressure)
- Self-priming up to 2 m
- Integrated bypass protects against excessive pressure build-up
- Two connection options for hose holder
- Motor cover with EMI filter
Product Details
If you are unsure about material compatibility with the liquid being pumped, verify compatibility of all wetted materials before putting the pump into operation.
-
