ID
1353941
$ 576.98
1-2 weeks delivery time
-
+
The Marco UP10-MS/P gear pump is a 12V unit rated for 18 L/min (free discharge/without back pressure) with a cut-off pressure of 8 bar. It is self-priming up to 3 m, draws 30 A, and uses 3/8 inch connections (3/8 inch BSPP; 9.5 mm noted). Construction includes a nickel-plated brass housing, stainless steel spindle, PEEK helical gears, and an FKM seal; dimensions are 240 x 109 x 173 mm with a 4.70 kg shipping weight.
- Description
- Ask a Question
-

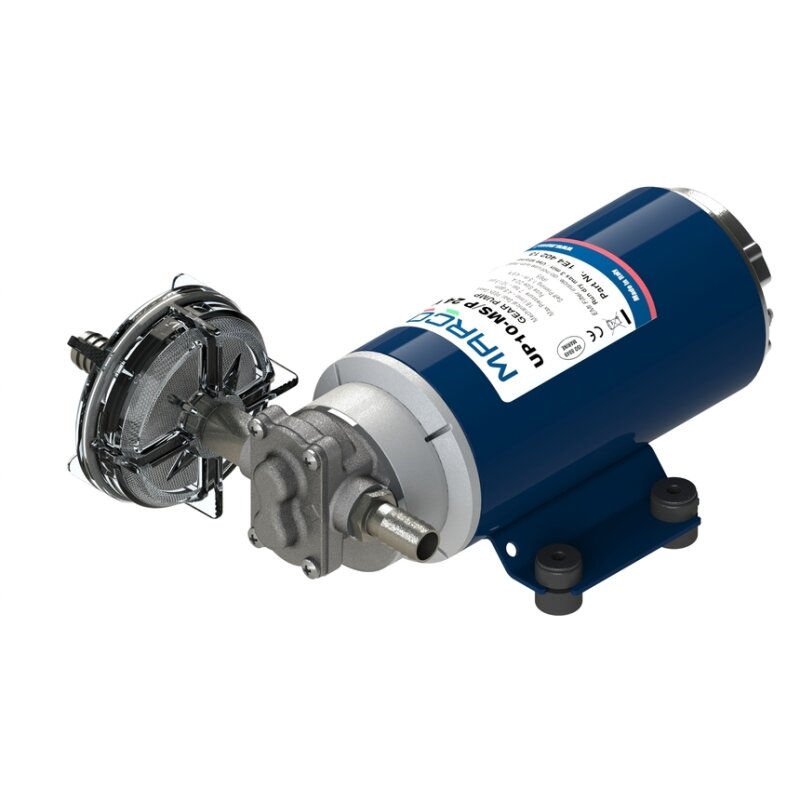

Marco UP10-MS/P 12V Helical Gear Pump
The Marco 1F440212 UP10-MS/P is a self-priming electric gear pump designed for heavy-duty operation and applications involving aggressive liquids, using PEEK helical gears and an FKM seal.
Technical Specifications
Brand MARCO Model UP10-MS/P Voltage 12V Output 18 L/min Flow Condition Free discharge / without back pressure Cut-Off Pressure 8 bar Self-Priming Up to 3 m Current Consumption 30 A Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM Gear Type PEEK helical gear Dimensions (H x W x L) 240 x 109 x 173 mm Shipping Weight 4.70 kg Product Portfolio Water Pressure Systems
Features
- Self-priming design (up to 3 m)
- PEEK helical gear electric pump design
- Nickel-plated brass housing with stainless steel spindle
- FKM seal for use with aggressive liquids (material compatibility should be verified for the pumped liquid)
Product Details
If there is any uncertainty regarding material compatibility between the pump and the liquid being pumped, compatibility should be confirmed before operation.
-
