ID
1353939
$ 515.03
1-2 weeks delivery time
-
+
The Marco UP9-MS/P gear pump (part number 1F410212) is a 12V DC self-priming unit rated for 12 L/min free discharge and a cut-off pressure of 6 bar. It features 3/8 inch connections (3/8 inch BSPP / 9.5 mm), draws 18A, and is self-priming up to 3 m. Construction includes a nickel-plated brass housing, stainless steel spindle, PEEK helical gears, and an FKM seal; shipping weight is 3.50 kg and dimensions are 218 x 106 x 173 mm (H x W x L).
- Description
- Ask a Question
-

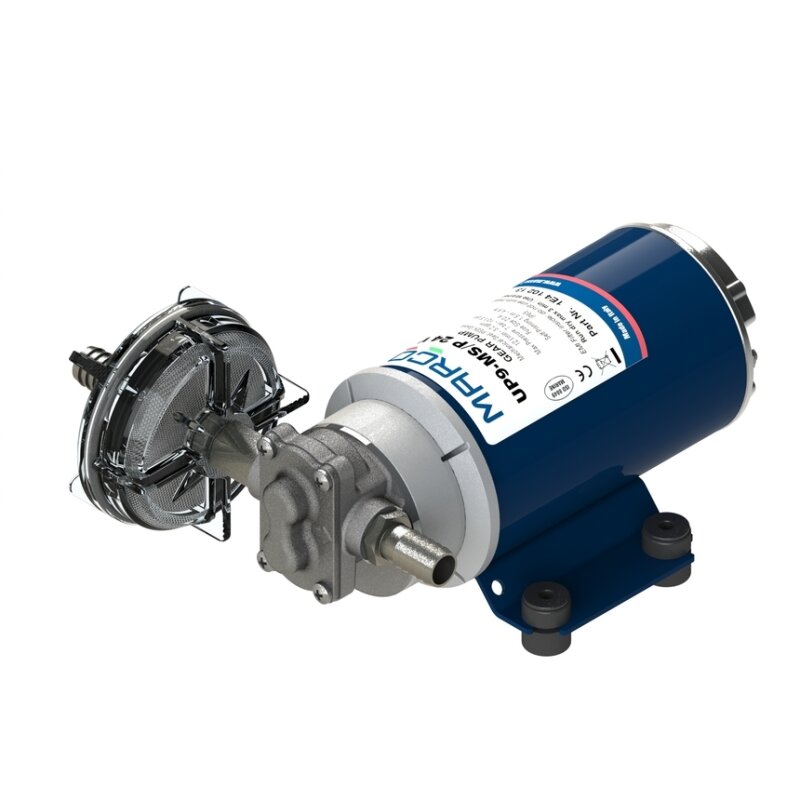

Marco UP9-MS/P 12V Gear Pump Assembly
The Marco UP9-MS/P is a 12V DC gear pump designed for heavy-duty operation and for pumping aggressive liquids. This self-priming electric pump uses PEEK helical gears and is built with corrosion-resistant materials for demanding fluid-transfer applications.
Features
- Flow rate: 12 liters per minute (free discharge / without back pressure)
- Self-priming: up to 3 m
- Designed for use: pumping aggressive liquids and heavy-duty operation
- Materials: nickel-plated brass housing, stainless steel spindle, PEEK helical gears, FKM seal
Technical Specifications
Output 12 l/min Cut-Off Pressure 6 bar Voltage 12V DC Current Consumption 18 A Self-Priming Up to 3 m Connection 3/8 inch BSPP Additional Connection Information 3/8 inch (9.5 mm) Dimensions (H x W x L) 218 x 106 x 173 mm Shipping Weight 3.50 kg Brand MARCO Product Portfolio Water Pressure Systems
Product Details
If there is any uncertainty regarding material compatibility between the pumped liquid and the pump components in contact with the liquid, verify compatibility before putting the pump into operation.
-
