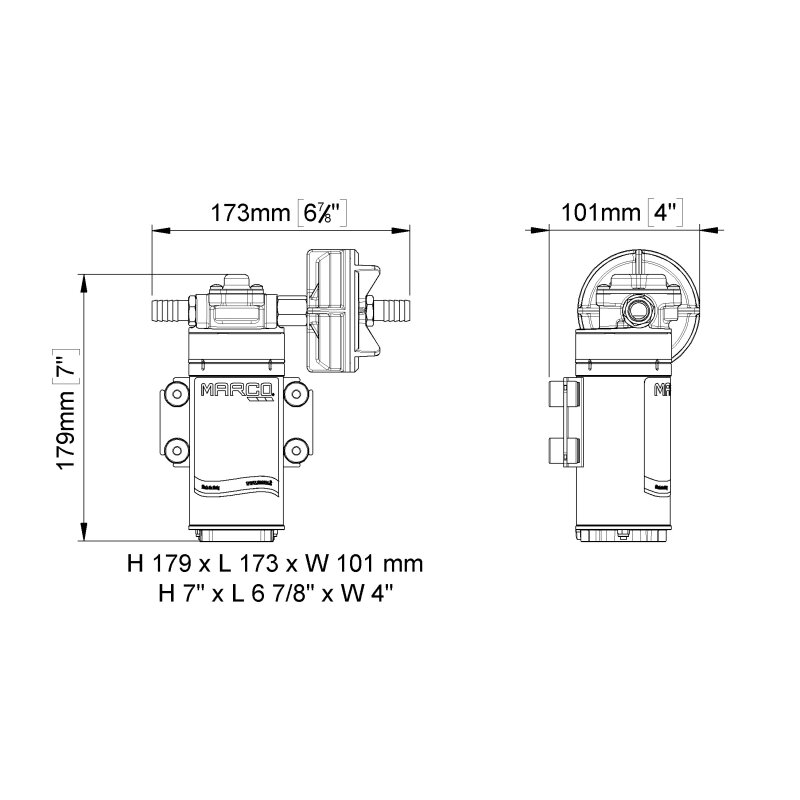

The MARCO UP8-MS/P electric gear pump is a 12V unit rated for 10 L/min flow (free discharge/without back pressure) with a cut-off pressure of 4 bar. It is self-priming up to 3 m, draws 12 A, and uses 3/8 inch (9.5 mm) connections with a 3/8 inch BSPP port. Construction includes a nickel-plated brass housing, stainless steel spindle, PEEK helical gears, and an FKM seal; overall size is 179 x 101 x 173 mm and shipping weight is 2.40 kg.
- Description
- Ask a Question
-
MARCO UP8-MS/P 12V Electric Gear Pump
The MARCO 1F409112 is a self-priming electric gear pump designed for transferring liquids in demanding applications. It uses a helical gear design and is specified for use with aggressive liquids and heavy-duty operation.
Technical Specifications
Output 10 L/min (free discharge/without back pressure) Cut-Off Pressure 4 bar Voltage 12V Current Consumption 12 A Self-Priming Up to 3 m Connection (Scope of Delivery) 3/8 inch (9.5 mm) Port Connection 3/8 inch BSPP Dimensions (H x W x L) 179 x 101 x 173 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Gear Type PEEK helical gears Seal Material FKM Product Portfolio Water Pressure Systems Shipping Weight 2.40 kg
Features
- Flow rate of 10 liters per minute with free discharge/without back pressure
- Self-priming up to 3 m
- 3/8 inch (9.5 mm) connections (scope of delivery)
- Nickel-plated brass housing, stainless steel spindle, and FKM seal
- PEEK helical gear electric pump design
- Specified as ideal for pumping aggressive liquids and for heavy-duty operation
Product Details
If you are unsure about material compatibility between the pump components and the liquid being pumped, confirm compatibility before putting the pump into operation.
-
