ID
1353942
$ 576.98
1-2 weeks delivery time
-
+
The MARCO UP10-MS/P gear pump is a 24V unit rated for 18 L/min (at free discharge/without back pressure) with an 8 bar cut-off pressure. It is self-priming up to 3 m, draws 15 A, and uses 3/8 inch connections (listed as 3/8 inch / 9.5 mm and 3/8 inch BSPP). The pump features a nickel-plated brass housing, stainless steel spindle, PEEK helical gears, and an FKM seal; dimensions are 240 x 109 x 173 mm (H x W x L) and shipping weight is 4.70 kg.
- Description
- Ask a Question
-

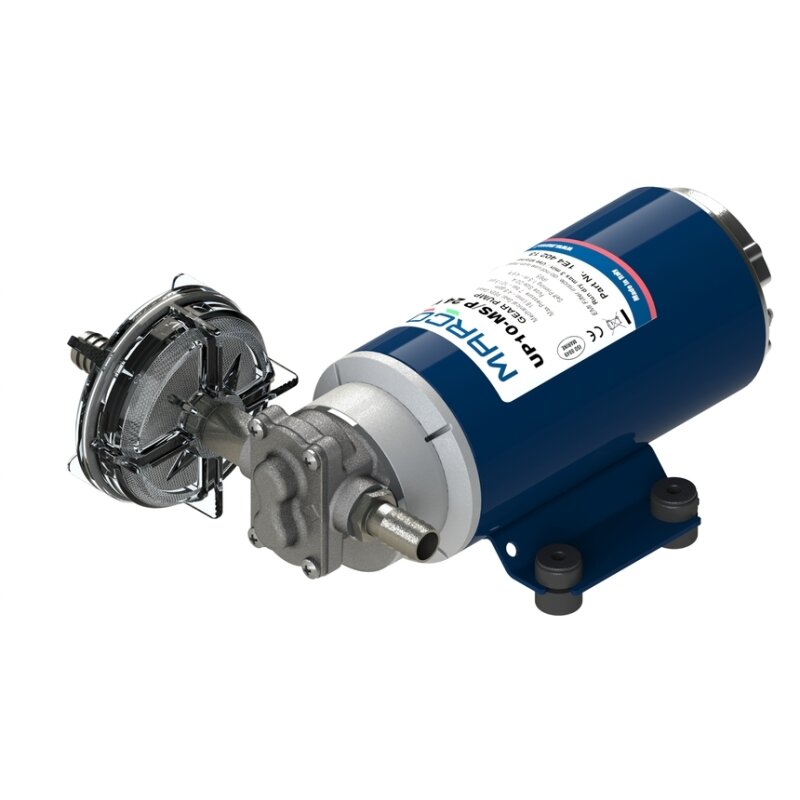

UP10-MS/P 24V Helical Gear Pump Assembly
The MARCO 1F440213 UP10-MS/P is a self-priming electric gear pump designed for heavy-duty operation, including pumping aggressive liquids. It combines a compact metal housing with helical gear technology and 3/8-inch connections for integration into water pressure system applications.
Technical Specifications
Flow Rate 18 L/min (free discharge / without back pressure) Cut-Off Pressure 8 bar Voltage 24V Current Consumption 15 A Self-Priming Up to 3 m Connection 3/8 inch (9.5 mm) Connection Standard 3/8 inch BSPP Dimensions (H x W x L) 240 x 109 x 173 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Gear Type PEEK helical gears Seal Material FKM Shipping Weight 4.70 kg Brand MARCO Product Portfolio Water Pressure Systems
Features
- Self-priming design (up to 3 m)
- 18 L/min output at free discharge (without back pressure)
- 3/8-inch connection size
- Nickel-plated brass housing with stainless steel spindle
- FKM seal and PEEK helical gears
- Suitable for pumping aggressive liquids and heavy-duty operation
Product Details
If you are unsure about material compatibility between the pump components and the liquid being pumped, verify compatibility before commissioning the pump.
-
