ID
1172837
$ 255.31
1-2 weeks delivery time
-
+
The Marco VP45-S self-priming vane pump (part no. 16602812) is a 12V electric transfer pump designed for continuous operation. It delivers up to 45 L/min (45.12 L/min stated capacity) with a cut-off pressure of 1.2 bar, draws 8A, and includes an integrated ON/OFF switch plus an internal bypass valve for overpressure protection. The unit has an aluminum body with resin rotor and blades, a stainless steel spindle, FKM seals, and an NBR O-ring, with 3/4 inch (19 mm) connections specified as 3/4 inch BSPP; dimensions are 202 x 154 x 131 mm and shipping weight is 2.80 kg (EAN 8022278608919).
- Description
- Ask a Question
-

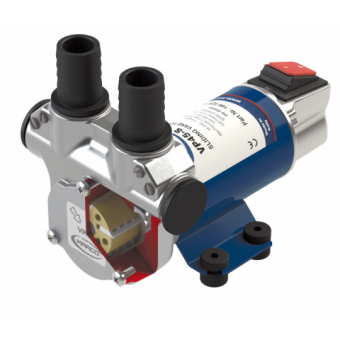

VP45-S Self-Priming Vane Transfer Pump
The Marco VP45-S is a self-priming electric vane pump built for dependable transfer duties and continuous operation. It combines an integrated ON/OFF switch with an internal bypass valve to help protect the pump from excessive pressure build-up.
Technical Specifications

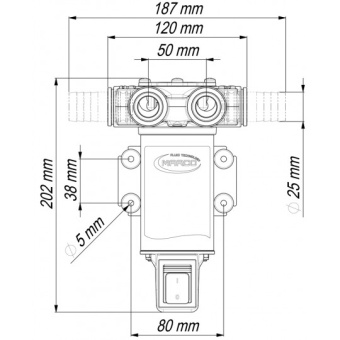

Brand Marco Part Number 16602812 Model VP45-S Type Self-priming vane pump Voltage 12V Current 8 A Flow Rate (Free Discharge) 45 L/min Stated Capacity 45.12 L/min Cut-Off Pressure 1.2 bar Self-Priming Up to 2 m Connection Size 3/4 inch (19 mm) Connection Thread 3/4 inch BSPP Dimensions (H x W x L) 202 x 154 x 131 mm Shipping Weight 2.80 kg Materials Aluminum body; resin rotor and blades; stainless steel spindle; FKM seals; NBR O-ring Product Portfolio Diesel transfer pumps Additional Part Number 1600030 EAN 8022278608919
Features
- Integrated ON/OFF switch
- Integrated bypass valve to protect against excessive pressure build-up
- Dual connection option
- Motor cover with EMI filter
- Designed for continuous duty cycles
Product Details
This pump is described as suitable for a range of applications and is specified with 3/4 inch (19 mm) connections. Flow rate is stated at free discharge (without back pressure).
-
