ID
1353936
$ 1,065.94
1-2 weeks delivery time
-
+

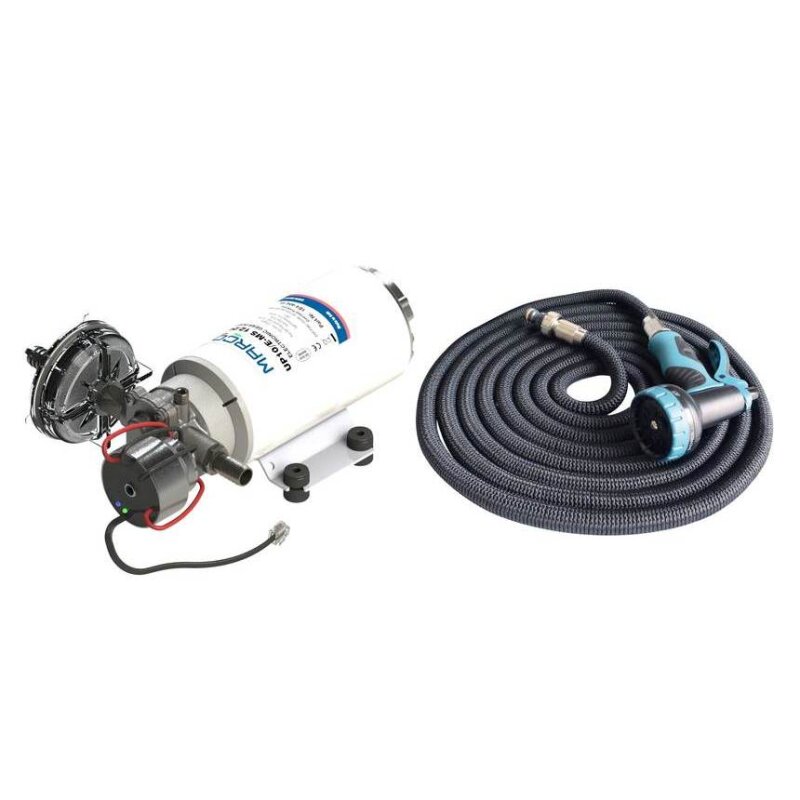

The MARCO DP10/E-MS sensor deck wash pump kit is a 12/24V gear pump rated at 18 L/min (free discharge) with an 8 bar cut-off pressure and electronic pressure sensor. It is self-priming up to 3 m and includes a cleaning kit with a 15 m (50 ft) retractable hose and nozzle. The pump has 3/4 inch connections (3/4 inch BSPP / 19 mm), draws 26 A, measures 261 x 109 x 193 mm, and has a nickel-plated brass housing and connections with a stainless steel spindle, FKM seals, and an NBR O-ring.
- Description
- Ask a Question
-
DP10/E-MS Sensor Deck Wash Gear Pump Kit
The MARCO 1E483115 is a gear pump deck wash kit designed for washdown applications, supplied with a retractable hose and nozzle. It features an electronic pressure sensor and a non-return valve, and is specified for self-priming suction installations.
Technical Specifications
Type Gear pump Voltage 12 / 24V Voltage (table value) 12V Flow Rate 18 L/min (free discharge / without back pressure) Cut-Off Pressure 8 bar Self-Priming Up to 3 m Current Consumption 26 A Connection 3/4 inch (19 mm) Connection (table value) 3/4 inch BSPP Dimensions (H x W x L) 261 x 109 x 193 mm Housing and Connections Nickel-plated brass Spindle Stainless steel Seals FKM O-Ring NBR Gear Material PEEK helical gear Shipping Weight 6.70 kg Product Portfolio Water Pressure Systems Brand MARCO
Features
- Electronic pressure sensor
- Non-return valve
- Self-priming up to 3 m
- 18 L/min output at free discharge (no back pressure)
Product Details
- Supplied as a cleaning kit with 15 m / 50 ft retractable hose and nozzle
- Nickel-plated brass housing and connections with stainless steel spindle
- FKM seals and NBR O-ring
-
