The Marco 1F409113 UP8-MS/P gear pump is a 24V DC self-priming electric pump rated for 10 L/min (free discharge) with a 4 bar cut-off pressure. It features 3/8 inch connections (3/8 inch BSPP listed) and draws 6 A. Construction includes a nickel-plated brass housing, stainless steel spindle, PEEK helical gears, and an FKM seal; self-priming capability is up to 3 m. Overall dimensions are 179 x 101 x 173 mm, with a shipping weight of 2.40 kg.
- Description
- Ask a Question
-

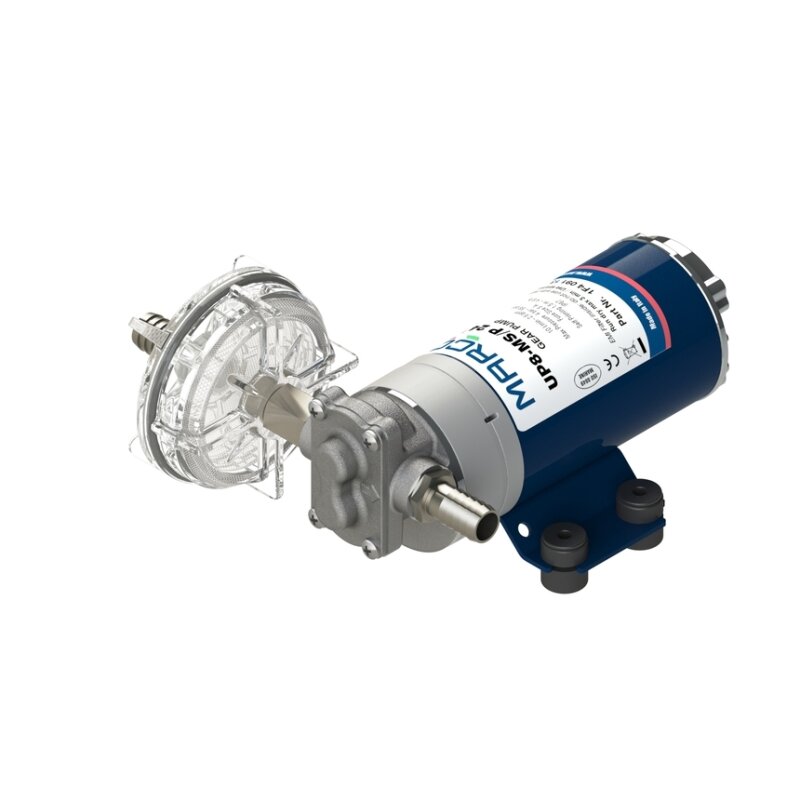

Marco UP8-MS/P Self-Priming Gear Pump (1F409113)
The Marco 1F409113 UP8-MS/P is a 24V DC gear pump designed for heavy-duty operation, with PEEK helical gears and materials suited for pumping aggressive liquids. It is self-priming and provides a free-discharge flow rate of 10 L/min, making it suitable for applications where consistent transfer performance is required.
Technical Specifications
Type Gear pump (PEEK helical gear) Voltage 24V Flow Rate (Free Discharge) 10 L/min Cut-Off Pressure 4 bar Self-Priming Up to 3 m Current Consumption 6 A Connection 3/8 inch (9.5 mm); 3/8 inch BSPP Materials Nickel-plated brass housing; stainless steel spindle; FKM seal Dimensions (H x W x L) 179 x 101 x 173 mm Shipping Weight 2.40 kg Brand Marco Product Portfolio Water Pressure Systems
Features
- Self-priming electric gear pump
- 10 L/min flow rate with free discharge (no back pressure)
- Designed for heavy-duty operation
- PEEK helical gears with nickel-plated brass housing and stainless steel spindle
- FKM seal
Product Details
If there are uncertainties regarding material compatibility between the pump and the liquid being pumped, compatibility should be clarified before operation.
-
