The MARCO UP9-MS/P electric gear pump is a 24V unit rated for 12 L/min (free discharge) with a cutoff pressure of 6 bar. It is self-priming up to 3 m, draws 9 A, and uses 3/8 inch connections (3/8 inch BSPP; 9.5 mm). The pump features a nickel-plated brass housing, stainless steel spindle, PEEK helical gears, and an FKM seal, with dimensions of 218 x 106 x 173 mm and a shipping weight of 3.50 kg.
- Description
- Ask a Question
-

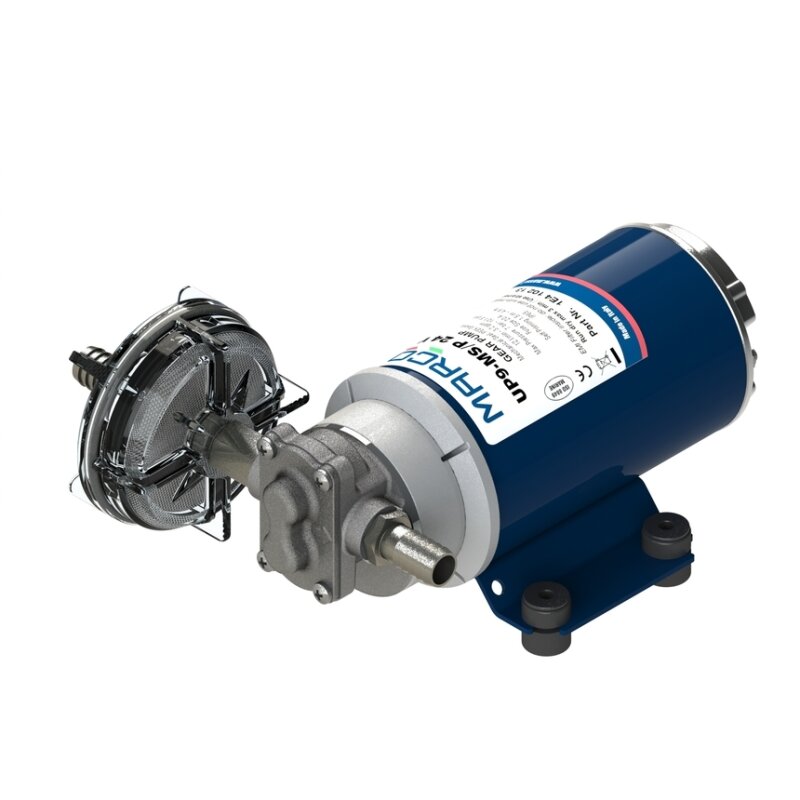

UP9-MS/P 24V Electric Gear Pump Assembly
The MARCO 1F410213 UP9-MS/P is a self-priming electric gear pump designed for heavy-duty operation, including pumping aggressive liquids where suitable material compatibility is confirmed. It combines a compact build with robust internal components and standardized threaded connections.
Technical Specifications
Flow Rate (Free Discharge) 12 L/min Cutoff Pressure 6 bar Voltage 24V Current Consumption 9 A Self-Priming Up to 3 m Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM Gear Type PEEK helical gear Dimensions (H x W x L) 218 x 106 x 173 mm Shipping Weight 3.50 kg Product Portfolio Water Pressure Systems
Features
- 12 L/min flow rate at free discharge (without back pressure)
- Self-priming up to 3 m
- 3/8 inch connection size
- Nickel-plated brass housing with stainless steel spindle
- PEEK helical gears and FKM seal
- Suitable for heavy-duty operation and use with aggressive liquids where compatible
Product Details
If there is any uncertainty about material compatibility between the pump components and the liquid being pumped, compatibility should be clarified before putting the pump into operation.
-
