ID
1353933
$ 246.11
1-2 weeks delivery time
-
+
The Marco VP45-N electric vane pump (part number 16602612) is a 12V self-priming unit rated for 45 L/min (free discharge) with a cut-off pressure of 1.2 bar and current draw of 8 A. It includes an integrated bypass valve, 3/4 inch connections (3/4 inch BSPP, 19 mm), and a motor cover with an EMI filter. Construction includes an aluminum body, resin rotor and blades, a stainless steel spindle, FKM seals, and an NBR O-ring; dimensions are 160 x 153 x 131 mm with a shipping weight of 2.50 kg.
- Description
- Ask a Question
-

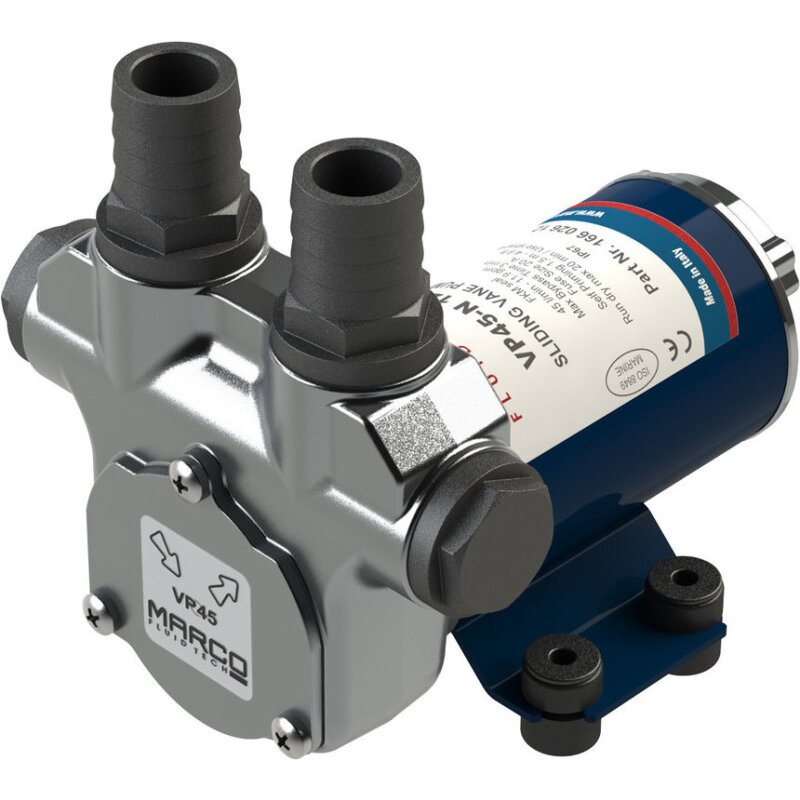

VP45-N Self-Priming Electric Vane Pump (12V)
The Marco VP45-N (part number 16602612) is a self-priming electric vane pump with an integrated bypass valve to help protect against excessive pressure build-up. It is listed in the brand portfolio for diesel transfer pumps and is built with specified materials (including FKM and NBR sealing elements) that should be checked for compatibility with the pumped liquid.
Technical Specifications
Voltage 12V Flow Rate 45 L/min (free discharge / without back pressure) Cut-Off Pressure 1.2 bar Self-Priming Up to 2 m Current Consumption 8 A Connection 3/4 inch BSPP Connections Included / Scope of Delivery 3/4 inch (19 mm) Dimensions (H x W x L) 160 x 153 x 131 mm Shipping Weight 2.50 kg Body Material Aluminum Rotor and Blades Material Resin Spindle Material Stainless steel Seals FKM O-Ring NBR
Features
- Self-priming electric vane pump with integrated bypass valve
- Integrated bypass helps protect against excessive pressure build-up
- Two connection options for hose holder
- Motor cover with EMI filter
Product Details
- Listed in the MARCO product portfolio: diesel transfer pumps
- Verify material compatibility of wetted components with the pumped liquid before operation
-
