The MARCO 16602412 VP45-K vane pump is a 12V electric, self-priming transfer pump rated at 45 L/min (free discharge) with a 1.2 bar cut-off pressure and an integrated bypass for overpressure protection. It draws 8A and uses 3/4-inch connections (listed as 19 mm and 3/4 inch BSPP). Construction includes an aluminum body, resin rotor and blades, a stainless steel spindle, FKM seals, and an NBR O-ring; dimensions are 210 x 165 x 131 mm and shipping weight is 7.70 kg.
- Description
- Ask a Question
-

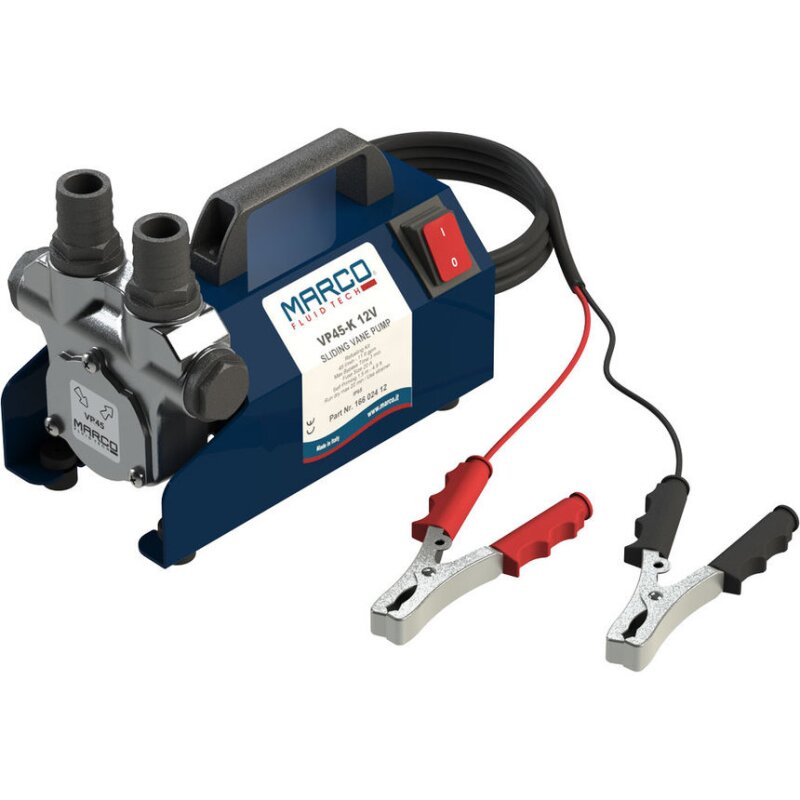

MARCO VP45-K 12V Electric Vane Transfer Pump
The MARCO VP45-K is an electric, self-priming vane pump designed for transfer applications and supplied as a complete set for refueling. It features an integrated bypass valve to help protect the system from excessive pressure build-up and includes an On/Off switch for straightforward operation.
Technical Specifications
Model VP45-K Voltage 12V Flow Rate 45 L/min (free discharge / without back pressure) Cut-Off Pressure 1.2 bar Self-Priming Up to 2 m Current Consumption 8 A Connection 3/4 inch (19 mm) Connection (Listed) 3/4 inch BSPP Dimensions (H x W x L) 210 x 165 x 131 mm Body Material Aluminum Rotor and Blades Resin Spindle Material Stainless steel Seals / O-Ring FKM seals; NBR O-ring Product Portfolio Diesel transfer pumps Shipping Weight 7.70 kg
Features
- Electric vane pump with integrated bypass for overpressure protection
- Self-priming capability up to 2 m
- On/Off switch
- Dual connection option for hose holder
- Motor cover with EMI filter
- Complete set for refueling
Product Details
Materials in contact with the pumped liquid include an aluminum body, resin rotor and blades, a stainless steel spindle, FKM seals, and an NBR O-ring. If you are unsure about material compatibility with your pumped medium, confirm suitability before operation.
-
