ID
1353929
$ 322.71
1-2 weeks delivery time
-
+
The MARCO VP45 electric vane pump (16602012) is a 12V unit for diesel transfer with a free-discharge flow rate of 45 L/min and a cut-off pressure of 1.2 bar. It is self-priming up to 2 m and includes an integrated bypass to protect against excessive pressure build-up. Connections are 3/4 inch (19 mm) and specified as 3/4 inch BSPP; current consumption is 8 A. Construction includes an aluminum body, resin rotor and blades, stainless steel spindle, FKM seals, and an NBR O-ring; dimensions are 210 x 165 x 131 mm and shipping weight is 4.10 kg.
- Description
- Ask a Question
-

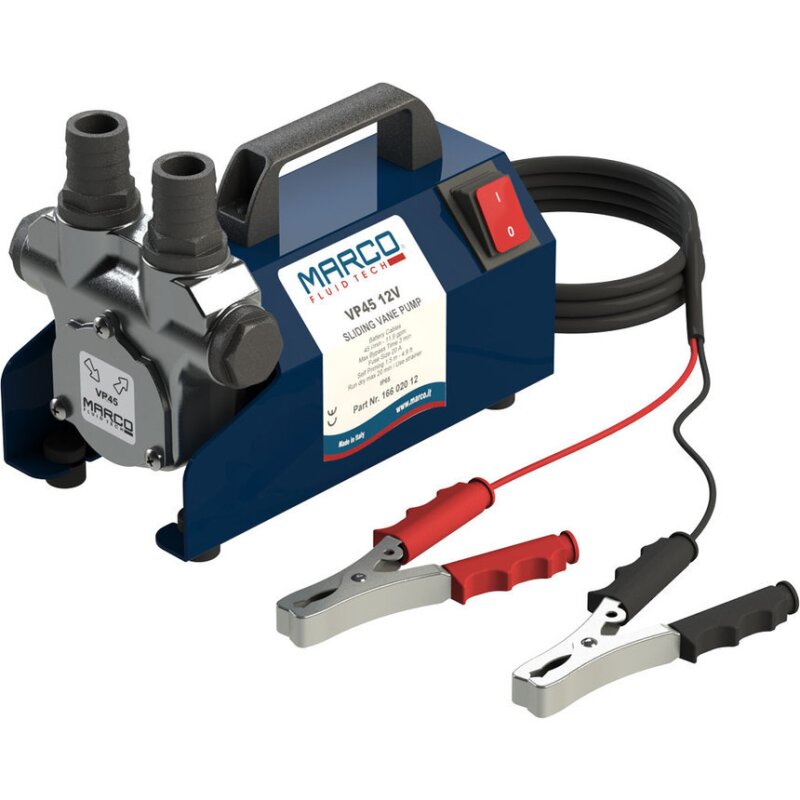

VP45 12V Electric Vane Transfer Pump
The MARCO 16602012 VP45 is a self-priming electric vane pump designed for diesel transfer. An integrated bypass valve helps protect the pump against excessive pressure build-up, and the unit includes an on/off switch for straightforward operation.
Technical Specifications
Brand MARCO Product Portfolio Diesel Transfer Pumps Voltage 12V Output 45 L/min Flow Condition Free discharge (without back pressure) Cut-Off Pressure 1.2 bar Self-Priming Up to 2 m Current Consumption 8 A Connection 3/4 inch (19 mm) Thread Connection 3/4 inch BSPP Dimensions (H x W x L) 210 x 165 x 131 mm Materials Aluminum body; resin rotor and blades; stainless steel spindle; FKM seals; NBR O-ring Shipping Weight 4.10 kg
Features
- Self-priming electric vane pump with integrated bypass valve
- Integrated bypass protects against excessive pressure build-up
- On/off switch
- Dual connection option for hose holder
- Motor cover with EMI filter
- Portable kit
Product Details
If you are unsure about material compatibility with the pumped liquid, verify compatibility of all wetted materials before putting the pump into operation.
-
