The MARCO UP2/OIL gear pump is a 24V electric self-priming unit for transferring oils or other viscous liquids, rated at 3.3 L/min (free outlet) with a cut-off pressure of 1.5 bar. It includes 3/8 inch connections (3/8 inch BSPP / 9.5 mm) and draws 1.3 A. The pump features a nickel-plated brass housing, bronze gears, a stainless steel shaft, FKM seals, and NBR O-rings, with dimensions of 126 x 76 x 112 mm and a shipping weight of 1.60 kg.
- Description
- Ask a Question
-

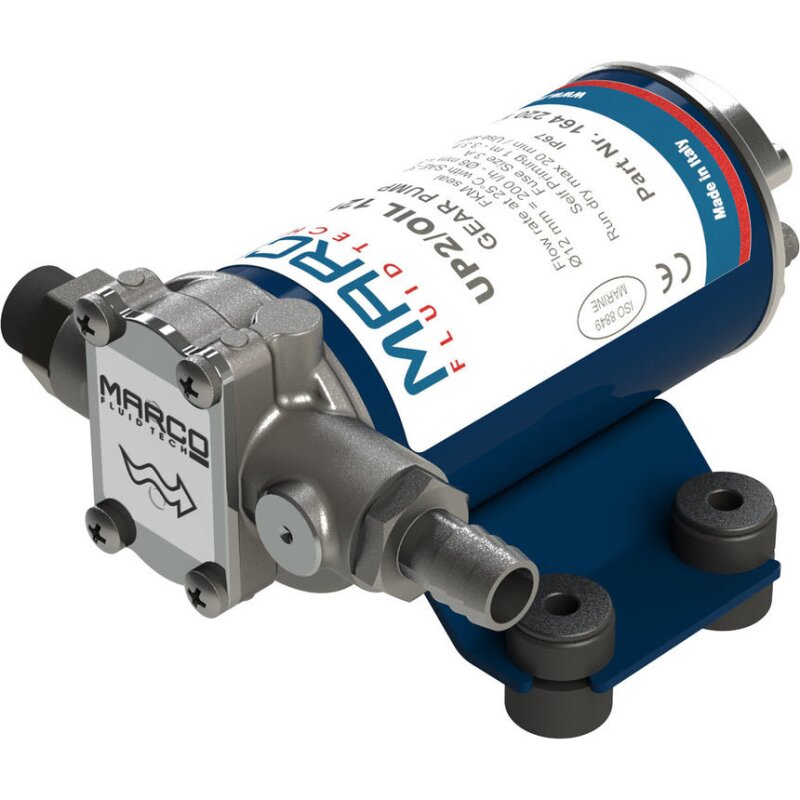

MARCO UP2/OIL 24V Self-Priming Gear Pump
The MARCO 16422013 is an electric gear pump from the oil change pump portfolio, designed for transferring oils or viscous liquids. It is self-priming and reversible, and is specified as dry-run safe for demanding service use.
Technical Specifications
Voltage 24V Flow Rate (Free Outlet / No Back Pressure) 3.3 L/min Cut-Off Pressure 1.5 bar Self-Priming Up to 1 m Current Consumption 1.3 A Connection 3/8 inch BSPP (3/8 inch / 9.5 mm) Materials Nickel-plated brass housing; stainless steel shaft; FKM seals; NBR O-rings; bronze gears Dimensions (H x W x L) 126 x 76 x 112 mm Shipping Weight 1.60 kg Brand MARCO Product Portfolio Oil change pumps
Features
- Self-priming up to 1 m
- Dry-run safe
- Reversible operation
- Designed for transferring oils or viscous liquids
Product Details
If you are unsure about material compatibility with the liquid being pumped, confirm compatibility of all wetted materials before putting the pump into operation.
-
