ID
1338992
$ 524.82
1-2 weeks delivery time
-
+
The Marco UP12 self-priming 12V electric gear pump is designed for transferring diesel and antifreeze at 36 L/min (free discharge/without back pressure) with a listed cut-off pressure of 2 bar and self-priming up to 4 m. It has a 1/2-inch outlet/connection (listed as 1/2 inch and 1/2 inch BSPP) and is built with bronze gears, a nickel-plated brass body/housing, and a stainless steel shaft/spindle, plus FKM seals and an NBR O-ring. Electrical data includes 360 W power and current consumption listed as 14 A and 28 A; weight is listed as 4.5 kg with a shipping weight of 5.50 kg, and dimensions are provided as 113 x 197 x 233 mm and also as 233 x 113 x 197 mm.
- Description
- Ask a Question
-

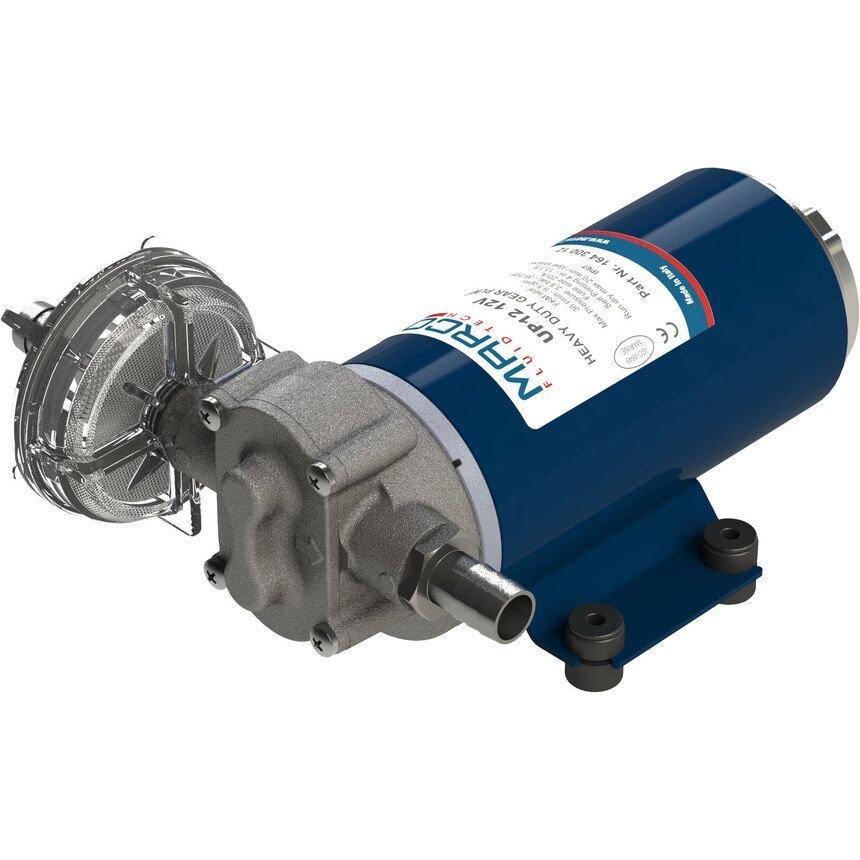

Marco UP12 12V Self-Priming Diesel and Antifreeze Gear Pump
The Marco 16430012 UP12 is a compact, self-priming electric gear pump for transferring diesel and antifreeze. Its gear-driven design and specified construction materials support continuous, reliable operation, with self-priming capability up to the stated lift.
Features
- Self-priming electric gear pump
- For diesel and antifreeze transfer
- Flow rate of 36 liters per minute (free discharge/without back pressure)
- Self-priming up to 4 m
- Dry-run safe
- Reversible
- Bronze gears
- Nickel-plated brass body/housing
- Stainless steel shaft/spindle
- FKM seals and NBR O-ring
Technical Specifications
Brand Marco Model / Series UP12 Product Portfolio Diesel transfer pumps Voltage 12 V Power 360 W Engine Power 360 W Current Consumption (Listed) 14 A Current Consumption (Also Listed) 28 A Flow Rate 36 L/min Cut-Off Pressure 2 bar Maximum Delivery Head 4 m Outlet Diameter 1/2 inch Connection 1/2 inch (12.7 mm) Connection (Also Listed) 1/2 inch BSPP Dimensions (Height x Width x Length) 113 x 197 x 233 mm Dimensions (Also Listed) 233 x 113 x 197 mm Weight 4.5 kg Shipping Weight 5.50 kg Barcode 8022278606656
Product Details
- Materials (as listed): nickel-plated brass body/housing, bronze gears, stainless steel shaft/spindle
- Sealing materials (as listed): FKM seals, NBR O-ring
- Intended liquids: diesel and antifreeze
-
