ID
1338993
$ 524.82
1-2 weeks delivery time
-
+
The Marco UP12 self-priming electric gear pump is designed for transferring diesel and antifreeze with a rated flow of 36 L/min and a listed cut-off pressure of 2 bar on 24 V. It features bronze gears, a nickel-plated brass body/housing, and a stainless steel shaft/spindle, with FKM seals and an NBR O-ring. Supplied connection information includes 1/2 inch (12.7 mm) and 1/2 inch BSPP; additional listed data includes 360 W power, maximum delivery head/self-priming up to 4 m, consumption 8 A and current consumption 14 A, dimensions 233 x 113 x 197 mm, weight 4.5 kg, and shipping weight 5.50 kg.
- Description
- Ask a Question
-

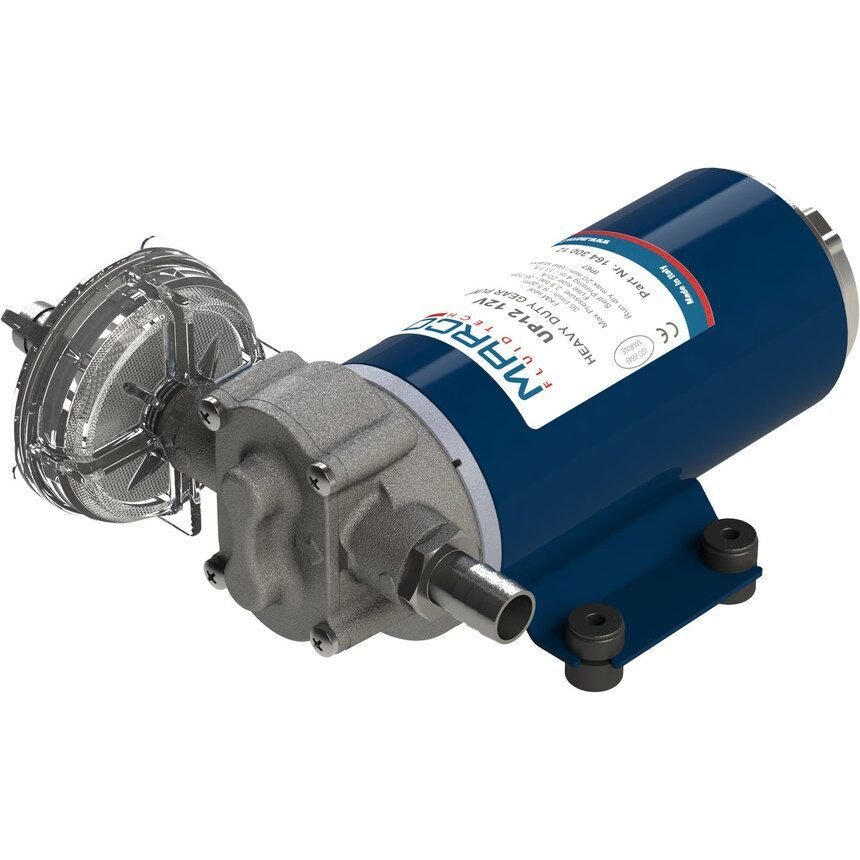

UP12 Self-Priming Diesel and Antifreeze Gear Pump
The Marco 16430013 is a self-priming electric gear pump for efficient transfer of diesel and antifreeze. It is built for professional use with a compact, durable construction and corrosion-resistant materials in the wetted components.
Features
- Self-priming electric pump
- Suitable for diesel and antifreeze
- Bronze gears
- Nickel-plated brass body/housing
- Stainless steel shaft/spindle
- Dry-run safe
- Reversible
Technical Specifications
Model UP12 Voltage 24 V Flow Rate 36 L/min (free discharge / without back pressure) Cut-Off Pressure 2 bar Power 360 W Consumption 8 A Current Consumption 14 A Maximum Delivery Head 4 m Self-Priming Up to 4 m Connections 1/2 inch (12.7 mm) Connection (Alternate Listing) 1/2 inch BSPP Materials Nickel-plated brass body/housing; bronze gears; stainless steel shaft/spindle; FKM seals; NBR O-ring Dimensions (H x W x L) 233 x 113 x 197 mm Weight 4.5 kg Shipping Weight 5.50 kg Product Portfolio Diesel transfer pumps
Product Details
If there are uncertainties regarding material compatibility between the pump materials and the pumped liquid, verify compatibility before putting the pump into operation.
-
