The Marco UP12-P gear pump (part number 16430212) is a 12V pump rated for 36 L/min (free discharge) with a 2 bar cut-off pressure and self-priming up to 3 m. It uses a 1/2 inch BSPP connection (12.7 mm) and draws 28 A. The unit features a nickel-plated brass housing, stainless steel spindle, FKM seal, and PEEK helical gears, with dimensions of 233 x 113 x 197 mm (H x W x L) and a shipping weight of 5.30 kg.
- Description
- Ask a Question
-

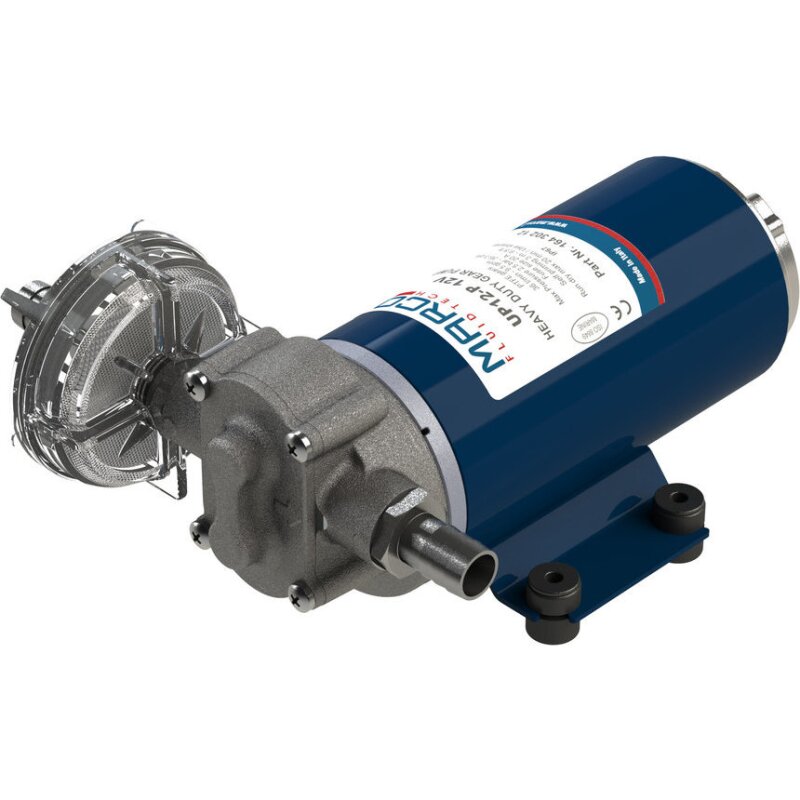

Marco UP12-P 12V Gear Pump Assembly
The Marco UP12-P gear pump (part number 16430212) is a self-priming electric pump designed for water pressure system applications. Built with corrosion-resistant materials and helical gears, it is intended for reliable liquid transfer where a compact 12V pump is required.
Technical Specifications
Flow Rate (Free Discharge) 36 L/min Cut-Off Pressure 2 bar Voltage 12V Current Consumption 28 A Self-Priming Up to 3 m Connection 1/2 inch BSPP (12.7 mm) Dimensions (H x W x L) 233 x 113 x 197 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM Gear Type PEEK helical gears Shipping Weight 5.30 kg Product Portfolio Water Pressure Systems Brand MARCO
Features
- 36 L/min flow rate with free discharge (without back pressure)
- Self-priming capability up to 3 m
- 1/2 inch BSPP port size (12.7 mm)
- Nickel-plated brass housing with stainless steel spindle and FKM seal
- Electric pump design with PEEK helical gears
Product Details
If there are uncertainties regarding material compatibility with the pumped medium, verify compatibility of all wetted materials before putting the pump into operation.
-
