The MARCO UP2/OIL 12V gear pump is an electric, self-priming unit for transferring oils or viscous liquids, rated for 3.3 L/min (free outlet/without back pressure) with a cut-off pressure of 1.5 bar. It is dry-run safe, reversible, and self-priming up to 1 m, with 3/8 inch BSPP connection and 3/8 inch (9.5 mm) connections listed in the scope of delivery. The pump draws 2.5 A and uses a nickel-plated brass housing, stainless steel spindle, FKM seals, and NBR O-rings; dimensions are 126 x 76 x 112 mm with a shipping weight of 1.60 kg.
- Description
- Ask a Question
-

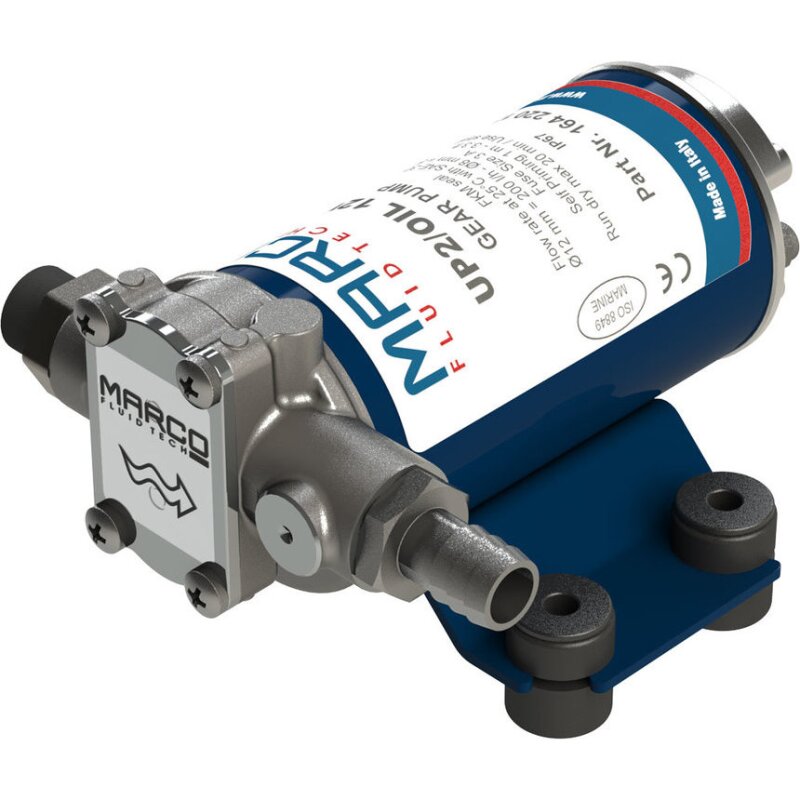

UP2/OIL 12V Reversible Gear Pump for Oil Transfer
The MARCO 16422012 UP2/OIL is a compact electric gear pump designed for transferring oils or other viscous liquids. It is self-priming and reversible, and is specified as dry-run safe for demanding service tasks such as oil change applications.
Technical Specifications
Brand MARCO Product Portfolio Oil change pumps Voltage 12V Output 3.3 L/min Flow Condition Free outlet / without back pressure Cut-Off Pressure 1.5 bar Self-Priming Up to 1 m Current Consumption 2.5 A Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Dimensions (H x W x L) 126 x 76 x 112 mm Shipping Weight 1.60 kg Housing Material Nickel-plated brass Spindle Material Stainless steel Seals FKM O-Rings NBR Gears Bronze
Features
- Self-priming gear pump (up to 1 m)
- Dry-run safe
- Reversible operation
- Designed for oils or viscous liquids
Product Details
Construction includes a nickel-plated brass housing, stainless steel spindle, FKM seals, and NBR O-rings. Verify material compatibility with the pumped liquid before operation.
-
