ID
1353901
$ 537.86
1-2 weeks delivery time
-
+
The MARCO UP12/OIL gear pump is a 12V unit rated for 15 L/min (free outlet/without back pressure) with a 3 bar cut-off pressure. It is self-priming up to 2 m, dry-run safe, and reversible, with 1/2 inch connections (12.7 mm) and a 1/2 inch BSPP port. The pump draws 11 A and uses a nickel-plated brass housing, stainless steel spindle, FKM seals, and NBR O-rings; dimensions are 222 x 111 x 152 mm and shipping weight is 5.50 kg.
- Description
- Ask a Question
-

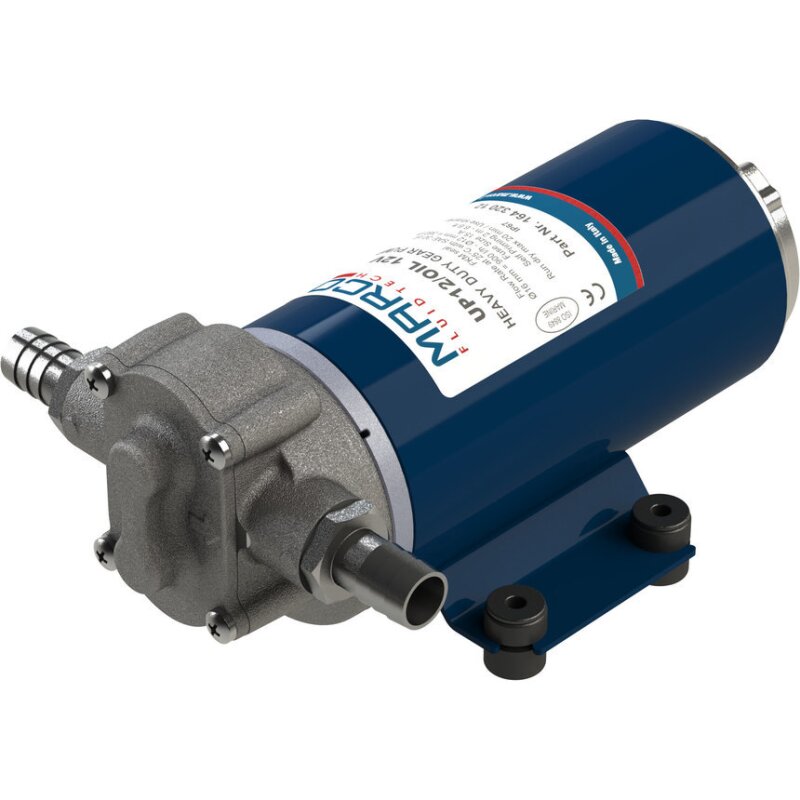

MARCO UP12/OIL 12V Gear Pump for Oil Transfer
The MARCO 16432012 UP12/OIL is an electric, self-priming gear pump with bronze gears, designed for transferring oils or other viscous liquids. It supports reversible operation and is specified as dry-run safe for added operational flexibility.
Technical Specifications
Voltage 12V Flow Rate 15 l/min (free outlet/without back pressure) Cut-Off Pressure 3 bar Current Consumption 11 A Self-Priming Up to 2 m Connection (Included / Connections) 1/2 inch (12.7 mm) Connection (Port) 1/2 inch BSPP Dimensions (H x W x L) 222 x 111 x 152 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM O-Ring Material NBR Gear Material Bronze Shipping Weight 5.50 kg Product Portfolio Oil change pumps Brand MARCO
Features
- Reversible operation
- Self-priming up to 2 m
- Dry-run safe
- Designed for transferring oils or viscous liquids
Product Details
- Nickel-plated brass housing with stainless steel spindle
- FKM seals and NBR O-rings
-
