ID
1353903
$ 541.12
1-2 weeks delivery time
-
+
The MARCO UP12-LO 12V gear pump is a self-priming, reversible transfer unit rated for 26 L/min (free discharge) with a 3 bar cut-off pressure. It features a 1/2 inch BSPP connection (12.7 mm), draws 19 A, and is specified as dry-run safe with self-priming up to 3 m. Construction includes a nickel-plated brass housing, stainless steel spindle, bronze gears, FKM seals, and NBR O-rings; dimensions are 222 x 111 x 152 mm and shipping weight is 5.50 kg.
- Description
- Ask a Question
-

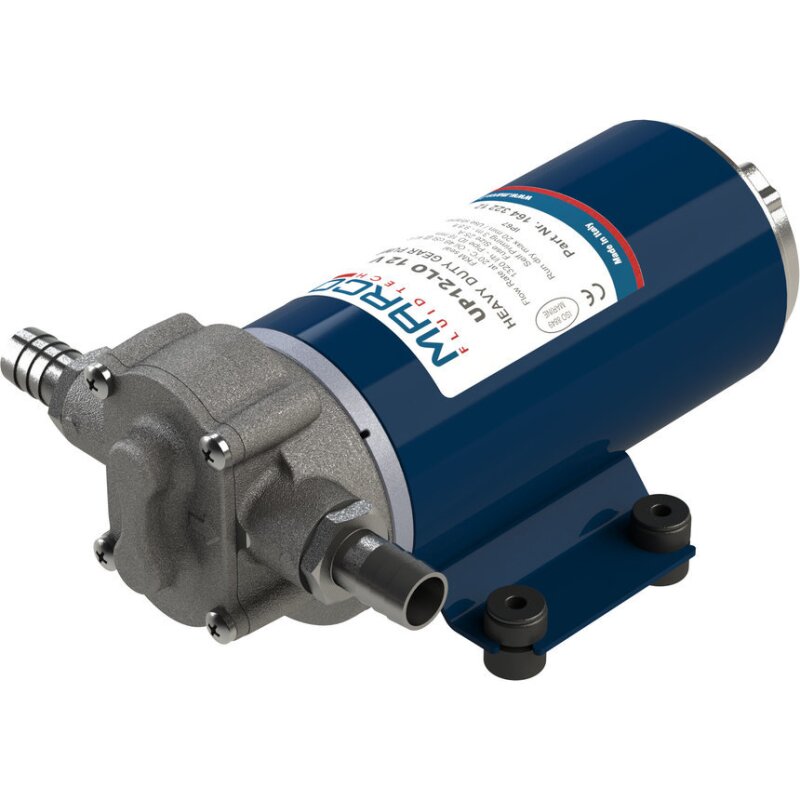

UP12-LO 12V Gear Transfer Pump
The MARCO 16432212 UP12-LO is an electric gear pump designed for transferring oils or viscous liquids. It is self-priming and reversible, and includes robust internal materials intended for demanding fluid transfer duties.
Technical Specifications
Type Gear pump Voltage 12V Output 26 L/min Flow Rate Note 26 L/min with free discharge (without back pressure) Cut-Off Pressure 3 bar Self-Priming Up to 3 m Current Consumption 19 A Connection 1/2 inch BSPP Connection Size 1/2 inch (12.7 mm) Dimensions (H x W x L) 222 x 111 x 152 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Gears Bronze gears Seal Material FKM seals O-Rings NBR O-rings Product Portfolio Oil change pumps Shipping Weight 5.50 kg
Features
- Self-priming up to 3 m
- Dry-run safe
- Reversible operation
- Designed for transferring oils or viscous liquids
Product Details
Before putting the pump into operation, verify the compatibility of all pump materials in contact with the pumped liquid.
-
