ID
1353904
$ 541.12
1-2 weeks delivery time
-
+
The MARCO UP12-LO gear pump is a 24V unit rated for 26 L/min (free discharge) with a 3 bar cut-off pressure. It is self-priming up to 3 m, dry-run safe, and reversible, with 1/2 inch (12.7 mm) connections specified as 1/2 inch BSPP. Construction includes a nickel-plated brass housing, stainless steel spindle, FKM seals, and NBR O-rings; current consumption is 11 A, dimensions are 222 x 111 x 152 mm, and shipping weight is 5.50 kg.
- Description
- Ask a Question
-

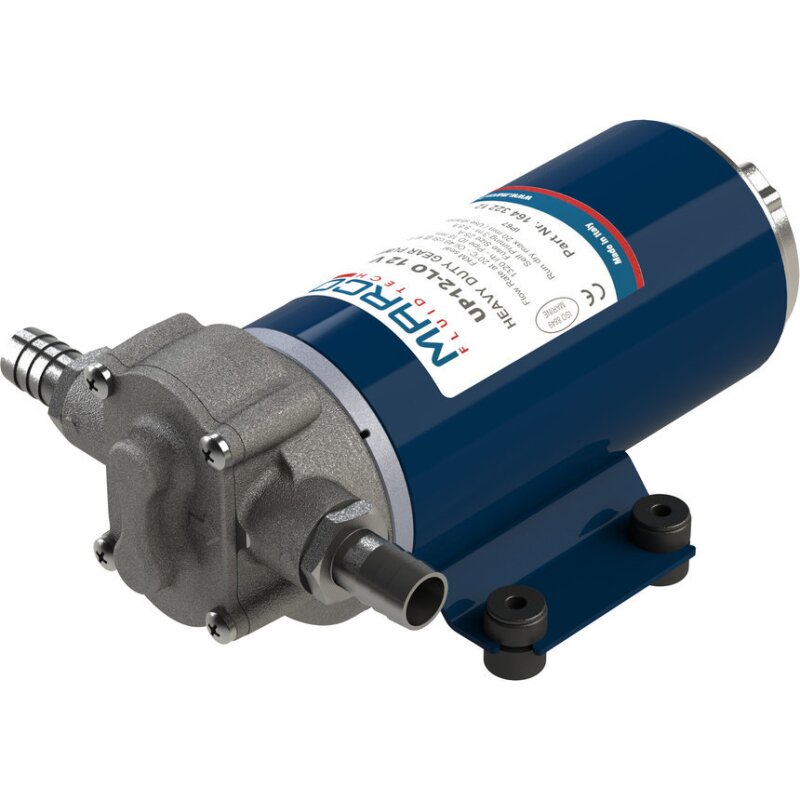

UP12-LO 24V Reversible Gear Pump for Oil Transfer
The MARCO 16432213 is an electric gear pump with bronze gears designed for transferring oils or other viscous liquids. It supports reversible operation, is dry-run safe, and provides self-priming capability for practical installation and service tasks.
Technical Specifications
Brand MARCO Model UP12-LO Product Portfolio Oil change pumps Voltage 24V Current Consumption 11 A Flow Rate 26 L/min (free discharge / without back pressure) Cut-Off Pressure 3 bar Self-Priming Up to 3 m Connection 1/2 inch (12.7 mm); 1/2 inch BSPP Dimensions (H x W x L) 222 x 111 x 152 mm Materials Nickel-plated brass housing; stainless steel spindle; FKM seals; NBR O-rings Shipping Weight 5.50 kg
Features
- Reversible operation
- Dry-run safe
- Self-priming up to 3 m
- Bronze gears, intended for oils or viscous liquids
Product Details
Verify material compatibility between the pumped liquid and the pump components before commissioning.
-
